CLZ Series Marine Industrial Ventilation Fan

CLZ Series Marine Industrial Ventilation Fan

CLZ Series Marine Industrial Ventilation Fan

General:

CLZ Series marine or navy axial fan for marine use (verical type), or simply type CLZ fans, are designed primarily for ventilation of the machinery room and cash compartment. The construction can be delivered for air supply air exhaust, the ocean air containing salt fog or acid vapour capourized from battery occure. Temperature of the air transferred can not exceed 50°C

Construction

1. Type CLZ fan consists of the impeller, Casing, motor,guide cowl, conical diffuser, etc.

2. Casing is made of steel plate of having ample thickness, being composed of an inner cylinder, a shell and a down-stream guide vane. The shell is made in the shape of a cylindrecical duct with flanges for connection of ducts at both ends. The inner cylinder and the shell is connected with the downstream guide vane used to guide the air flow.

3. Motor-Built-in Motor type (to be mounted on the inner cylinder) which is manufactured by the motor factory is specially designed to suit CLZ fan construction, it is totally enclosed, natural cooled, and it is capable of standing salt spray, vibration or shocking. There are type ZZT-U Series DC marine motor (rated voltage 220v) and Y-H series AC marine motor (rated voltage 220/380v)

4. Propeller is made of corrionresistant aluminum alloy (cast), being carefully balanced and mounred directly on the motor shaft extension.

5. The guide cowl installed on the inlet and the conical diffuser installed on the outlet are used to cut the vortex of the air flow, to ensure higher difficiency of the fan. Material: inforced plastics.

6. Finish-The fan are printed and painted with marine painting

 CLZ Series Marine Industrial Ventilation Fan

 Main Poperty Parameters and out line dimensions

CLZ Series Marine Industrial Ventilation Fan

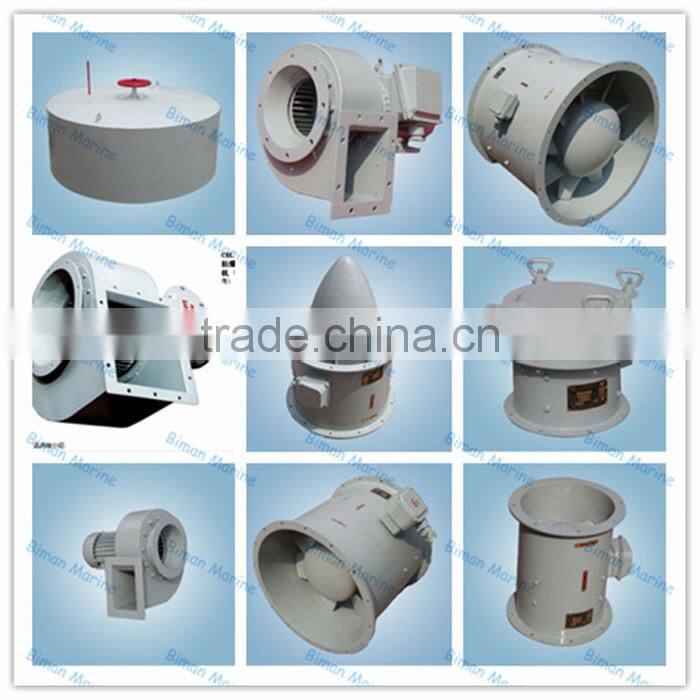

Other Products
