Factory Price 24ft PMSM Motor Big HVLS Ceiling Fan for Sale

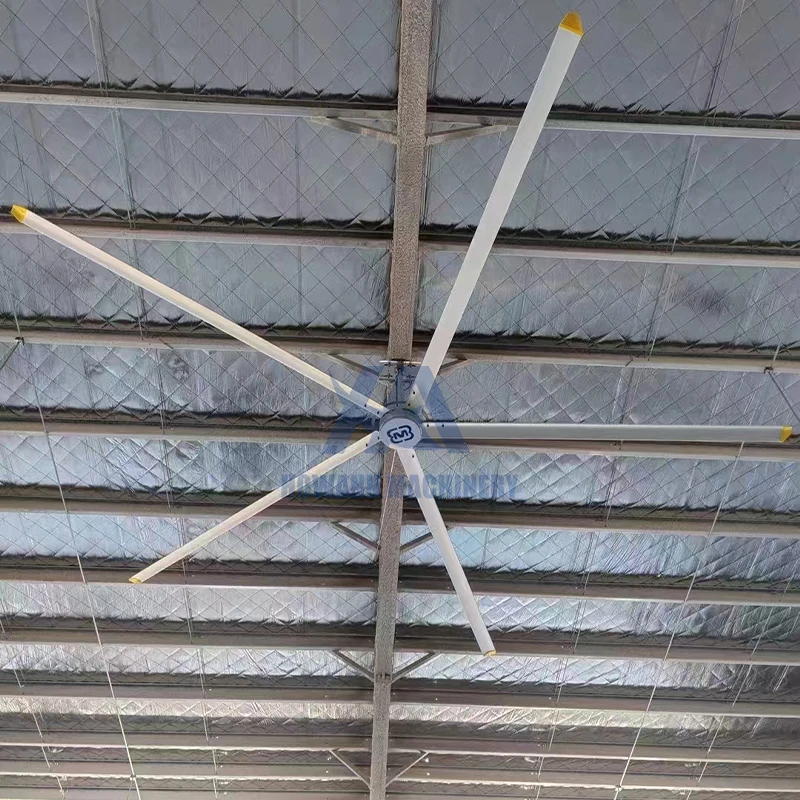

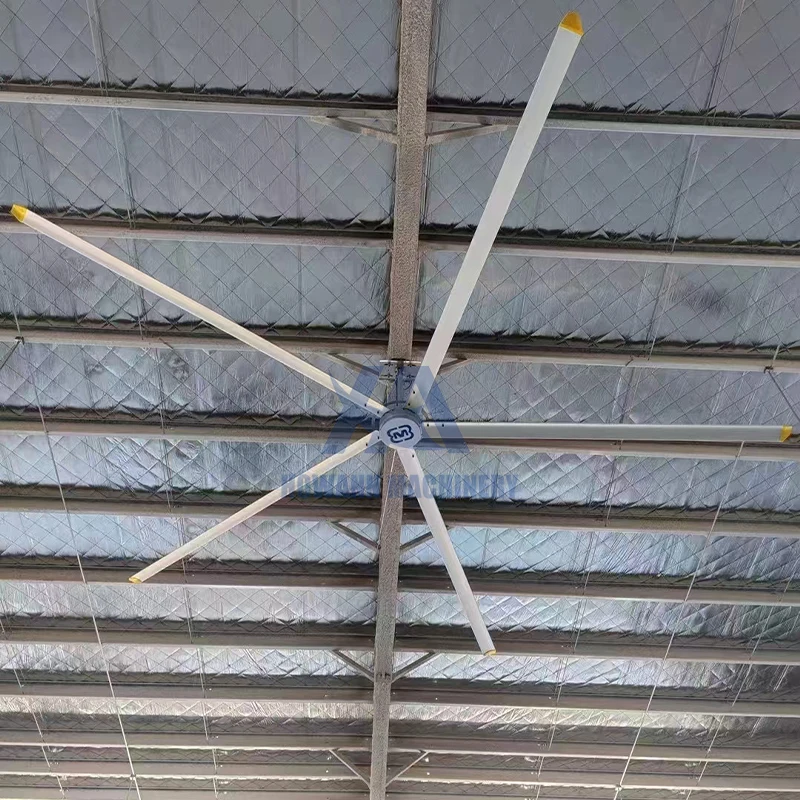

Factory Price 24ft PMSM Motor Big HVLS Ceiling Fan for Sale photo-1

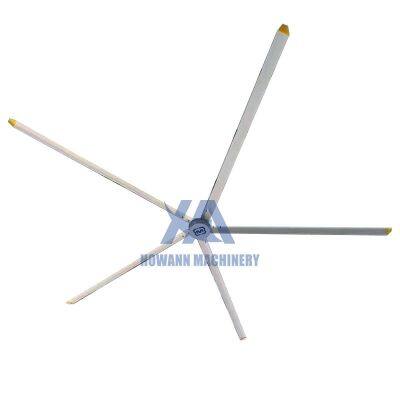

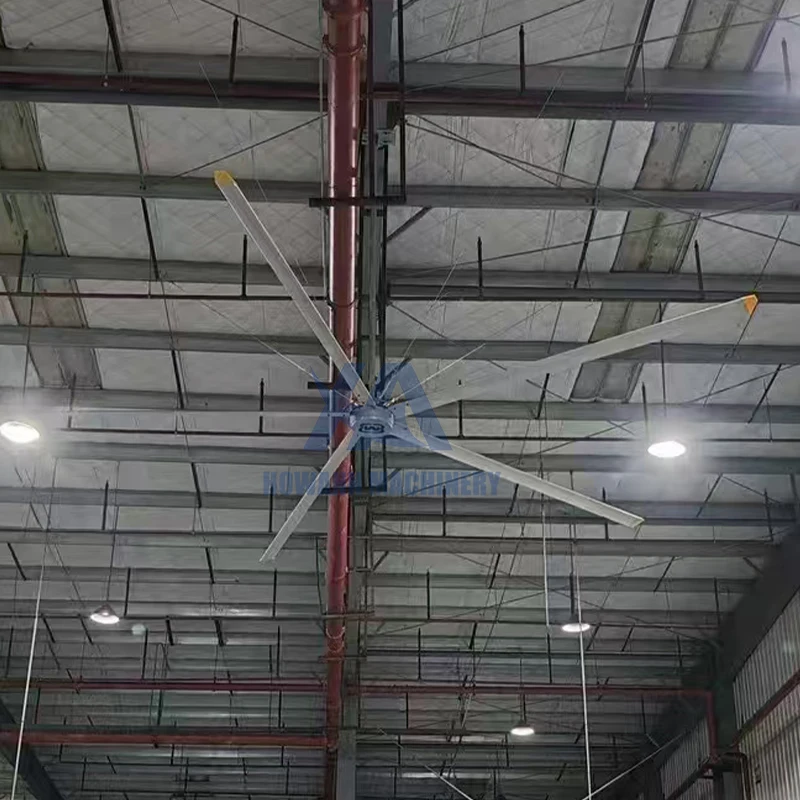

Factory Price 24ft PMSM Motor Big HVLS Ceiling Fan for Sale photo-2

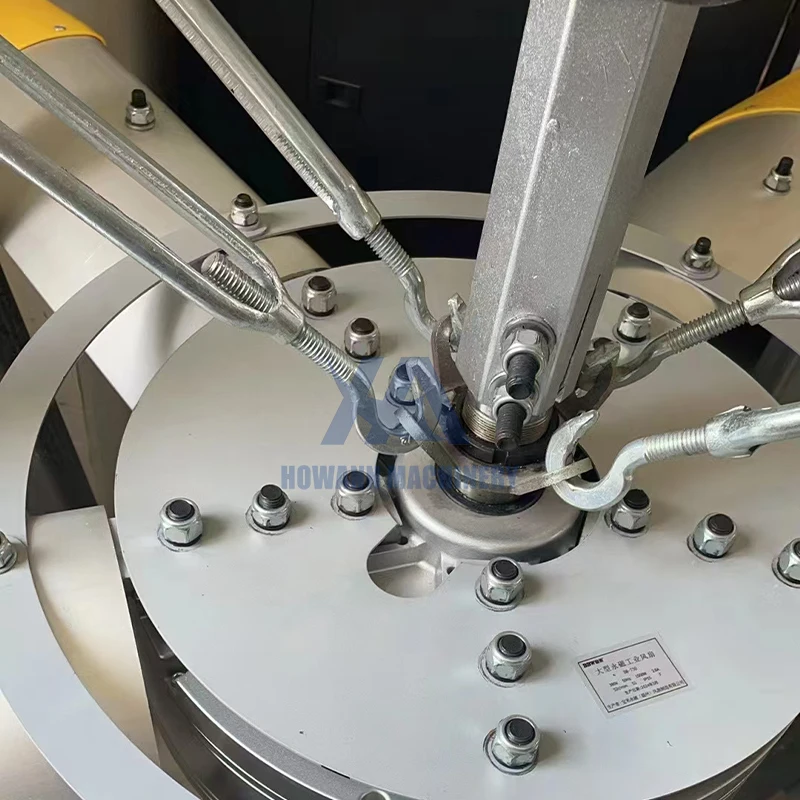

Factory Price 24ft PMSM Motor Big HVLS Ceiling Fan for Sale photo-3

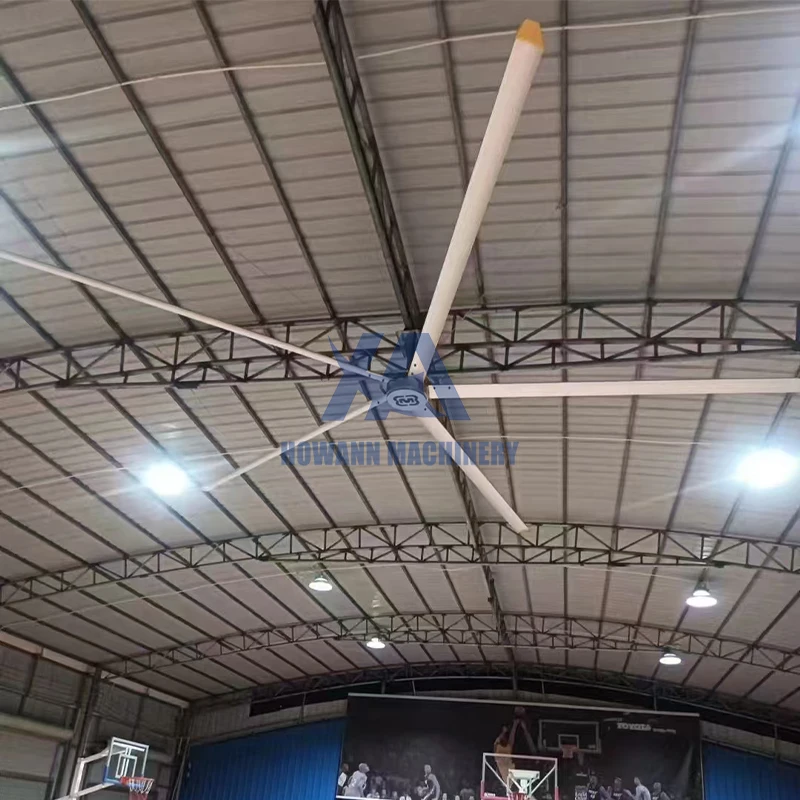

Factory Price 24ft PMSM Motor Big HVLS Ceiling Fan for Sale photo-4

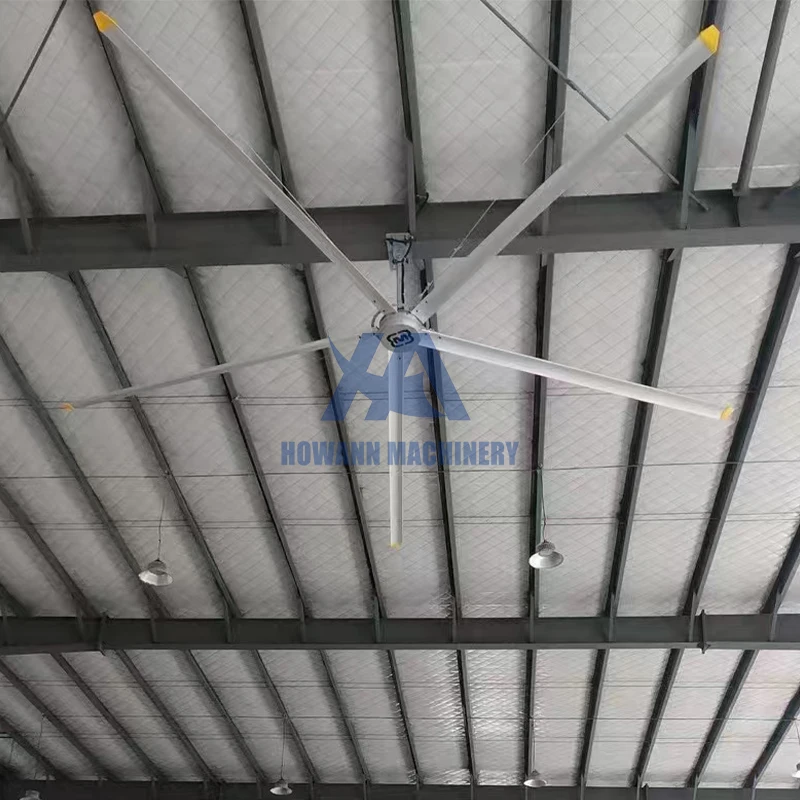

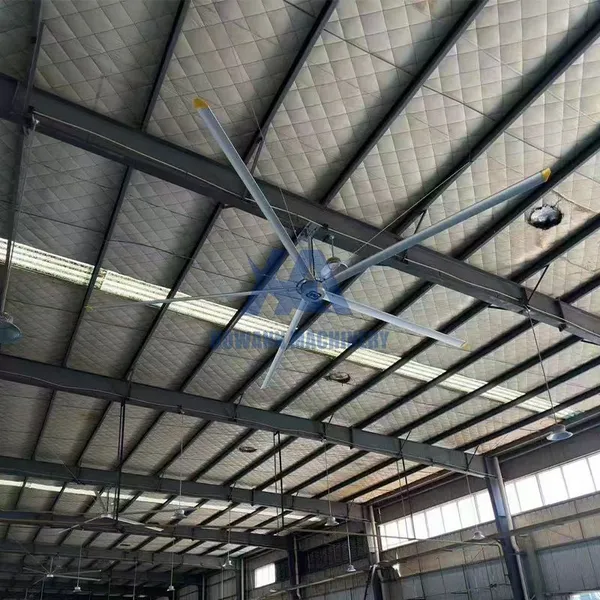

Factory Price 24ft PMSM Motor Big HVLS Ceiling Fan for Sale photo-5
US$ 800 1 Piece
US$ 780 2 Piece
US$ 730 ≥3 Piece
Key Specifications
Get Latest Price
Material:
Metal
Type:
DC Fan
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
7 days
Material Metal
Type DC Fan
Certification CE
Mounting Ceiling Fan
Blade Material Cast Iron
Electric Current Type DC
Transport Package standard
Specification as following
Trademark HOWANN
Origin Zhengzhou,Henan,China
Products Description
PERMANENT MAGNET LARGE FAN
01/LARGE AIR VOLUME COVERAGE
When running, reduce the resistance of electric energy efficient conversion of air energy, for the
downward transmission of a large amount of air, so as to form a 1-3 m airflow layer on the ground, in the open field, the air coverage can reach 1000-1500 square meters.
02/PERSONNEL COOLING
Super large energy-saving fan can produce a similar large area of natural soft air supply, three-dimensional blowing of the human body from all sides promote the evaporation of sweat to take away the body heat, and the human body feels the temperature drop 3-5°
03/DEHUMIDIFICATION AND MOISTURE RESISTANCE
The use of industrial large fans can promote the circulation of air, disperse the smoke and moisture in the air and quickly discharge the room to improve the indoor air quality. lt can also effectively prevent the problem of mold and achieve the effect of safe storage and protection of products.
Product Series
W.Fans Series
Model
W26
W24
W22
W20
W18
W16
W14
W12
WS10
Specification/ Diameter(m)
8
7.3
6.7
6.1
5.5
4.9
4.2
3.6
3.1
Speed (rpm)
10-45
10-55
10-60
10-60
10-70
10-75
10-80
10-90
10-100
Full-load air volume(m³/min)
17676
16130
14804
13800
12152
10826
9280
7954
6849
Coverage area(m²)
2462
2123
1809
1520
1256
1017
804
615
452
Rated power rate(kw)
1.5
1.1
0.75
0.4
Average consumption(kwh)
≤1.2
≤1.0
≤0.7
≤0.4
Noise(dB)
≤38
Power supply (V)
380V/220S
Full-load current(A)
2.8(380V)/4.6(220V)
2.6(380V)/3.0(220V)
2.5
2.0
Weight(kg)
106
101
99
96
95
90
88
86
82
If you are interested in our products, please do not hesitate, you can contact us directly, I believe we will have a good cooperation.

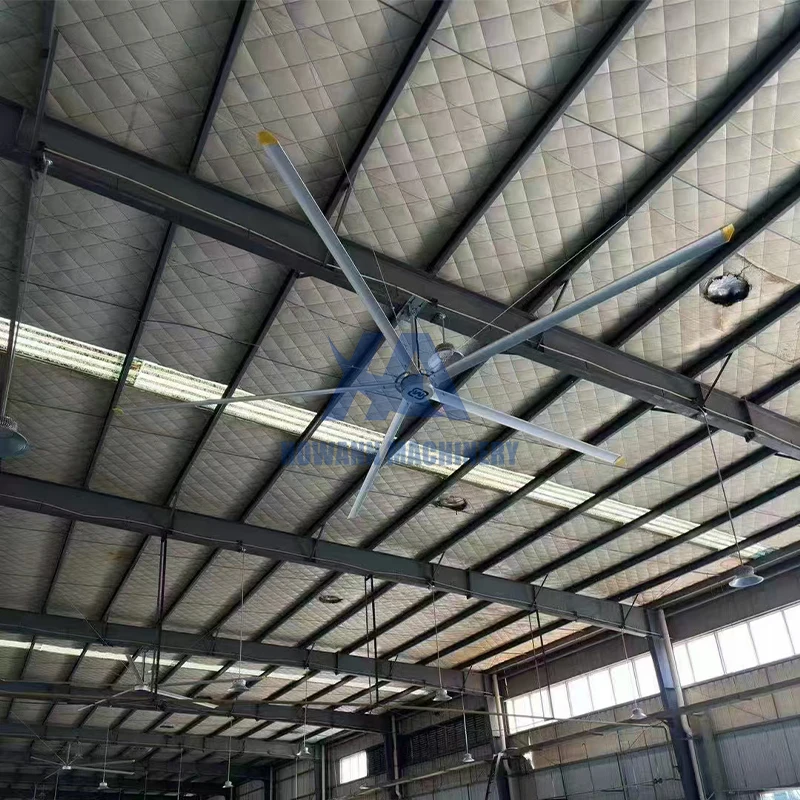

Details Images
Why Choose Us

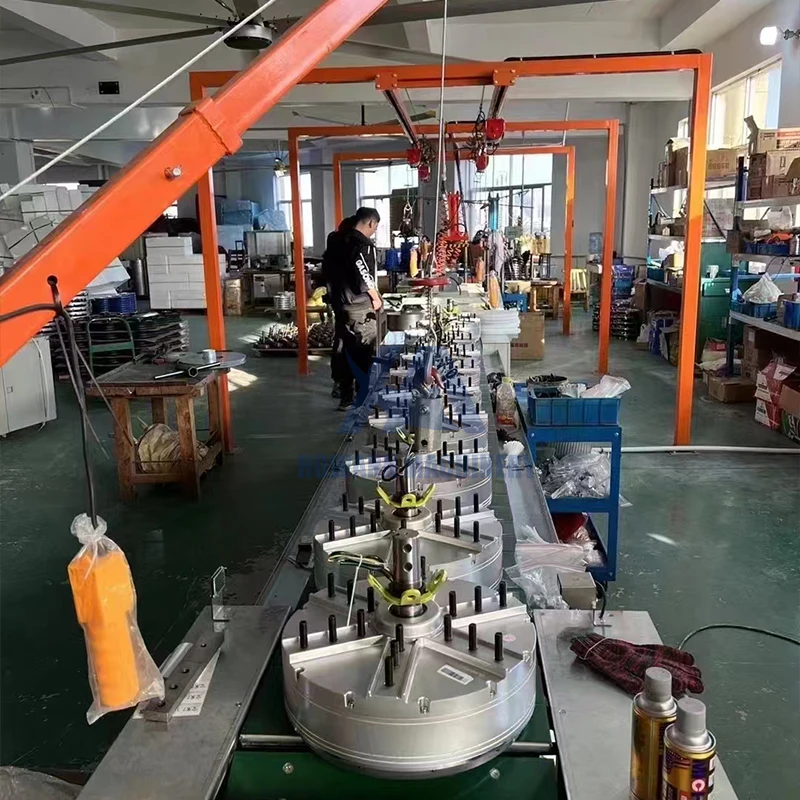

Company Profile

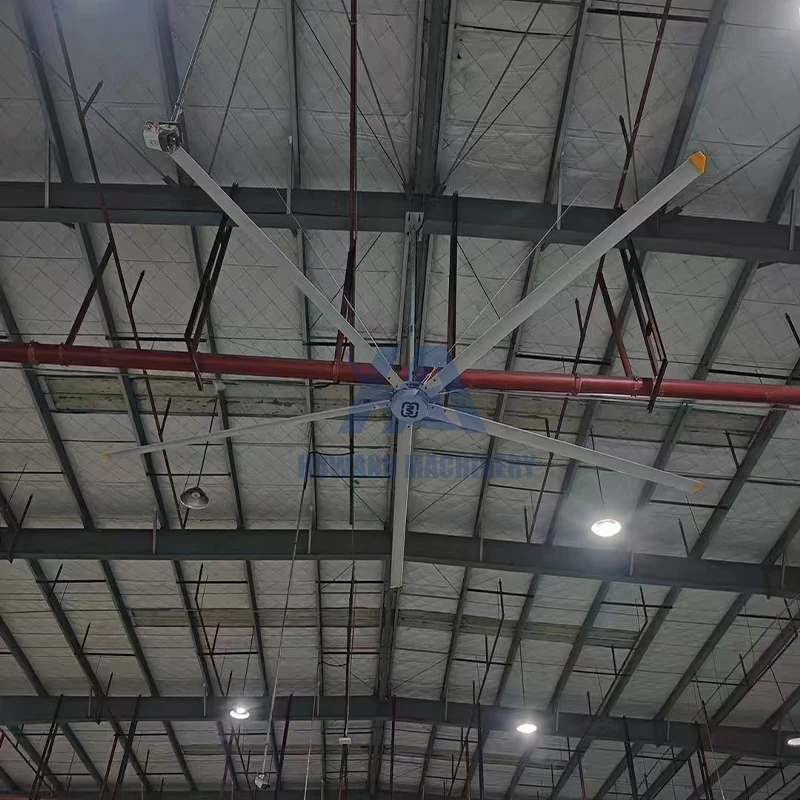

Customer Photos
Shipment & Delivery
1. Packaging: Plastic film wrapping + fumigation-free wooden box
2. Packaging according to your requirements
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. High quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machines need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. What about the quality control?
A4: All raw materials we use are quality controlled.Workers will take care of every detail when handling production and packaging.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones for free.

Q6. Is the packaging form?

A6: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.

Q7. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
