FARFLY FTM Basket Mill for Latex

Name: FARFLY FTM Basket Mill for Latex
Brand: FARFLY
Availability: InStock

FOB Price

US$ 1,800 - 35,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Basket mill
Product Type	Paint	Place of Origin	Shanghai, China
Brand Name	FARFLY	Model Number	FTM
Voltage	220V/380V/440V/460V	Power(W)	2.2~75KW
Dimension(LWH)	customized	Weight	120~4500KG
Certification	CE/UL/ISO9001	Warranty	1~3 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

FARFLY FTM latex prouction basket mill

General information:

FARFLY basekt mill is an ideal equipment to produce inks,coatings,pigment dispersion,with its owned milling technology.Basket Mill is wet milling machine. It combines millling and dispersing to reduce particle size suitable for materials and be suitable for industries having high fineness requirement such as paint, printing ink, pigment, color paste, cosmetic, pesticide, pharmacy etc. The machine has altered traditional production processing by integrating dispersing and milling two processes into one, which reduces production process. No pump nor valve is required. One machine and one container can implement dispersing and milling together, which increases efficiency greatly and reduce materials waste.

Description:

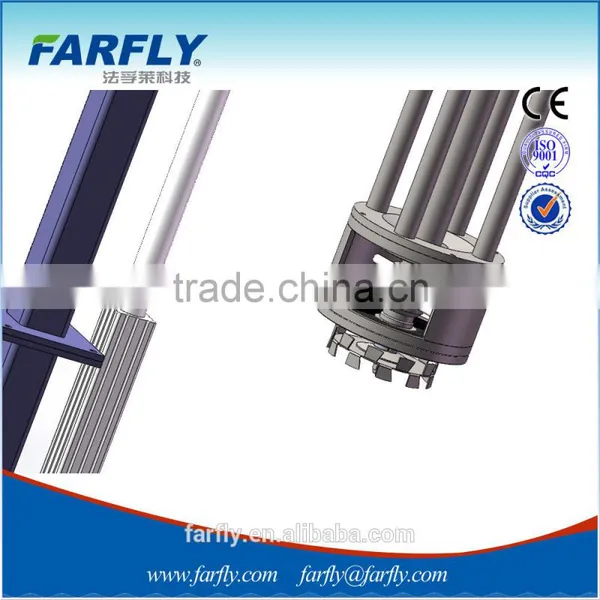

---Liquid circulation system is generated between the material feeding rotor and toothed dispersing disc and grinding beads with high hardness driven by the high-speed rotating rod in the basket result in outstanding milling effect.

---Good milling fineness, high grinding efficiency, even particle distribution and the whole milling process is finished under closed condition.
---Without dead corner, little residue, easy to clean and easy to change color or other products.
----With cover matching with its container to avoid dust flying, materials splashing and volatilization of the solvent products during dispersing. Easy operation, safe and convenient. The cover is mirror polished, easy to clean and nice appearance.

Features:

- Siemens/ABB motor optional

- Siemens/LG/Danfoss speed conventor optional

- Replaceable basket structure, easy to clean

- Easy to maintain and move from one batch to another different product production

- Little grinding media required

- Double wall milling basket and double wall container for cooling an heating is optional

- Excellent mill results

Main technical data:

Model of Motor

380V 50Hz

Model of Speed Control

Frequency speed conventor control

Mode of Lifting

Hydraulic lifting

Material in contact

SSS304/SS316L

Framework

Carbon steel

List of Technical Parameter

Model Number	Capacity L	Power KW	Lifting length mm	Exterior Dimension
FTM50	10-50	1.5	400	1000×500×1200
FTM100	30-100	2.2	550	1200×600×1400
FTM150	40-150	4	800	1400×700×1800
FTM200	50-200	7.5	900	1600×800×1900
FTM250	80-250	11	1000	1800×800×2200
FTM500	200-500	18.5	1100	2200×900×2400
FTM1000	500-1000	22	1200	2700×1100×2800
FTM1500	800-1500	30	1500	2800×1100×2800
FTM2000	800-2000	37	1500	3100×1300×2800
FTM3000	1500-3000	45	1500	3100×1300×2800

More big size type of machine is available upon request.
