Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover

Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover thumbnail-1
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover thumbnail-2
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover thumbnail-3
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover thumbnail-4
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover thumbnail-5
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover photo-1
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover photo-2
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover photo-3
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover photo-4
Farfly Newest Hydraulic Lifting Coating Production Basket Mill With Fixed Cover photo-5
US$ 1,800 - 45,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Basket mill
Product Type:
Paint
Contact Supplier Request Quote Chat Now
Shanghai Farfly Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Basket mill
Product Type Paint
Place of Origin Shanghai, China
Brand Name FARFLY
Model Number FTM Basket Mill
Voltage 220V/380V/440V/460V
Power(W) 2.2~75KW
Dimension(L*W*H) 3*1.6*2.4 M
Weight 120~4500KG
Certification CE/UL/ISO9001
Warranty 1~3 year
After-sales Service Provided Engineers available to service machinery overseas
1. Product Name: Farfly Newest Hydraulic Lifting Coating Production Basket Mill with fixed cover

2. Product descrption
Farfly Newest Hydraulic Lifting Coating Production Basket Mill is an integrated equipment,which combines millling and dispersing to reduce particle size for paint,coatings,inks and pigment dispersions applications.The basket mill integrates high speed dissolving and pump wheels,a very narrow particle size distribution can be achieved in this machine.

The machine has altered traditional production processing by integrating dispersing and milling two processes into one, which reduces production process. No pump nor valve is required. One machine and one container can implement dispersing and milling together, which increases efficiency greatly and reduce materials waste.


3. Advantage of Farfly Newest Hydraulic Lifting Coating Production Basket Mill:

-  Siemens/ABB motor optional

-  Siemens/LG/Danfoss speed conventor optional

-  Replaceable basket structure, easy to clean

-  Easy to maintain and move from one batch to another different product production

-  Little grinding media required

-  Double wall milling basket and double wall container for cooling an heating is optional

-  Excellent mill results



4. Application Area:

Newest Coating Production Basket Mill is wet milling machine. It is suitable for industries having high fineness requirement such as paint, printing ink, pigment, color paste, cosmetic, pesticide, pharmacy etc



5. Main technical data:

Model of Motor

 380V 50Hz

Model of Speed Control

Frequency speed conventor control

Mode of Lifting

Hydraulic lifting

Material in contact

SSS304/SS316L

Framework

Carbon steel

List of Technical Parameter

Model Number

Capacity L

Power KW

Lifting length mm

Exterior Dimension

FTM50

10-50

1.5

400

1000×500×1200

FTM100

30-100

2.2

550

1200×600×1400

FTM150

40-150

4

800

1400×700×1800

FTM200

50-200

7.5

900

1600×800×1900

FTM250

80-250

11

1000

1800×800×2200

FTM500

200-500

18.5

1100

2200×900×2400

FTM1000

500-1000

22

1200

2700×1100×2800

FTM1500

800-1500

30

1500

2800×1100×2800

FTM2000

800-2000

37

1500

3100×1300×2800

FTM3000

1500-3000

45

1500

3100×1300×2800
More big size type of machine is available upon request.

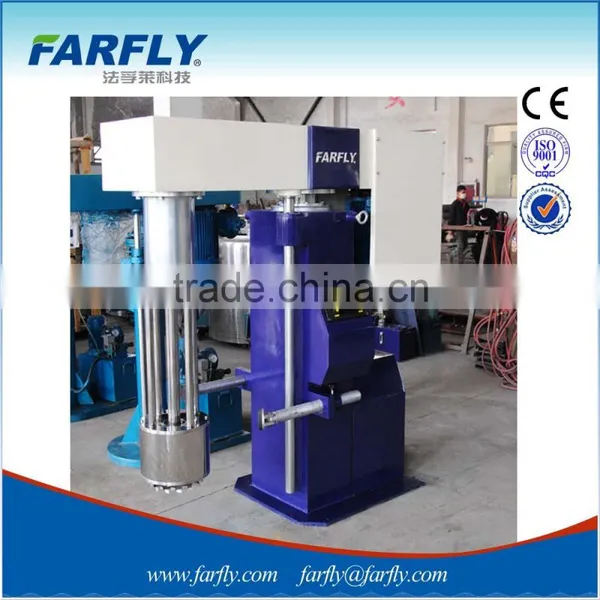

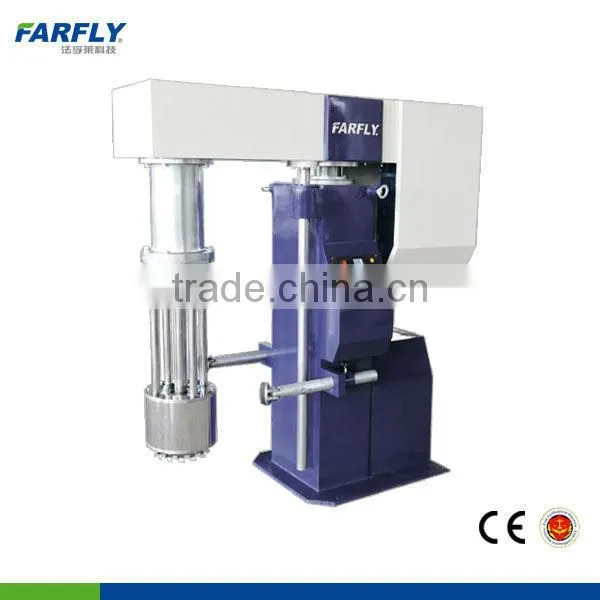

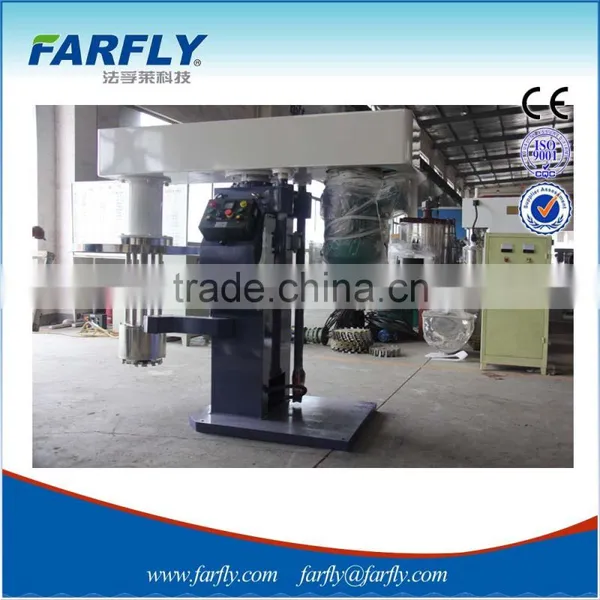

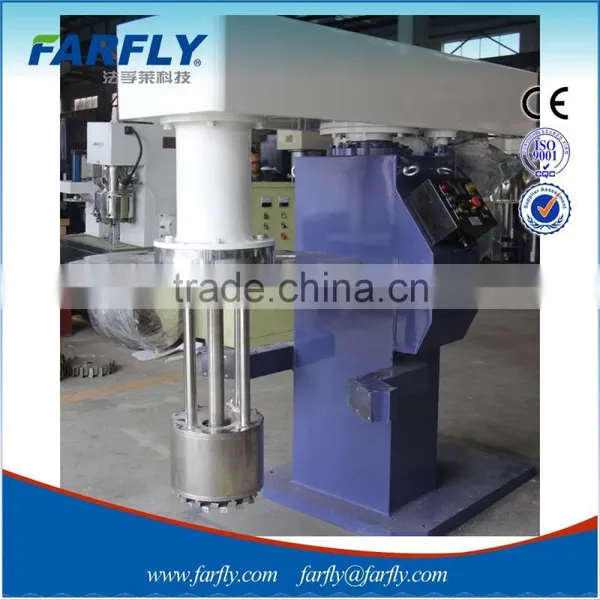

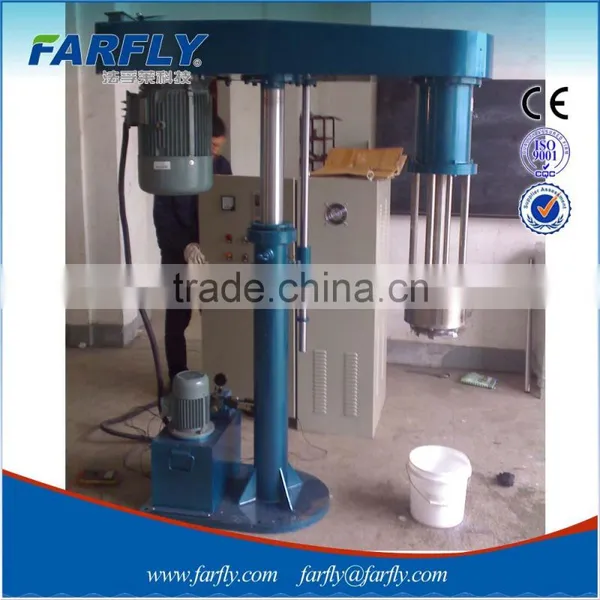

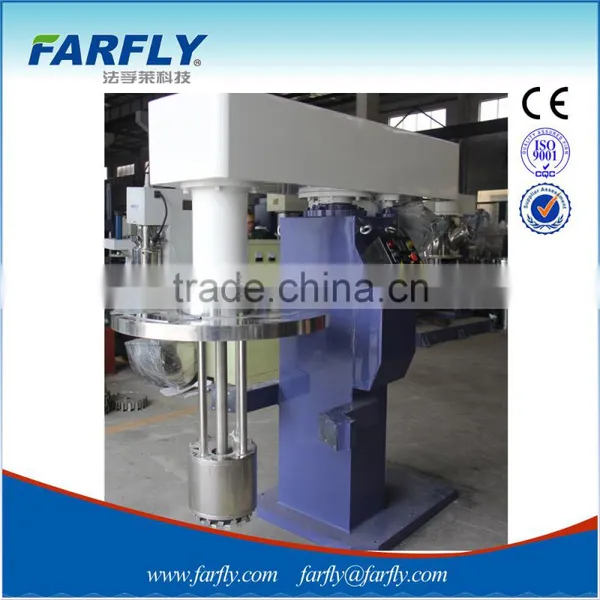

 6. Photos of Farfly Newest Hydraulic Lifting Coating Production Basket Mill for reference





Farfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed Cover

Farfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed Cover





Farfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed CoverFarfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed CoverFarfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed CoverFarfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed CoverFarfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed CoverFarfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed CoverFarfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed CoverFarfly Newest Hydraulic Lifting Coating Production Basket Mill with Fixed Cover
