Automatic Gypsum Board Production Line/machine

Product Application
Paper faced gypsum board production line can produce high quality paper faced gypsum board .With less investment and stable performace, the gypsum board is high quality, very light in weight, but strong.
According to our more than 28 years experience and surveys from the customers., we always provide advanced technology content, high reliability ,lower operation and qualified decorate technology scheme for gypsum board film laminating machine

Brief Introduction
1. Capacity: 1 million m2/year-30 million m2/year
2. Fuel: Coal, natural gas, heavy oil and diesel oil
3.Raw material: Gypsum powder, modified starch, protective paper, foaming agent, water, etc
4. Dimension: Thickness: 7mm-22mm, Width: 1200mm/1220mm, Length :2400mm-3600mm
5.Automation: Semi degree automatic and high degree automatic
6. Type: a) Common paper surface b) Fireproof paper surface c) Waterproof paper surface

Production Line Flow Chart

Main Features
1. high quality, very light in weight, but strong
2. less investment, stable performance
3. more working plants & ready machines & famous experts

	Machine Parts Name: Paper supply system Usage:Provides paper to the gypsum board. Composition: The paper roll lifting machine, uncoiling device, pneumatic paper receiving machine, paper storing machine, paper pulling machine, paper guiding machine, scoring machine and automatic correction machine.

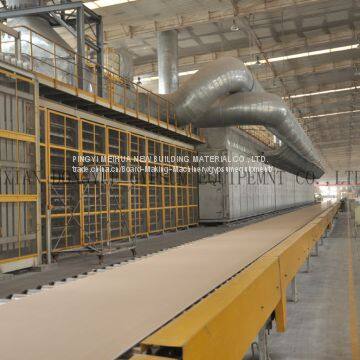

Machine parts Name: Forming and solidification system Usage:To form the semi-finished gypsum board products from the gypsum powder slurry. Composition: board forming machine, vibrating forming machine, automatic vertical edge devices, frequency control forming belt, angle edge belt, up into device, belt deviation rectification device, etc

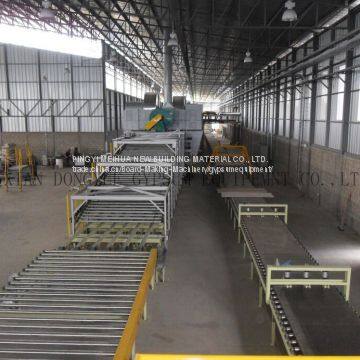

	Machine Parts Name: Automatic cutting system Cutting the solidified plate on molding belt machine into required length. Composition: accelerating device, measuring device, servo cutting machine, PLC control system, etc.

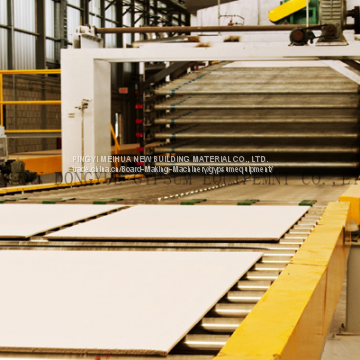

Main Features Name: Transit system Horizontally transport the cut plate to distributor. Composition: accelerating device, horizontal transport device, plate turnover device, servo motor control system, etc.
