advanced low price raymond grinding mill for sale
Brief Introduction
YF158 grinding mill is widely used in construction system,paint,paper,plastic,environmental protection,feed,pesticide,glass,ceram and phosphatic fertilizer
Grinding material: Moh’s hardness scale less than 5, moisture less than 10%,noncombustible and non-explosive.for example: calcium carbonate,calcite,talc,barite,manganolite,chrome ore,gypsum,graphite,carbon and bentonite.
the whole series of set is widely used , easy operation, easy maintenance,stable property,highly cost-effective, it’s the good set in the grinding area

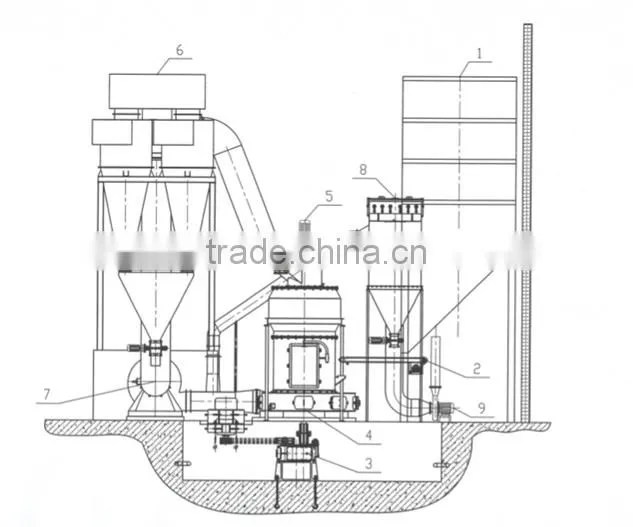

Working process and principle of grinding mill
Working process : material pin, belt feeder, main reduction driver,main unit ,classifier, pipe ,
double cyclone collector,high-pressure air blower,bag collector,electric control cabinet as following,
1.Material pin,2. Belt feeder, 3.Main reduction driver, 4.Mainunit ,5.Classifier,
6.Double cyclone collector, 7.High-pressure air blower, 8.Bagcollector, 9.Induced draft fan
Performance and Advantages
High Capacity:special cambered shovel design, the cambered shovel can scoop up the material in vertical plane to makes the rollers and rings worn equally, at the same time, increases the working face and capacity.
Good quality: cage or leaf disc classifier,dual configuration options, special gas seal device, effective to
prevent coarse powder.
Renewable Material:Adopt separate shovel, you only need to change the shovel edge, the edge use high wearable alloy material which improve the use life, reduce the cost.
Reduction box Light-Oil lubrication : adopt inner L. O. pumps, so the main shafe bearing and bevel gear can be lubricated without an additional lubrication system. Reduce the resistance and temperature, improve the use life of bearing.
Reduce Resistance;adopt low resistance arc air channel, the tangential air goes into air channel easily because there is small resistance. And the inner outlet is very good for material to spread around and avoid material jammed.
High collect efficiency: separated cyclone with a separated structure between inner core and mixed air flow, it can be improve the classifying efficiency and precision.
Specifications

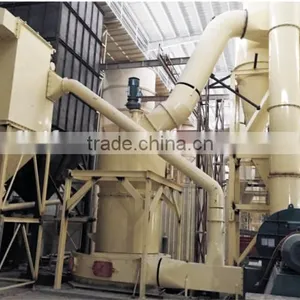

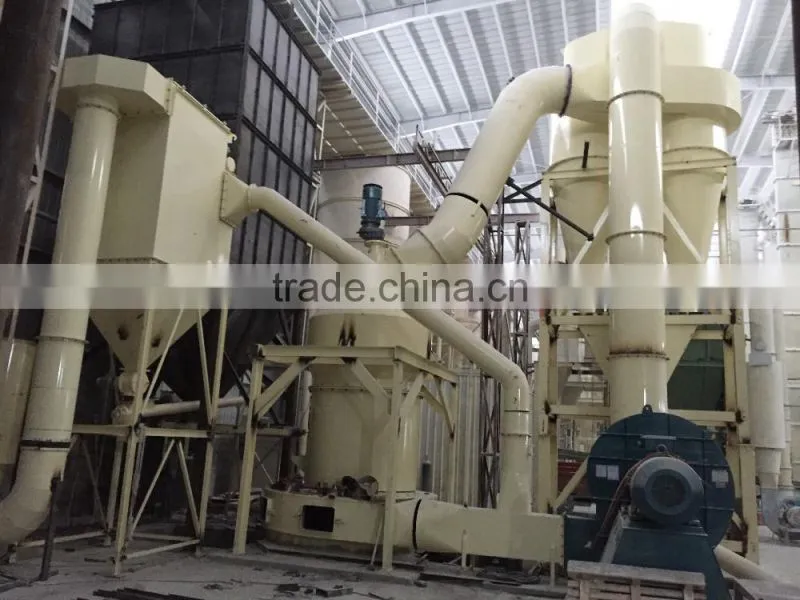

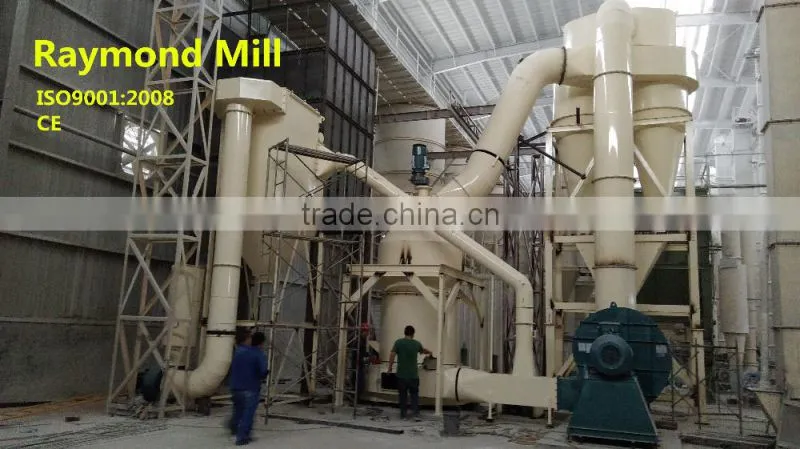

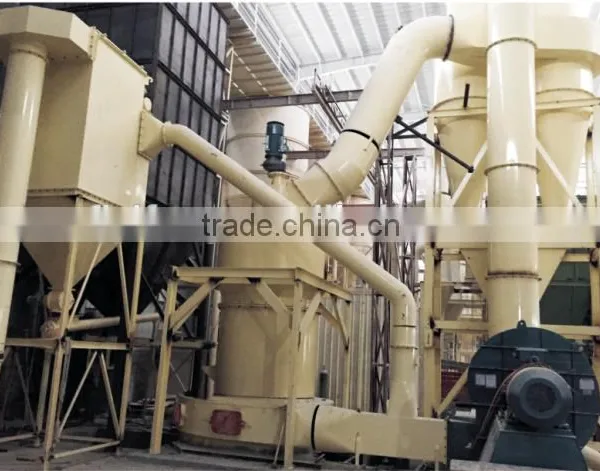

Customer Sites
