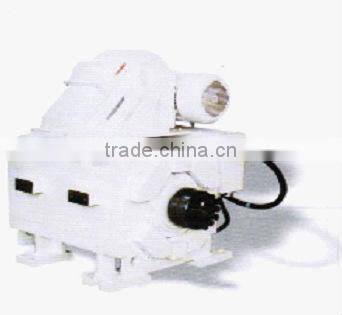

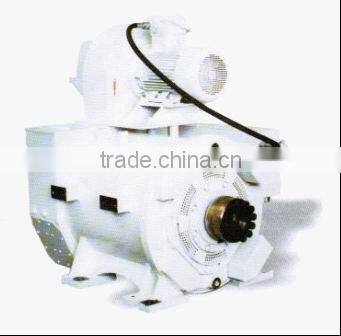

Drilling AC Rig Motor With High Power

Name: Drilling AC Rig Motor With High Power
Brand: LMMGROUP
SKU: 138435133
Availability: InStock

US$ 100 - 100,000 MOQ: 1 Set

Key Specifications

Brand Name:

LMMGROUP

Model Number:

Type:

Asynchronous Motor

Liaoning Mineral & Metallurgy Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Brand Name LMMGROUP

Model Number YJ

Type Asynchronous Motor

Frequency 50.5

Output Power 1100

Protect Feature Explosion-proof

Phase Three-phase

Certification CE

AC Voltage Other

Efficiency IE 4

Specifications

AC variable frequency asynchronous motor used for oil drilling motor with high power and high torque

AC variable frequency asynchronous motor used for oil drilling motor with high power and high torq,has been widly used in oil drilling ,

Some type as follows:

MOTOR TYPE	RATED POWER (KW)	RATED VOLTAGE (V)	RATED CURRENT (I)	RATED ROTATED SPEED (r/min)	RATED FREQUENCY (Hz)	RATED TORQUE (N*M)	CONSTANT POWER HIGHEST ROTATED SPEED (R/MIN)	POWER FACTOR	RATED efficiency	insulation grade	Weight (KG)
YJ1 3	800	550	1040	660	33.5	11575	1060	0.86	0.95	200	3100
YJ13A	800	550	1040	660	33.5	11575	1060	0.86	0.95	200	3100
YJ13B	700	600	797	661	33	10108	1200	0.86	0.95	200	2900
YJ13D	550	690	574	794	40	6615	1984	0.89	0.95	200
YJ13E	450	400	782	794	40	5412	1981	0.84	0.94	200
YJ13E1	600	690	618	794	40	7217	1990	0.83	0.95	200	3090
YJ13F	450	400	782	794	40	5412	1981	0.84	0.94	200
YJ13G	1200	690	1193	1001	50	11443	1506	0.88	0.95	200	3200
YJ13H	400	400	710	400	20.5	9633	1200	0.90	0.90	200
YJ35AH	550	690	574	794	40.6	6615	1984	0.85	0.96	200	3000
YJ35H	550	690	574	794	40	6615	1984	0.85	0.96	200	3000
