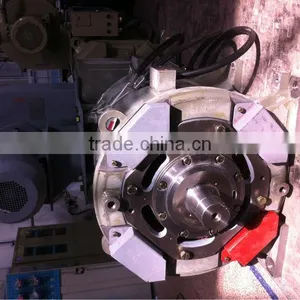

Cage Frequency Control Asynchronous Drilling Motor

Name: Cage Frequency Control Asynchronous Drilling Motor
Brand: LMMGROUP
SKU: 138435137
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

LMMGROUP

Model Number:

YJ13

Usage:

Other

Liaoning Mineral & Metallurgy Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Chinese seaport

Delivery Detail:

Delivery time depends on order quantity.

Brand Name LMMGROUP

Model Number YJ13

Usage Other

Certification CCC

Torque 11575

Construction Series Wound

Commutation Brush

Protect Feature Explosion-proof

Speed(RPM) 1060

Continuous Current(A) 1040

Output Power 800

Voltage(V) 550

Efficiency IE 1

Specifications

YJ13 cage frequency control speed asynchronous motor, adapt to AC-DC-AC electric-drive machine, apply to drilling rig rotary tab

YJ13 Variable Frequency series drilling motors

YJ13frequency control speed asynchronous motor series have enter marine and ship market. Various types drilling motor provide for customer.

MOTOR TYPE	RATED POWER (KW)	RATED VOLTAGE (V)	RATED CURRENT (I)	RATED ROTATED SPEED (r/min)	RATED FREQUENCY (Hz)	RATED TORQUE (N*M)	CONSTANT POWER HIGHEST ROTATED SPEED (R/MIN)	POWER FACTOR	RATED efficiency	insulation grade	Weight (KG)
YJ13	800	550	1040	660	33.5	11575	1060	0.86	0.95	200	3100
YJ13A	800	550	1040	660	33.5	11575	1060	0.86	0.95	200	3100
YJ13B	700	600	797	661	33	10108	1200	0.86	0.95	200	2900
YJ13D	550	690	574	794	40	6615	1984	0.89	0.95	200
YJ13E	450	400	782	794	40	5412	1981	0.84	0.94	200
YJ13E1	600	690	618	794	40	7217	1990	0.83	0.95	200	3090
YJ13F	450	400	782	794	40	5412	1981	0.84	0.94	200
YJ13G	1200	690	1193	1001	50	11443	1506	0.88	0.95	200	3200
YJ13H	400	400	710	400	20.5	9633	1200	0.90	0.90	200
YJ35AH	550	690	574	794	40.6	6615	1984	0.85	0.96	200	3000
YJ35H	550	690	574	794	40	6615	1984	0.85	0.96	200	3000
