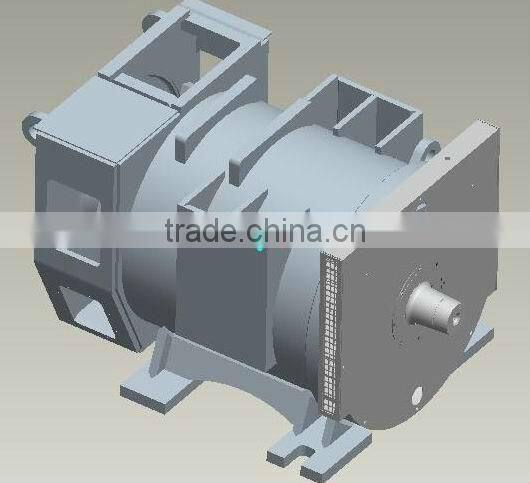

AC Electric-drive Rig Motor for Rotary Table and Mud Pump and Drawworks

Name: AC Electric-drive Rig Motor for Rotary Table and Mud Pump and Drawworks
Brand: LMMGROUP
SKU: 138435143
Availability: InStock

AC Electric-drive Rig Motor for Rotary Table and Mud Pump and Drawworks thumbnail-1

AC Electric-drive Rig Motor for Rotary Table and Mud Pump and Drawworks photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

LMMGROUP

Model Number:

LMMYJ23

Usage:

Other

Contact Supplier Request Quote Chat Now

Liaoning Mineral & Metallurgy Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Chinese seaport

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name LMMGROUP

Model Number LMMYJ23

Usage Other

Certification CCC

Type Tubular Motor

Torque 7234

Construction Series Wound

Commutation Brush

Protect Feature Explosion-proof

Speed(RPM) 1060

Continuous Current(A) 600

Output Power 500

Voltage(V) 600

Efficiency IE 1

Specifications

Adapt to AC-DC-AC electric-drive rig, apply to drilling rig rotary table, drawworks, mud pump, etc.

LMMYJ23 Variable Frequency control speed asynchromous series drilling motors

YJ23 cage frequency control speed asynchronous motor, adapt to AC-DC-AC electric-drive rig, apply to drilling rig rotary table, drawworks, mud pump, etc. The main features of the motors are as follows: plus pressure explosion-proof, high current, large torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability. Their outline installation dimension is strictly in accordance with that of imported AC oil drilling motor. The oil drilling motor can be used instead of the imported one. They can function as slurry pump motor, rotary table motor and winch motor of AC electric drive drilling machine. The motors are divided into two types,according different position of terminal (see from drive end) .

	LMMYJ23	LMMYJ23A	LMMYJ23A3
Rated power	600Kw	500Kw	600Kw
Rated voltage	600V	600V	600V
Rated current	714A	600A	1034A
Rated rotating speed	660r/min	660r/min	672r/min
Rated efficiency	95%	96%	94%
Rated Frequency	33.5 Hz	33.4Hz	34Hz
Rated torque	8683N.m	7234N.m	8536N.m
Max.rotating speed	1060r/min	1060r/min	1000r/min
Exciting	series	series	series
Insulation class	200	200	200
Cooling	Forced air	Forced air	Forced air
Protection class	Plus pressure explosion-proof	Plus pressure explosion-proof	Plus pressure explosion-proof
Weight	2650Kg	2650Kg	2650Kg
