Airport Check in Conveyor

Airport Check in Conveyor thumbnail-1
Airport Check in Conveyor photo-1
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical Conveyor
Material:
Rubber
Contact Supplier Request Quote Chat Now
Liaoning Mineral & Metallurgy Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical Conveyor
Material Rubber
Material Feature Oil Resistant
Structure Belt Conveyor
Load Capacity Static: 150 kg/m Dynamic: 50~100 kg/m
Place of Origin Liaoning, China
Brand Name LMM
Model Number BLC
Voltage 220V or Customized
Power(W) 60HZ or Customized
Dimension(L*W*H) Customized
Certification ISO9001
After-sales Service Provided No overseas service provided

Airport baggage take away conveyor
1.MTTR < 10 minutes
2.Bearing: NSK Japan
3.Customized is available

Airport baggage take away conveyor







Sketch Map of Take Away Conveyor

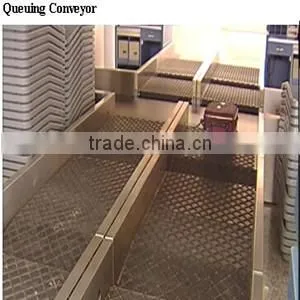

The take away conveyor in the departure hall is the front-end equipment of the baggage handling system. Since the baggage is on the moving belt, it has a high moving capacity. The reliability of the take away conveyor highly influences the reliability of the whole baggage handling system. After weighing and labeling, the baggage will be sent to the end of the queue belt conveyor, where a photoelectric cell will be triggered. The baggage will stop and wait for the window; when the baggage window of the take away conveyor appears, the queue belt conveyor will deliver the baggage to the take away conveyor. The queue belt conveyor has a special belt surface to prevent the baggage from sliding during the conveying process.





Main Technical parameters of take away Conveyor



Main parameters:

l Type BL

l Dimensions Length: 1200mm Height: 350mm Length customized

l Belt Width 1000mm

l Frame width:1040mm

l The maximum length of the slide bed parts:3000mm

l Side guide plate height above the conveyor belt: 200mm

l Roller, roller:φ60×650

l Bearing:NSK Japan

l Power device:Germany SEW

l Control switch, element:The French SCHNEIDER, XB2-BD21C automatic / manual

                                                                   switch   of motor

l The exposed side guide plates, apron hairline stainless steel plate, the thickness of

                                       2mm

l  Speed30 m/min~45m/min

l  Load capacity Static: 150 kg/m Dynamic: 50~100 kg/m.

l  Drive A standardized drive unit of electric roller is applied.

l  Belt types Holland AMMERAAL belt, anti-skid, flame retardant, antistatic

l  Frame: Q235-C plate, thickness 3mm

l  Baffle plate, protective plate: Q235-C plate,, thickness 2mm



Structural representation





Optional size

 Belt width

450mm,500mm,550mm,600mm,650mm,680mm,1000mmm and so on as you like

Conveyor length

1200mm,1300mm,1400m,1500m,2000mm and so on



Packing & Shipping

 Airport check in conveyor



Certification

 Airport check in conveyor

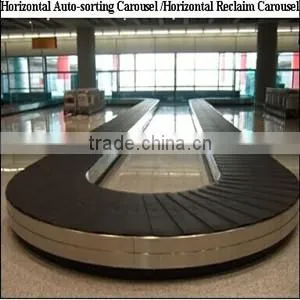

Related conveyors

Airport check in conveyorAirport check in conveyorAirport check in conveyorAirport check in conveyor
