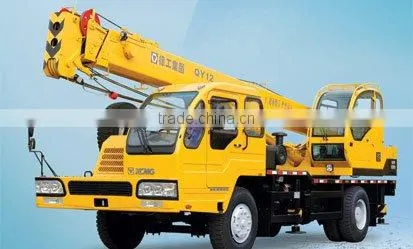

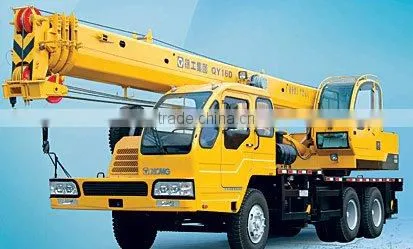

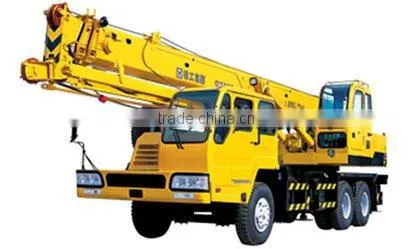

New Mobile Truck Cranes XCMG QY16K
US$ 10,000 - 300,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
all
Rated Loading Capacity:
21540kg
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Mobile Truck Cranes XCMG QY16DUS$ 10,000 - 300,000MOQ: 1 Unit -
Mobile Truck Cranes XCMG QY16C Spare PartsUS$ 10,000 - 300,000MOQ: 1 Unit
-
Mobile Truck Cranes XCMG QY12US$ 10,000 - 300,000MOQ: 1 Unit
-
Best Price and Cost-effective Crawl Crane QUY450 Made in ChinaUS$ 10,000 - 300,000MOQ: 1 Unit
-
Widely Use and Good Quality Crawler Crane QUYY450 Made by XCMGUS$ 10,000 - 300,000MOQ: 1 Unit
Condition
New
Application
all
Rated Loading Capacity
21540kg
Rated Lifting Moment
Base boom:711.48KN.m
Max. Lifting Load
16T
Max. Lifting Height
Fully extended boomv and Jib : more 32.3m
Span
Lateral: 5.4m
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
QY16K
Specifications
Truck Cranes:One stop service
Competitive prices
Comprehensive after-sale services and spare parts
Truck Crane: |
By the upgrade of lifting arm technology optimization, Xuzhou Heavy Machinery establishes the leading position in the key technologies of oblong section lifting arm and flexible lifting arm system automatically controlled by single cylinder mutually locked...... |
| Classificatory | Item | Unit | Parameter | |||
| Outline dimension | Overall length | mm | 11810 | |||
| Overall width | mm | ≤2500 | ||||
| Overall height | mm | 3170 | ||||
| Wheel base | Axle 1, Axle 2 | mm | 4025 | |||
| Axle 2, Axle 3 | mm | 1350 | ||||
| Track | Front wheel | mm | 2079 | |||
| Rear wheel | mm | 1834 | ||||
| Mass | Total mass in travel state | kg | 21540 | |||
| Axle load | Axle 1 | kg | 6300 | |||
| Axle 2 | kg | 15100 | ||||
| Travel performance | Travel speed | Max. travel speed | km/h | ≥69 | ||
| Min. stable travel speed | km/h | ≤2.8 | ||||
| Turning diameter | Min. turning diameter | m | ≤21 | |||
| Min. turning diameter at boom tip | m | ≤24 | ||||
| Min. ground clearance | mm | ≥260 | ||||
| Approach angle | (°) | ≥16 | ||||
| Departure angle | (°) | ≥14 | ||||
| Braking distance (at 30km/h with full load) | m | 10 | ||||
| Max. grade-ability | % | ≥32 | ||||
| Fuel consumption for 100km | L | 30 | ||||
| Main Technical Data for Lifting Operation | ||||||
| Classificatory | Item | Unit | Parameter | |||
| Lifting performance | Max. total rated lifting capacity | t | 16 | |||
| Min. rated working radius | m | 3 | ||||
| Turning radius at turntable tail | m | ≤2.765 | ||||
| Max. load moment | Base boom | kN.m | 711.48 | |||
| Fully extended boom | kN.m | 449.8 | ||||
| Fully extended boom + Jib | kN.m | 327.7 | ||||
| Outrigger span | Longitudinal | m | 4.68 | |||
| Lateral | m | 5.4 | ||||
| Lifting height | Base boom | m | ≥10.17 | |||
| Fully extended boom | m | ≥24.7 | ||||
| Fully extended boom + Jib | m | ≥32.3 | ||||
| Boom length | Base boom | m | 10 | |||
| Fully extended boom | m | 24.2 | ||||
| Fully extended boom + Jib | m | 32.35 | ||||
| Working speed | Boom raising time | s | ≤50 | |||
| Boom full extension time | s | ≤73 | ||||
| Max. swing speed | r/min | ≥2.1 | ||||
| Hoist speed | Main winch | Full load | m/min | ≤82 | ||
| No load | m/min | ≤100 | ||||
