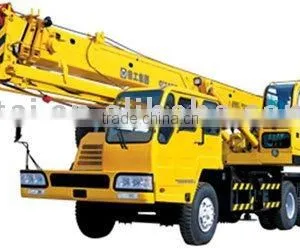

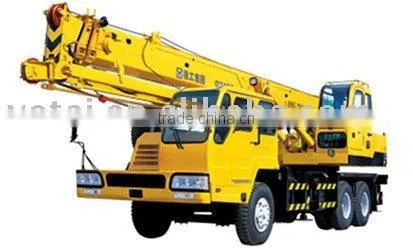

Mobile Truck Cranes XCMG QY16C Spare Parts
US$ 10,000 - 300,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
all
Rated Loading Capacity:
22900kg
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mobile Truck Cranes XCMG QY12US$ 10,000 - 300,000MOQ: 1 Unit -
Best Price and Cost-effective Crawl Crane QUY450 Made in ChinaUS$ 10,000 - 300,000MOQ: 1 Unit
-
Widely Use and Good Quality Crawler Crane QUYY450 Made by XCMGUS$ 10,000 - 300,000MOQ: 1 Unit
-
China Made Crawl Crane QUY350 With Good QualityUS$ 10,000 - 300,000MOQ: 1 Unit
-
Multi-function XCMG Crawl Crane QUY260 for SaleUS$ 10,000 - 300,000MOQ: 1 Unit
Condition
New
Application
all
Rated Loading Capacity
22900kg
Rated Lifting Moment
410KN.m
Max. Lifting Load
16T
Max. Lifting Height
Fully extended boomv and Jib : more 30.8m
Span
Lateral: 5.4m
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
QY16C
Specifications
Truck Cranes:One stop service
Competitive prices
Comprehensive after-sale services and spare parts
Truck Crane: |
By the upgrade of lifting arm technology optimization, Xuzhou Heavy Machinery establishes the leading position in the key technologies of oblong section lifting arm and flexible lifting arm system automatically controlled by single cylinder mutually locked...... |
| Classificatory | Item | Unit | Parameter | |||
| Engine | Model | D6114 | ||||
| Outline dimension | Overall length | mm | 11990 | |||
| Overall width | mm | 2500 | ||||
| Overall height | mm | 3350 | ||||
| Wheel base | Axle 1, Axle 2 | mm | 4025 | |||
| Axle 2, Axle 3 | mm | 1350 | ||||
| Mass | Total mass in travel state | kg | 22900 | |||
| Axle 1 | kg | 5240 | ||||
| Axle load | Axle 2 | kg | 17660 | |||
| Travel performance | Travel speed | Max. travel speed | km/h | 70 | ||
| Min. stable travel speed | km/h | 4 | ||||
| Turning diameter | Min. turning diameter | m | 20 | |||
| Min. turning diameter at boom tip | m | 23 | ||||
| Min. ground clearance | mm | 270 | ||||
| Approach angle | (°) | 21 | ||||
| Departure angle | (°) | 10 | ||||
| Braking distance (at 30km/h with full load) | m | 9.5 | ||||
| Max. grade-ability | % | 24 | ||||
| Fuel consumption for 100km | L | 35 | ||||
| Power | Engine rated output | kW/(r/min) | 158/2200 | |||
| Engine rated torque | N.m/ (r/min) | 790/1400 | ||||
| Engine rated speed | r/min | 2200 | ||||
| Main Technical Data for Lifting Operation | ||||||
| Classificatory | Item | Unit | Parameter | |||
| Lifting performance | Max. total rated lifting capacity | t | 16 | |||
| Min. rated working radius | m | 3 | ||||
| Turning radius at turntable tail | m | ≤3.12 | ||||
| Max. load moment | Base boom | kN.m | 711 | |||
| Fully extended boom | kN.m | 449 | ||||
| Fully extended boom + Jib | kN.m | 186 | ||||
| Outrigger span | Longitudinal | m | 4.6 | |||
| Lateral | m | 5.4 | ||||
| Lifting height | Base boom | m | ≥9.9 | |||
| Fully extended boom | m | ≥23.6 | ||||
| Fully extended boom + Jib | m | ≥30.8 | ||||
| Boom raising time | s | ≤60 | ||||
| Boom full extension time | s | ≤75 | ||||
| Working speed | Max. swing speed | r/min | ≥2.5 | |||
| Hoist speed | Main winch | Full load | m/min | ≥54 | ||
| No load | m/min | ≥100 | ||||
| (single line) | Aux. winch | Full load | m/min | ≥54 | ||
| No load | m/min | ≥100 | ||||
| Noise limit | Crane exterior noise | dB (A) | ≤118 | |||
| At seated position | dB ( | |||||
