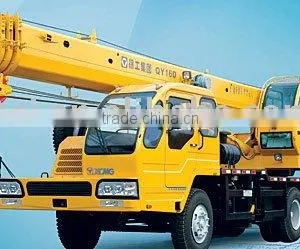

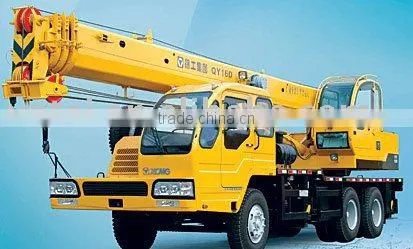

New Mobile Truck Cranes XCMG QY16D
USD $10,000 - $300,000
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- China Port
- T/T
You May Like
- China QY25K-II truck crane for construction 25 ton lifting crane for truck fast delivery in stock truck crane
- Factory Price of the 100 Ton Used Crane Truck Sany Stc1000 Second Hand Truck Mobile Crane
- 2019 Excellent condition for the used Mobile Truck Cranes 25T/50T/70T/90T/100T
- Used 50 ton China original X-CM-G QY50KA mobile truck crane, used crane QY50K-II truck 55 ton crane for sale
- China XCMG 50 tons hydraulic mobile 50t truck crane XCT50_M QY50KA QY55KC for sale
- Used Truck Crane used STC250S Mobile Crane with Good Performance used track crane
Product Details
Condition: | New | Application: | all | Rated Loading Capacity: | 24000kg |
Rated Lifting Moment: | 686KN.m | Max. Lifting Load: | 16T | Max. Lifting Height: | Fully extended boomv and Jib : more 38.5m |
Span: | Lateral: 5.4m | Place of Origin: | Jiangsu, China | Brand Name: | XCMG |
Model Number: | QY16D |
Product Description
Specifications
Truck Cranes:One stop service
Competitive prices
Comprehensive after-sale services and spare parts
Truck Crane: |
By the upgrade of lifting arm technology optimization, Xuzhou Heavy Machinery establishes the leading position in the key technologies of oblong section lifting arm and flexible lifting arm system automatically controlled by single cylinder mutually locked...... |
Classificatory | Item | Unit | Parameter | |||
Engine | Model | D6114ZLQ5B | ||||
Outline dimension | Overall length | mm | 11990 | |||
Overall width | mm | ≤2500 | ||||
Overall height | mm | 3350 | ||||
Wheel base | Axle 1, Axle 2 | mm | 4025 | |||
Axle 2, Axle 3 | mm | 1350 | ||||
Mass | Total mass in travel state | kg | 24000 | |||
Axle load | Axle 1 | kg | 6400 | |||
Axle 2 | kg | 17600 | ||||
Travel performance | Travel speed | Max. travel speed | km/h | ≥70 | ||
Min. stable travel speed | km/h | 3~4 | ||||
Turning diameter | Min. turning diameter | m | ≤20 | |||
Min. turning diameter at boom tip | m | ≤23 | ||||
Min. ground clearance | mm | 270 | ||||
Approach angle | (°) | 21 | ||||
Departure angle | (°) | 10 | ||||
Braking distance (at 30km/h with full load) | m | 9.5 | ||||
Max. grade-ability | % | 24 | ||||
Fuel consumption for 100km | L | 35 | ||||
Main Technical Data for Lifting Operation | ||||||
Classificatory | Item | Unit | Parameter | |||
Lifting performance | Max. total rated lifting capacity | t | 16 | |||
Min. rated working radius | m | 3 | ||||
Turning radius at turntable tail | m | ≤3.12 | ||||
Max. load moment | Base boom | kN.m | 686 | |||
Fully extended boom | kN.m | 388 | ||||
Fully extended boom + Jib | kN.m | 254 | ||||
Outrigger span | Longitudinal | m | 4.6 | |||
Lateral | m | 5.4 | ||||
Lifting height | Base boom | m | ≥9.9 | |||
Fully extended boom | m | ≥30.7 | ||||
Fully extended boom + Jib | m | ≥38.5 | ||||
Working speed | Boom raising time | s | ≤60 | |||
Boom full extension time | s | ≤95 | ||||
Max. swing speed | r/min | ≥2.5 | ||||
Hoist speed | Main winch | Full load | m/min | ≥54 | ||
No load | m/min | ≥100 | ||||
(single line) | Aux. winch | Full load | m/min | ≥54 | ||
No load | m/min | ≥100 | ||||
Noise limit | Crane exterior noise | dB (A) | ≤118 | |||
At seated position | dB (A) | ≤90 |
