Home > Packaging & Printing > Package & Conveyance > Packing Tape > Nitto Nitoflon Bag Sealing Tape 973ul-s

Nitto Nitoflon Bag Sealing Tape 973ul-s

Nitto Nitoflon Bag Sealing Tape 973ul-s thumbnail-1
Nitto Nitoflon Bag Sealing Tape 973ul-s thumbnail-2
Nitto Nitoflon Bag Sealing Tape 973ul-s thumbnail-3
Nitto Nitoflon Bag Sealing Tape 973ul-s thumbnail-4
Nitto Nitoflon Bag Sealing Tape 973ul-s thumbnail-5
Nitto Nitoflon Bag Sealing Tape 973ul-s thumbnail-6
Nitto Nitoflon Bag Sealing Tape 973ul-s photo-1
Nitto Nitoflon Bag Sealing Tape 973ul-s photo-2
Nitto Nitoflon Bag Sealing Tape 973ul-s photo-3
Nitto Nitoflon Bag Sealing Tape 973ul-s photo-4
Nitto Nitoflon Bag Sealing Tape 973ul-s photo-5
Nitto Nitoflon Bag Sealing Tape 973ul-s photo-6
US$ 26 - 35 MOQ: 1 Roll
Key Specifications
Get Latest Price
Material:
PTFE
Use:
Masking
Adhesive Side:
Single Sided
Contact Supplier Request Quote Chat Now
Shantou Wingtai Packing Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Shantou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material PTFE
Use Masking
Adhesive Side Single Sided
Adhesive Type Hot Melt, Pressure Sensitive
Design Printing No Printing
Place of Origin Japan
Brand Name Nitto
Model Number 973ul-s(0.13*75*10)

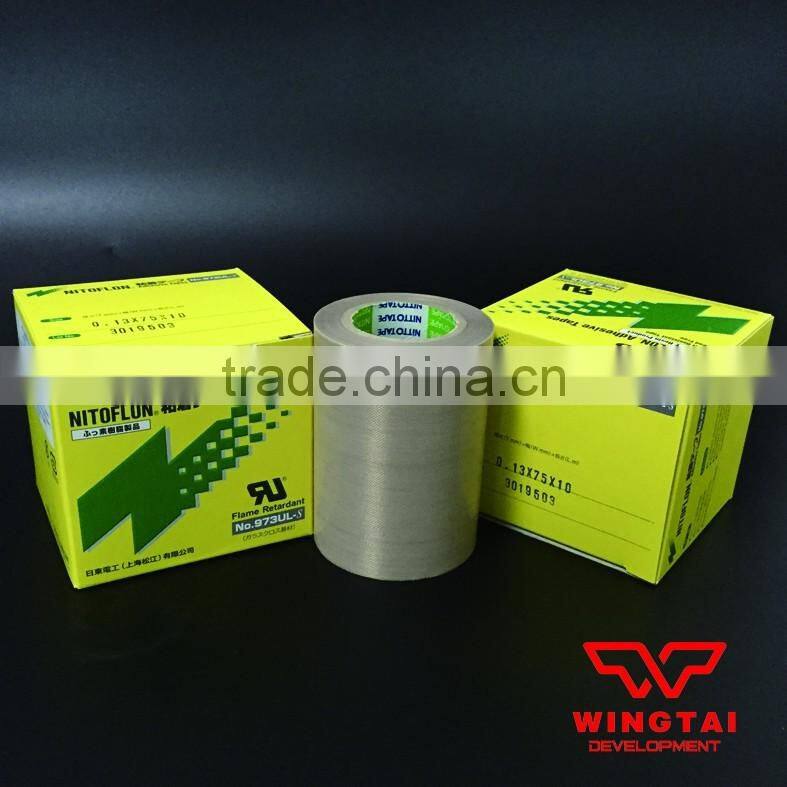

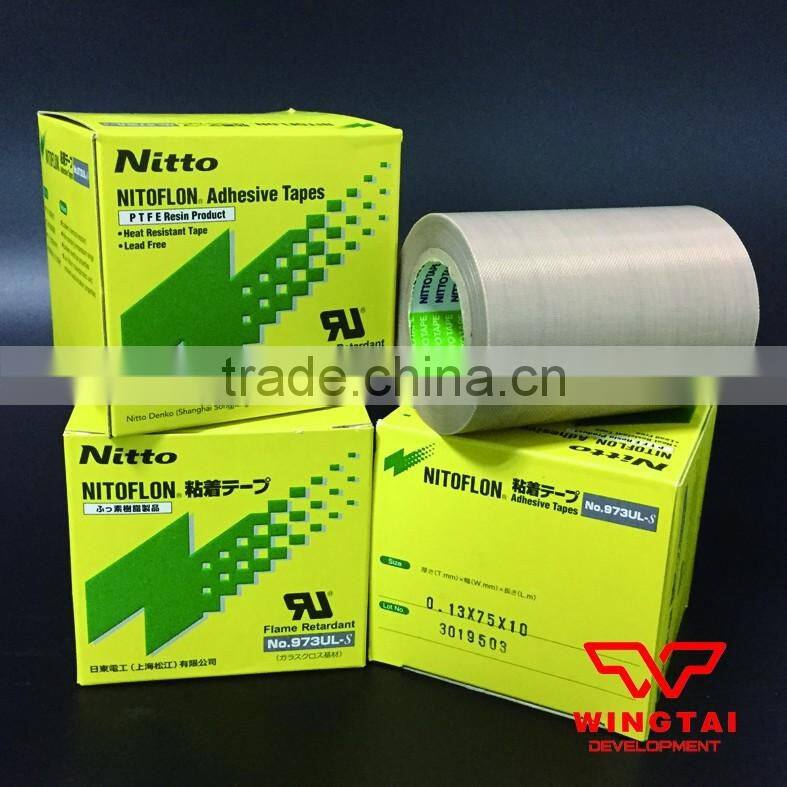

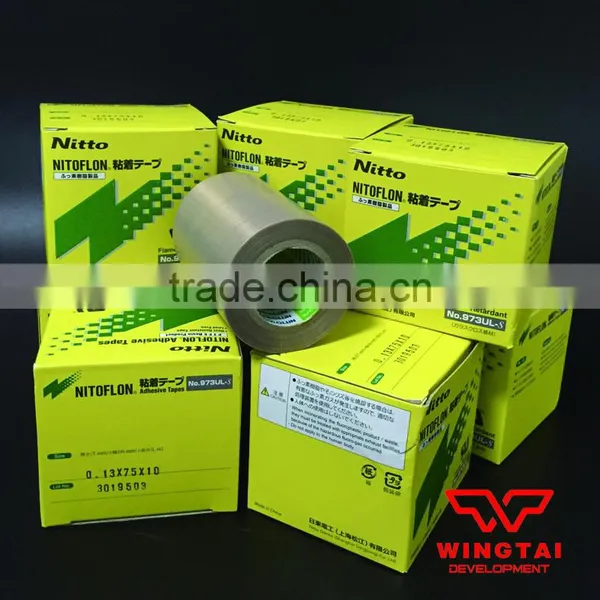

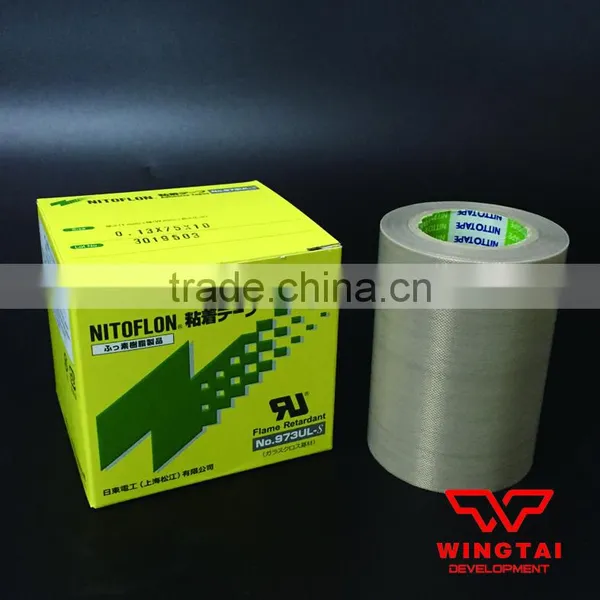

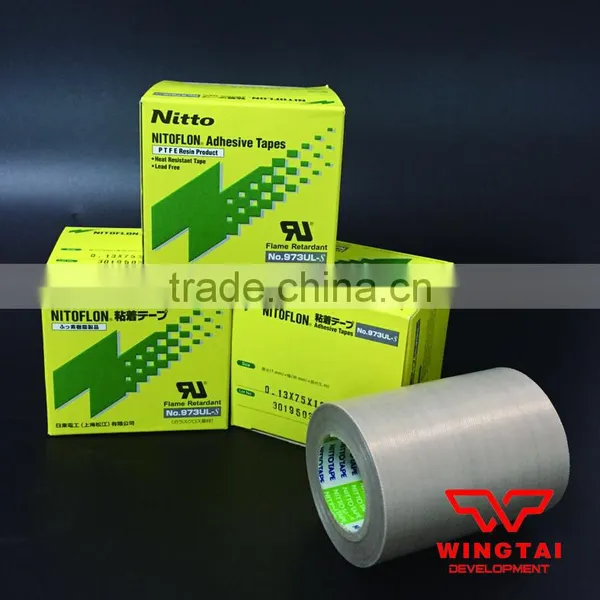

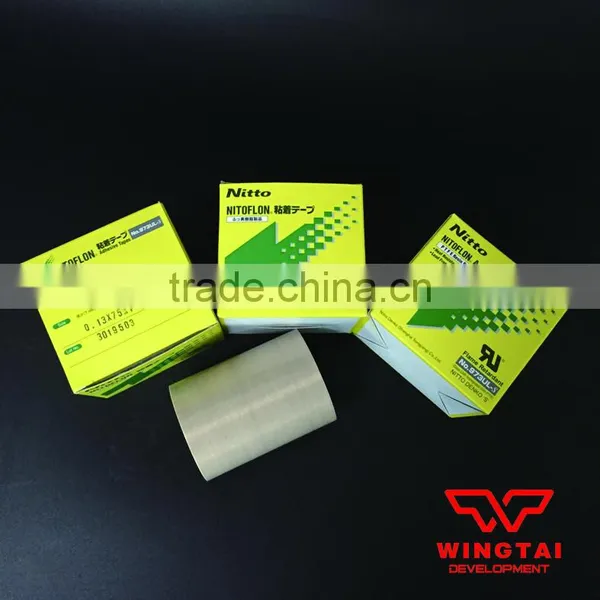

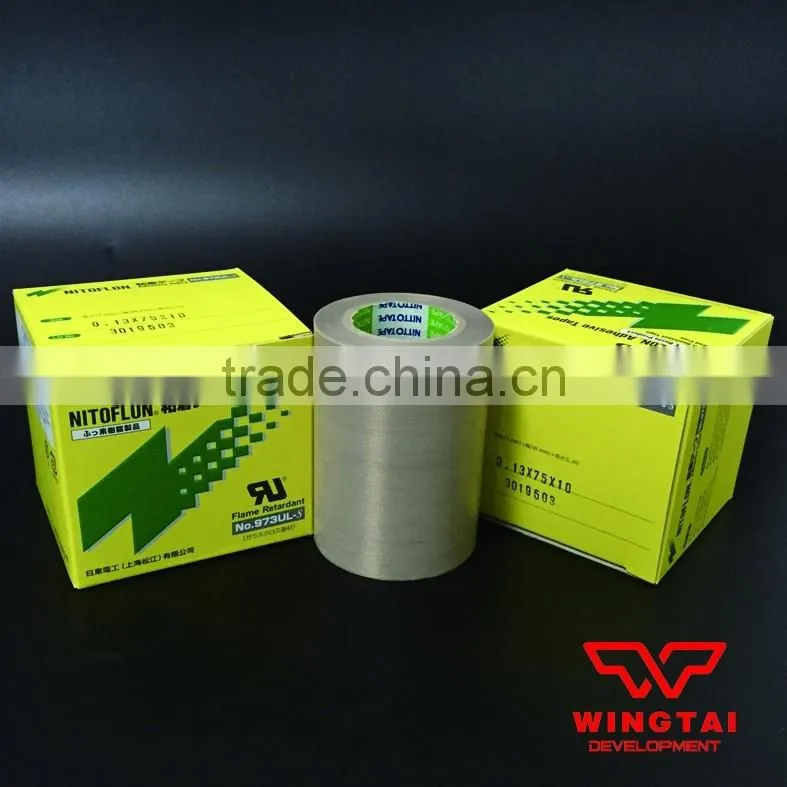

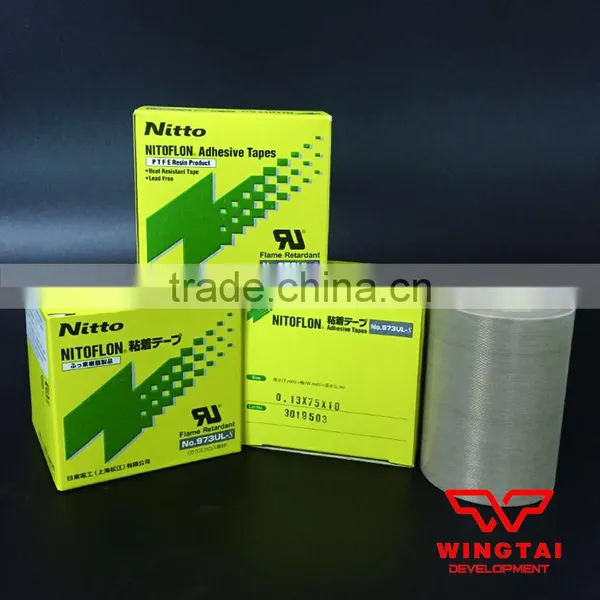

Nitto Nitoflon Bag sealing tape 973ul-s



T0.13mm*W75mm*L10m



Product Description



Overview:

Used in glass fiber brie infiltration tetra fluoride ethylene resin (PTFE) dispersion solution formed after the firing of the material substrate. The single-sided tape to the surface treatment, coated with silicone-based adhesive with excellent heat resistance and mechanical strength.





Features:

  1. Environmentally friendly products.
  2. Has a good off models and smoothness.
  3. Has good heat retention and dimensional stability.
  4. Nonadhesive surface with electrical characteristics, heat resistance, weather resistance,  chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and  other four non-fluorinated ethylene resin possess good properties.

Usage:



• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation

Product Information



Nitto Nitoflon Bag sealing tape 973ul-sNitto Nitoflon Bag sealing tape 973ul-s





Note: Nitto tape has changed into new packing as it is showed above.

More Specification



Model

Color

Specification

Short-term

heat resistance

(℃)

Continuous use

temperature(℃)

Thickness (mm)

Width

(mm)

Length

(m)

No.973UL-S

Beige

0.13

10

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

13

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

15

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

19

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

25

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

38

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

50

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

75

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

100

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

300

10

300℃

-60~260℃

No.973UL-S

Beige

0.13

600

10

300℃

-60~260℃

No.973UL

Beige

0.18

13

10

300℃

-60~260℃

No.973UL

Beige

0.18

19

10

300℃

-60~260℃

No.973UL

Beige

0.18

25

10

300℃

-60~260℃

No.973UL

Beige

0.18

50

10

300℃

-60~260℃



Technical Data



Item

No.973UL-S

No.973UL

Thickness (mm)

0.13

0.15

0.18

Tensile strength (N/19mm)

240

590

530

Adhesive strength (N/19mm)

25°C

6.8

9.0

9.7

100°C

3.2

3.9

4.7

150°C

2.2

2.6

3.0

Unwinding force(N/19mm)

5.9

5.9

7.5

Temperature range(℃)

-60~260

Test Method

Compatible with JIS C 2107
