T0.13mmW19mmL10m Nitoflon High Temperature Nitto Tape 973ul-s

Name: T0.13mm*W19mm*L10m Nitoflon High Temperature Nitto Tape 973ul-s
Brand: Nitto
Price: USD $8 - 26 / Roll

FOB Price

USD $8 - $26 / Roll

1 Roll(Min.Order)

Supply Ability 12000 Roll / Rolls per Month
Port Shenzhen/Shantou
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Material:	PTFE	Use:	Masking	Adhesive Side:	Single Sided
Adhesive Type:	Hot Melt, Pressure Sensitive
Design Printing:	No Printing	Place of Origin:	Japan	Brand Name:	Nitto
Model Number:	973ul-s(0.131910)

Product Description

T0.13mm*W19mm*L10m Nitoflon High Temperature Nitto Tape 973ul-s

Product Description

Overview:

Used in glass fiber brie infiltration tetra fluoride ethylene resin (PTFE) dispersion solution formed after the firing of the material substrate. The single-sided tape to the surface treatment, coated with silicone-based adhesive with excellent heat resistance and mechanical strength.

Features:

Environmentally friendly products.
Has a good off models and smoothness.
Has good heat retention and dimensional stability.
Nonadhesive surface with electrical characteristics, heat resistance, weather resistance, chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and other four non-fluorinated ethylene resin possess good properties.

Usage:

• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation

Product Information

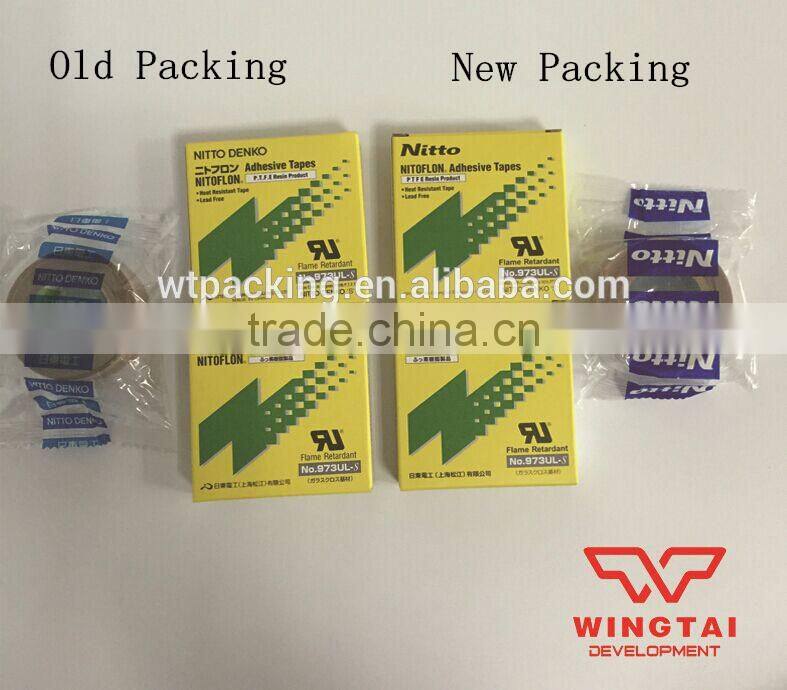

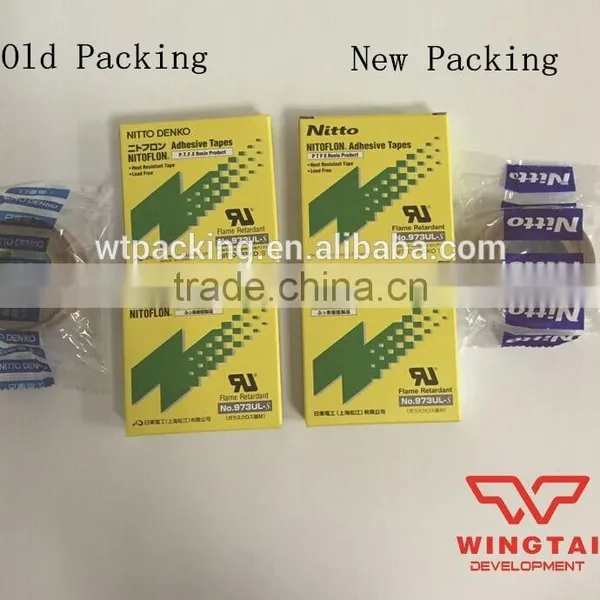

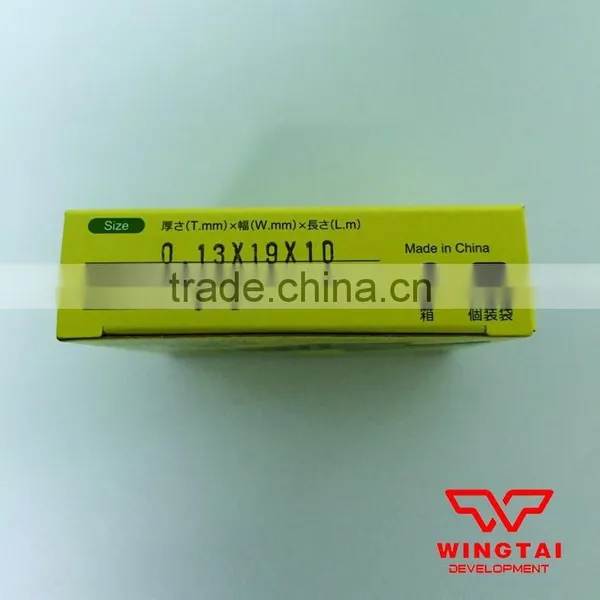

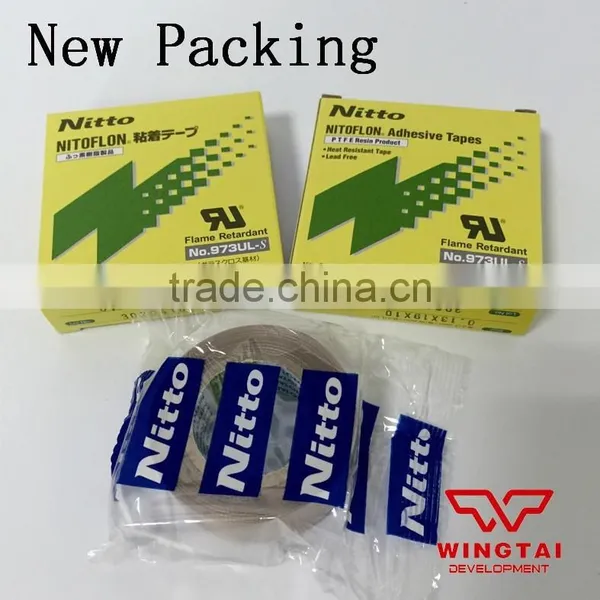

Note: Nitto tape has changed into new packing as it is showed above.

More Specification

Model	Color	Specification			Short-term heat resistance (℃)	Continuous use temperature(℃)
Model	Color	Thickness (mm)	Width (mm)	Length (m)	Short-term heat resistance (℃)	Continuous use temperature(℃)
No.973UL-S	Beige	0.13	10	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	13	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	15	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	19	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	25	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	38	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	50	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	75	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	100	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	300	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	600	10	300℃	-60~260℃
No.973UL	Beige	0.18	13	10	300℃	-60~260℃
No.973UL	Beige	0.18	19	10	300℃	-60~260℃
No.973UL	Beige	0.18	25	10	300℃	-60~260℃
No.973UL	Beige	0.18	50	10	300℃	-60~260℃

Technical Data

Item		No.973UL-S	No.973UL
Thickness (mm)		0.13	0.15	0.18
Tensile strength (N/19mm)		240	590	530
Adhesive strength (N/19mm)	25°C	6.8	9.0	9.7
	100°C	3.2	3.9	4.7
	150°C	2.2	2.6	3.0
Unwinding force(N/19mm)		5.9	5.9	7.5
Temperature range(℃)		-60~260
Test Method		Compatible with JIS C 2107

Contact Us

Shantou Wingtai Packing Equipment Co., Ltd.: Contact nameSophia Lee; Phone86-754-88733293; AddressRoom 408,Block A, 31 Block Huangshan Building, Longhu District, Shantou, Guangdong, China Shantou,Guangdong

Product Categories

Mechanical Electrical Equipment	Teflon Heat Resistant Products	Stroboscope & Sensors	Printing Supplies
Printing Magnetic Ink Mixing Rollers	Printing Doctor Blades	Pneumatic Automatic Hole Punch Machines	Package Raw Material
New Products	Ceramic Anilox Roller & Clearner	Liquid Viscosity Control & Test Device	Laboratory Test Instruments
Japan KOYO Abrasive Cloth	Industry Eliminate Static Device	Industrial Spring	Industrial Environmental Protection Equipment
Corona Dyne Test Pen & Dyne Ink	Color Guides & Color Test Devices

New Products

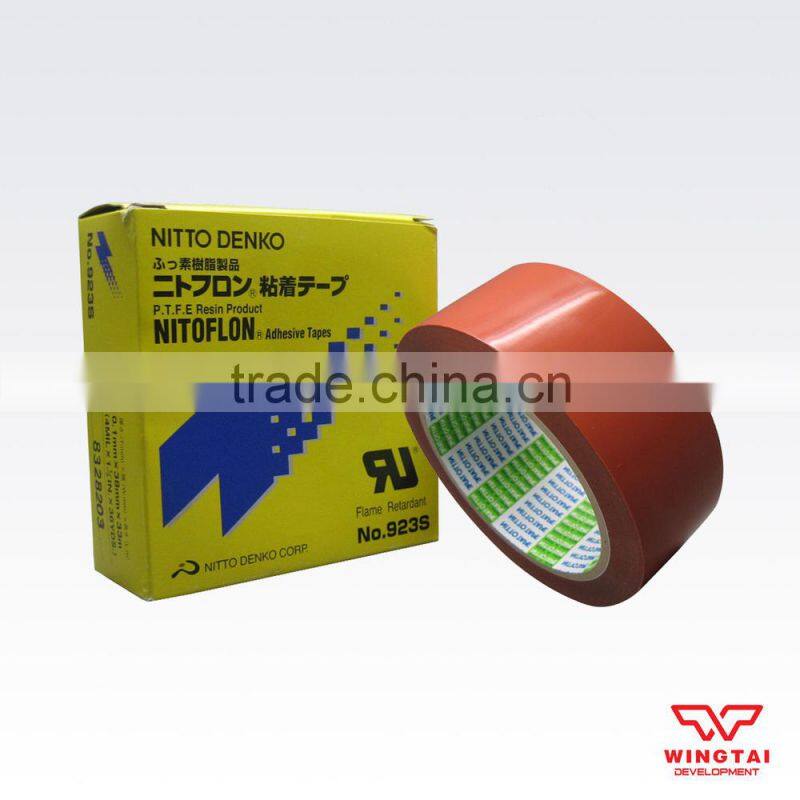

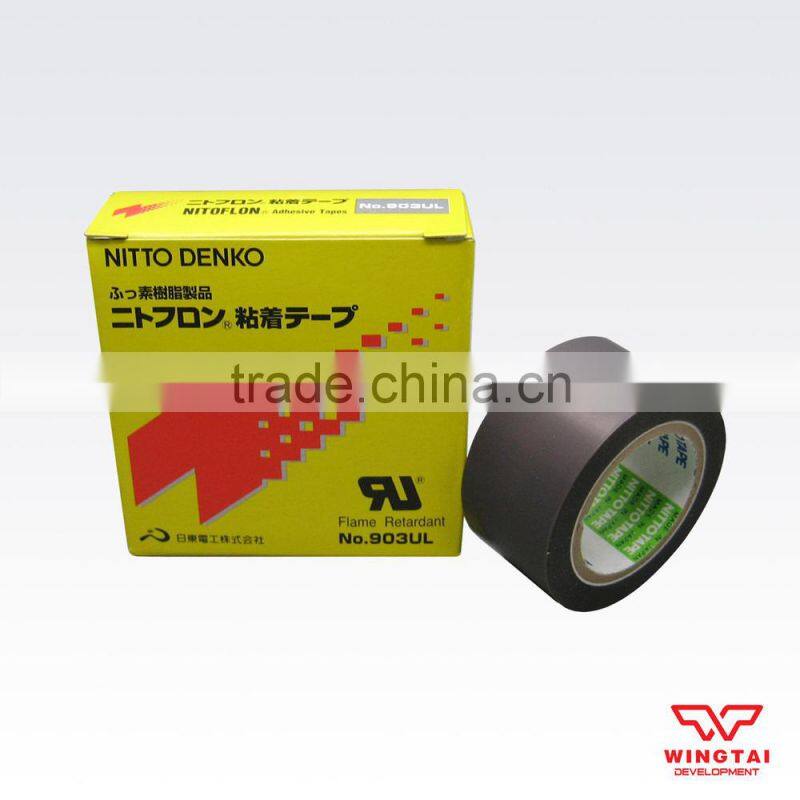

Nitto Denko Tape 903UL	Nitto Denko Tape 923S	Nitoflon non-adhesive cloth 970-2 UL

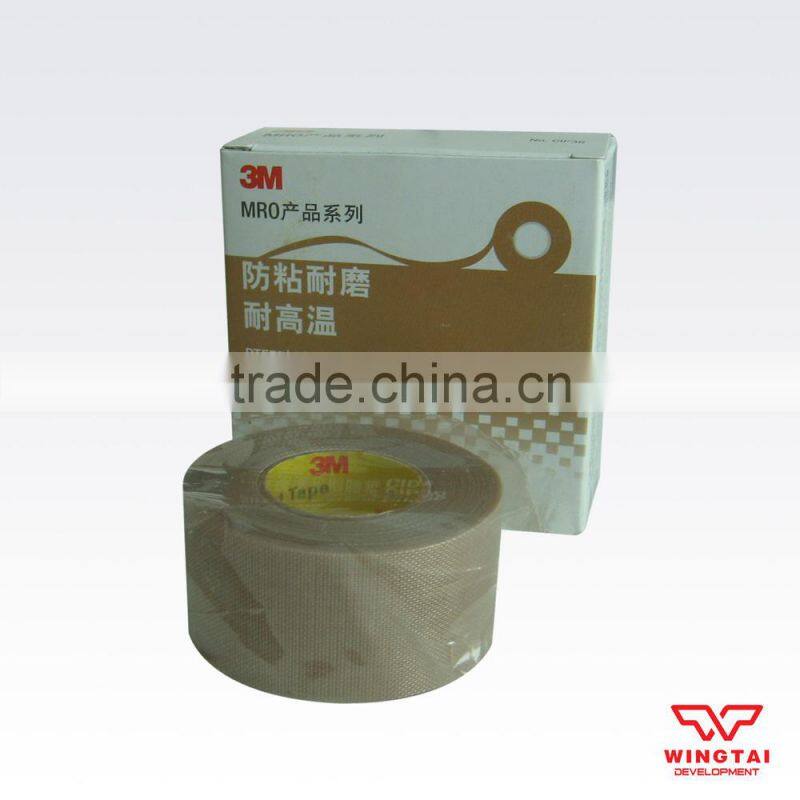

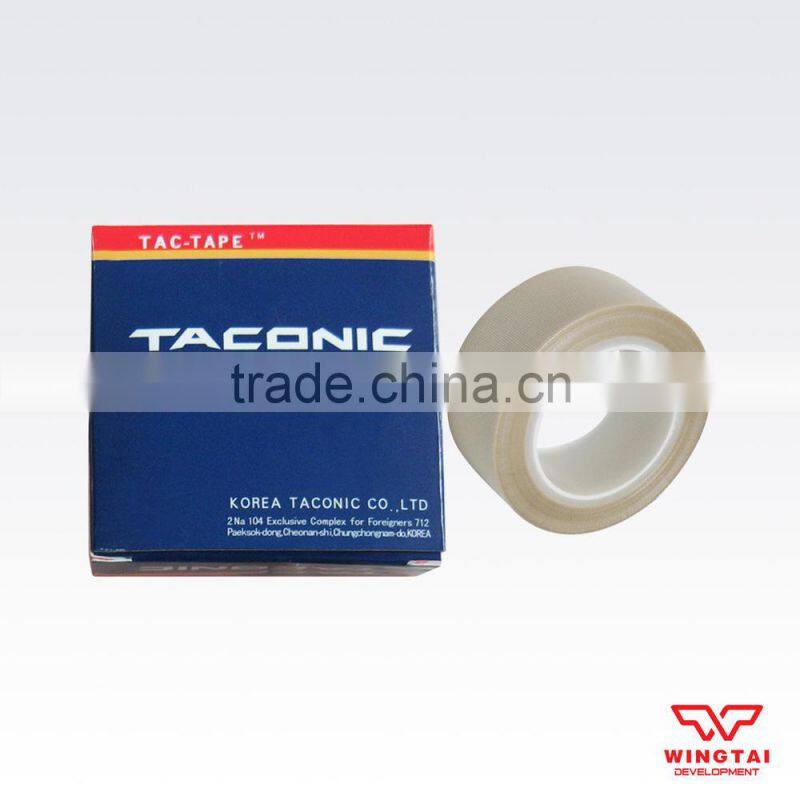

Nitto Denko Tape 975	America 3M Heat resistance tape	Korea Taconic Tape
