Air Operated Diaphragm Pump

Specifications

Air Operated Double Diaphragm Pump 5#

Description:

Pneumatic diaphragm pump is a new conveying machine, which is the latest novel kind of pump. Compressed air as the power source, it can be use in any corrosive liquid, liquid with particle, high viscosity, easy volatile, inflammable, highly toxic liquid.

There are four materials in Pneumatic Diaphragm Pump: plastic, aluminum alloy, cast iron and stainless steel. The diaphragm pump will adopt Buna-N rubber, Chloroprene rubber, fluororubber, Teflon, according to the different liquid and to meet customers’ need. Place in all kinds of special occasion; use to pumping the medium which the general pump cannot do so. And it is gain a satisfied effect.

Thus the above features that pneumatic pump possessed, this kind of pump is gradually invaded other pump market when it is born and cover a part of it. Such as painting, ceramic industry, printing industry, the pneumatic pump has an absolute dominant position.

Features:

1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and explosive environment.
2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
3. Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
5. Diaphragm Pump is small, light and easy to move.

Applicable industries:

Used for water-based ink printing machine, gravure printing, flexo printing and composite glue machine and the liquid with particle, all kinds of the cycle of flammable liquid delivery system.

Accessories:

1. Inlet or outlet PV Tube: 2m(Respectively)

2. A strainer set,

3. A G shaped fixation clamp

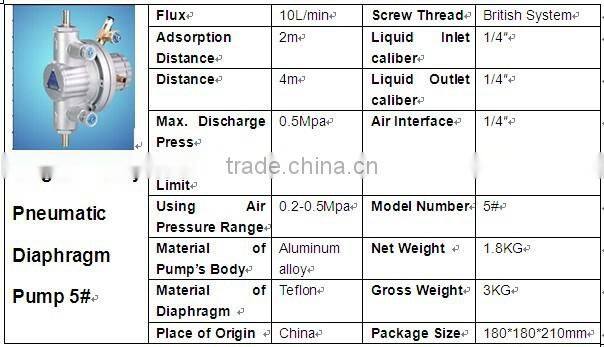

Product’s Parameter:

Application

1. General industrial: lubricating oil, heavy oil, cutting fluid, discharge processing liquid, powder conveying, mold release cycle of spraying, etc
2. Plastic bag industry: gravure flexo printing ink loop, composite glue circulation, coating glue loop
3. Chemical industry: chemicals, emulsion and latex, adhesive glue, stone halogen material, chemical transport
4. Coating industry: paint, solvents, cleaning fluids, such as transportation, color harmonic gear, drainage treatment room
5. Ceramic industry: transfer of mud, circulation, etc. The application of glaze, circulation, etc
6. Other industries: applies to the semiconductor industry, printing industry, rubber industry, paper making, textile and furniture industries, etc.
