Specifications
Ink Flow CupViscosity Cup Measurement
Newton Liquid Viscosity Test
Stainless Steel Material
International Standard

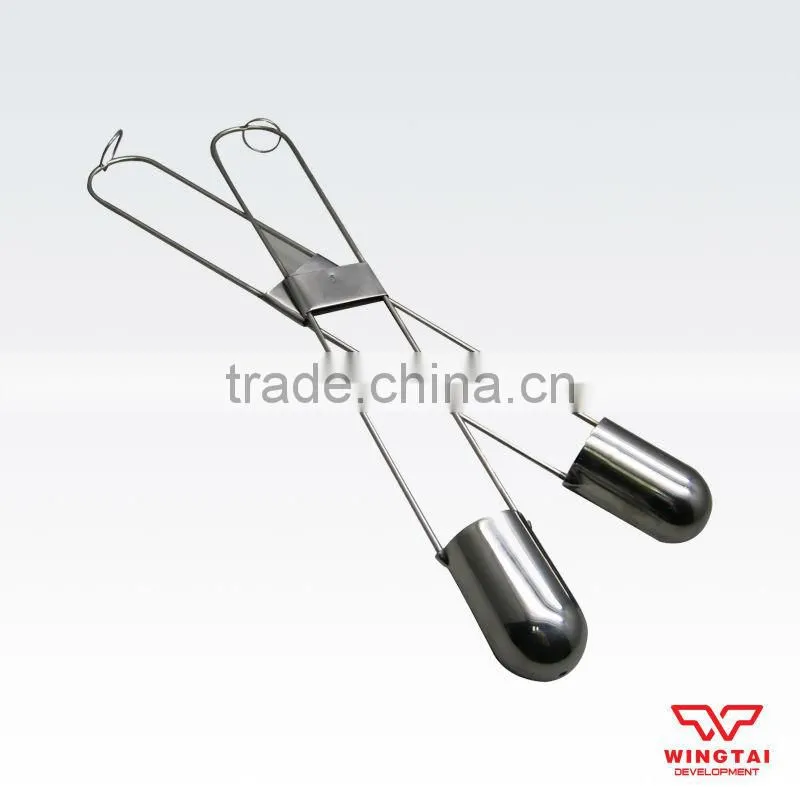

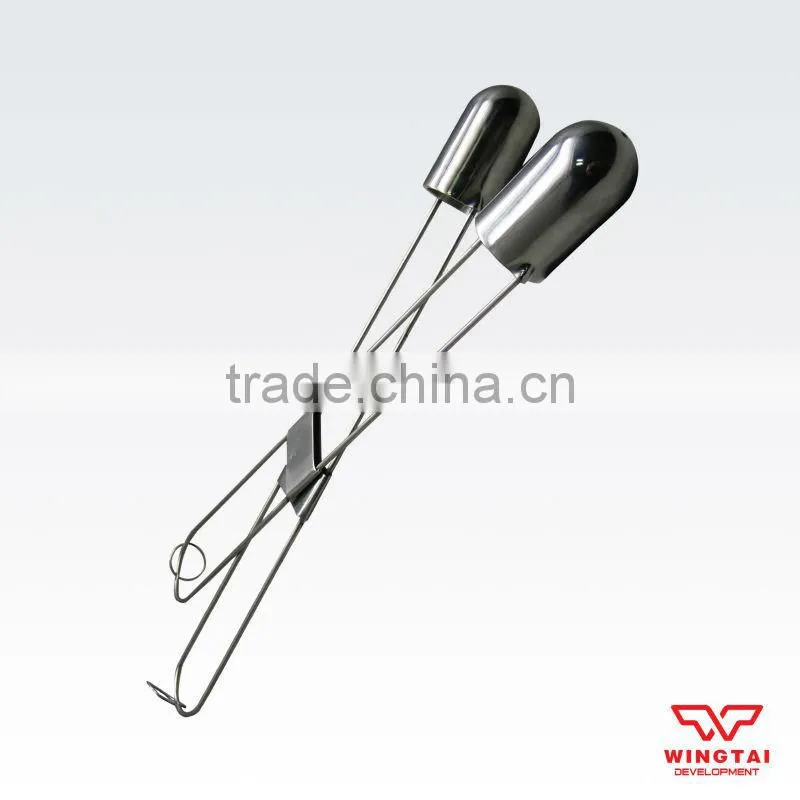

Germany AARON Ink Flow Cup
Technique Parameters
Origin: Germany
Brand: AARON
Cup volume: 44ml
Cup Material: Stainless steel
Net Weight: 0.2kg (0.4 pounds)
Size: 390 * 48 * 37mm

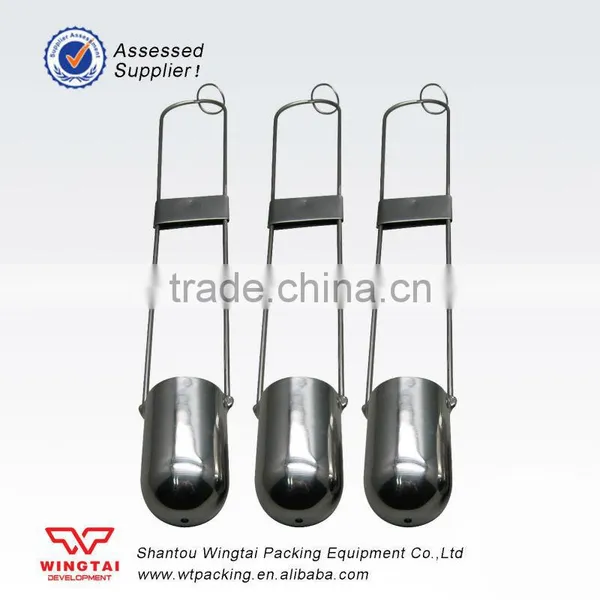

Model: Zahn 2 #, 3 #, 4 #
Packaging: environmentally friendly paper packaging
Model |
Aperture |
Measurement range |
Measuring temperature |
2 |
2mm |
~70 |
Room Temperature |
3 |
3mm |
20~250 |
Room Temperature |
4 |
4mm |
80~700 |
Room Temperature |
Characters
1. Can be used at any place like workshop, factory or laboratory, rapidly test and adjust the viscosity of different fluid.
2. Before using it you should choose a suitable cup, let the flowing speed at 10~90 seconds.
Operation theory

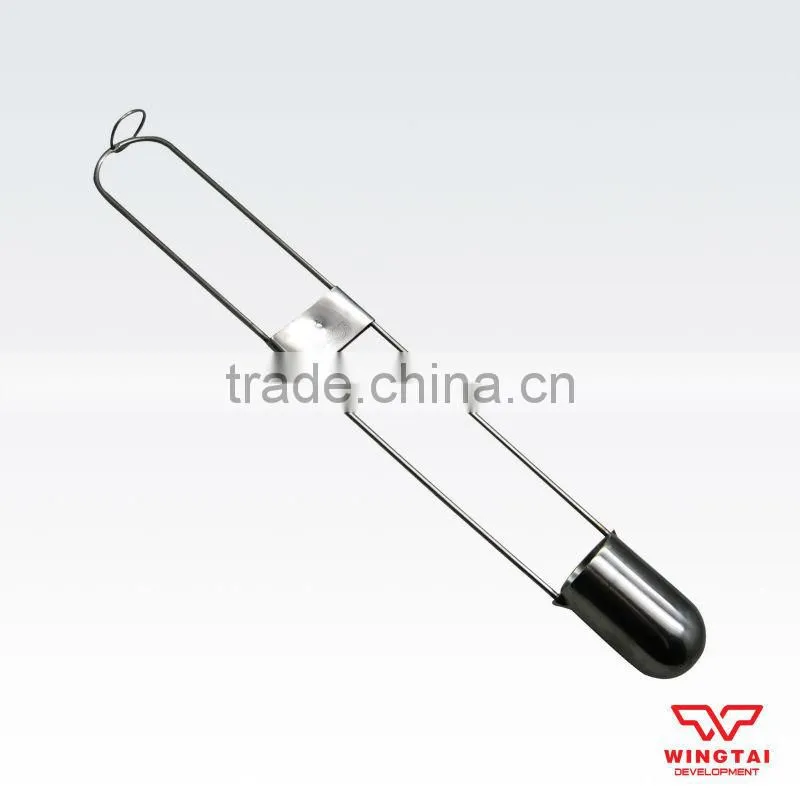

1. The zahn cup has a 12inches annular holder, hold it until the cup immerges in the liquid.
2. There is a ring in the middle of the holder; it is for keeping the cup in a vertical condition
when immerging.
3. When the cup is filled with liquid, lift it vertically, until the cup all out of the liquid, and then
press the stopwatch at the same time.
4. You can see the liquid flows out of the cup through the small hole at the bottom of it .Until
all the liquid is flowed off, stop the stopwatch at the same time. Then you will get the viscosity value of the liquid on the stopwatch.

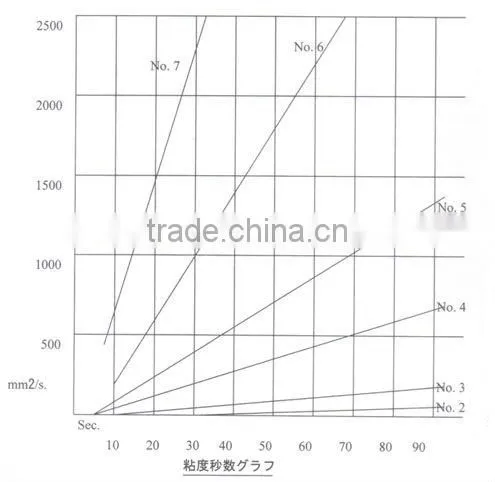

5. The testing result in a special environment must be noted in zahn second, then convert it into centistokes.
Functions :
This viscosity cup is to test the viscosity of Newtonian or similar Newtonian fluid.

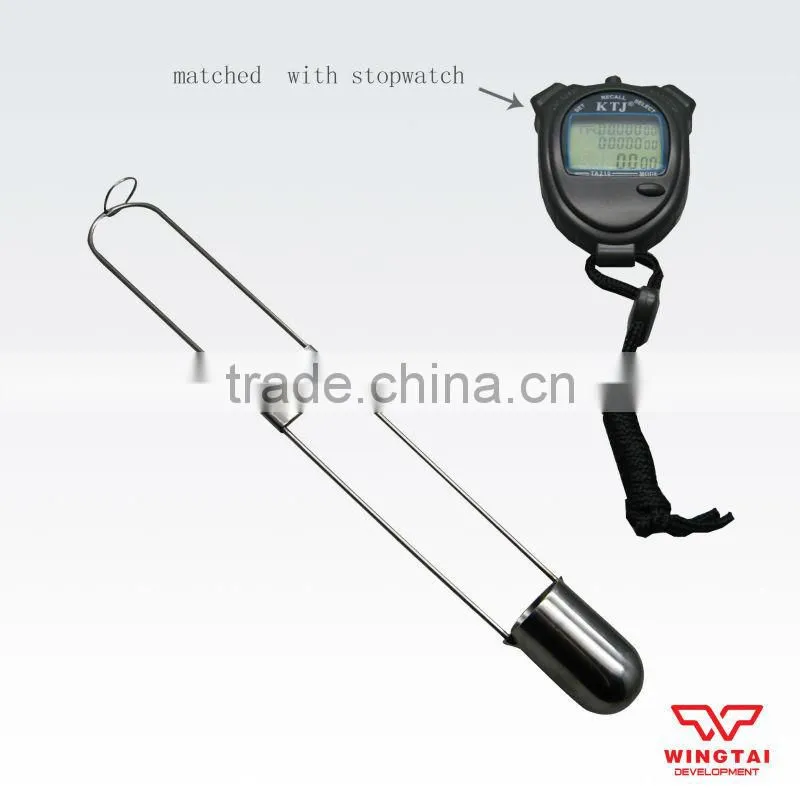

Note : When using you need a stopwatch with relatively high precision.
