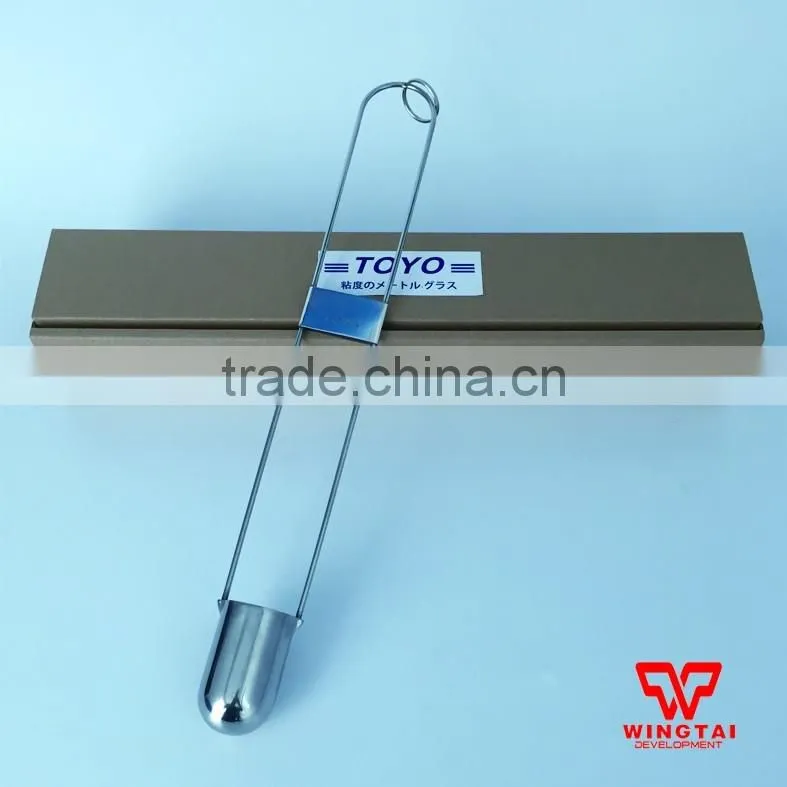

Japan TOYO zahn Viscosity Cup
Technique Parameters:
Cup volume: 44ml
Cup Material: Stainless steel
Net Weight: 0.2kg (0.4 pounds)
Size: 390 * 48 * 37mm
Model: Zahn 2 #, 3 #, 4 #
Origin: Japan
Brand: TOYO

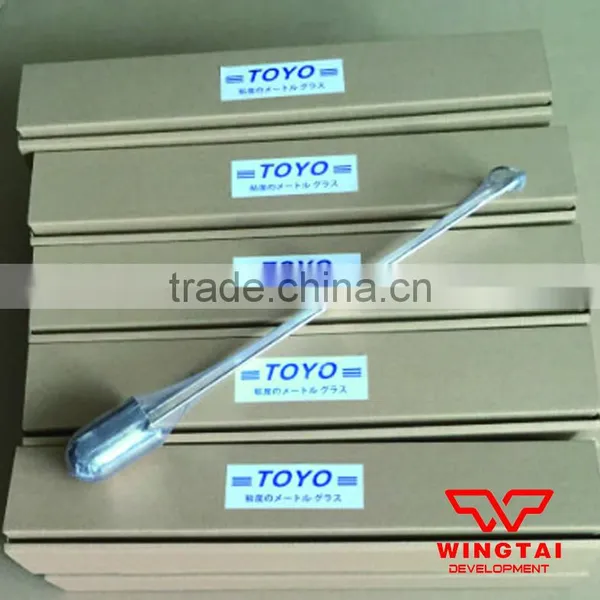

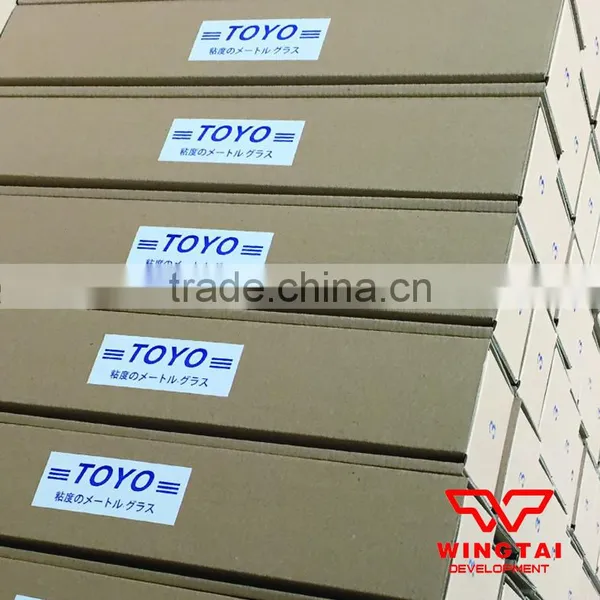

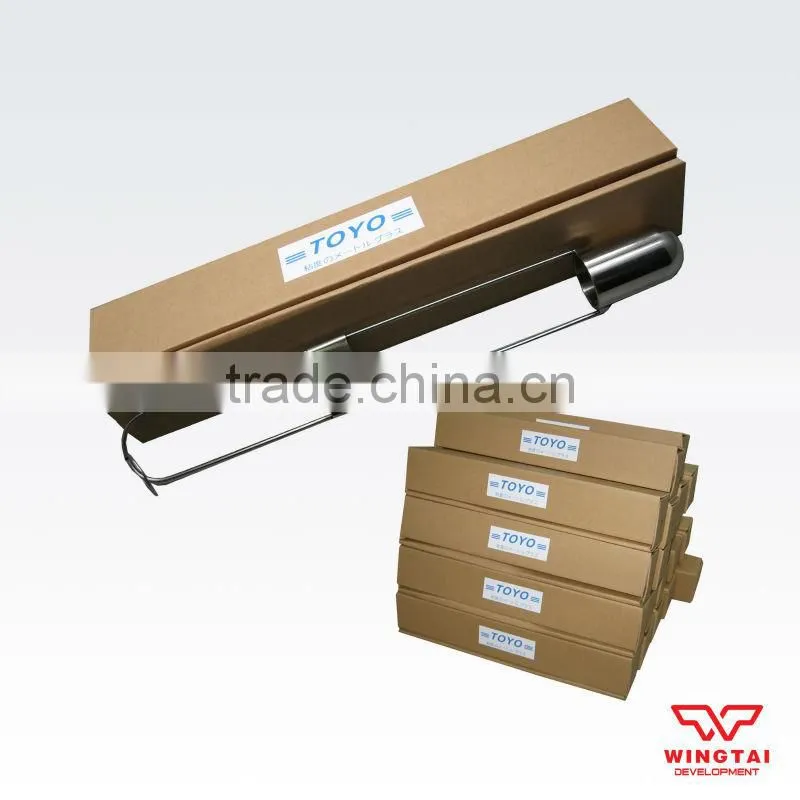

Packaging: environentally friendly paper packaging
Operation theory:
Mainly used for accurate measurement of ink viscosity, accurate color. Japanese technology seiko production, apply to the workshop, the factory or laboratory, for a quick check and adjust a variety of different viscosity of the fluid.
Each dip cup has a ring of 12 inches long handle, with the hand held the handle can be soaking cup into the container.

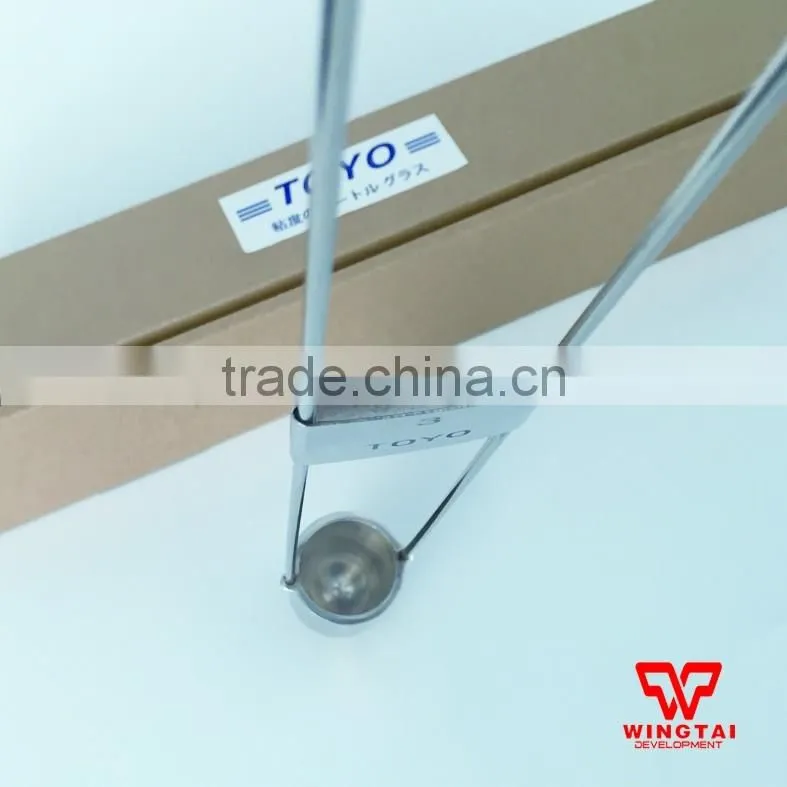

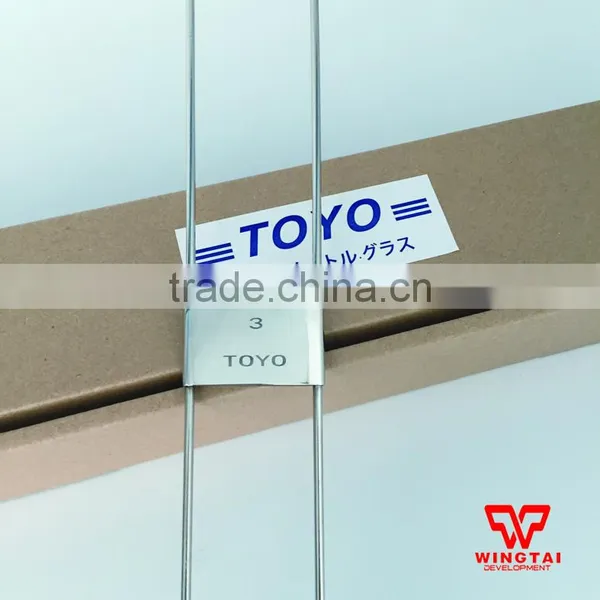

In the center of the handle has a ring shape circle, facilitate cup stays in the process of using vertical position.
For a specific cup leaching results at a specified temperature for "Zahn Cup".
Effect : Accurate measurement of ink viscosity, precise color matching.

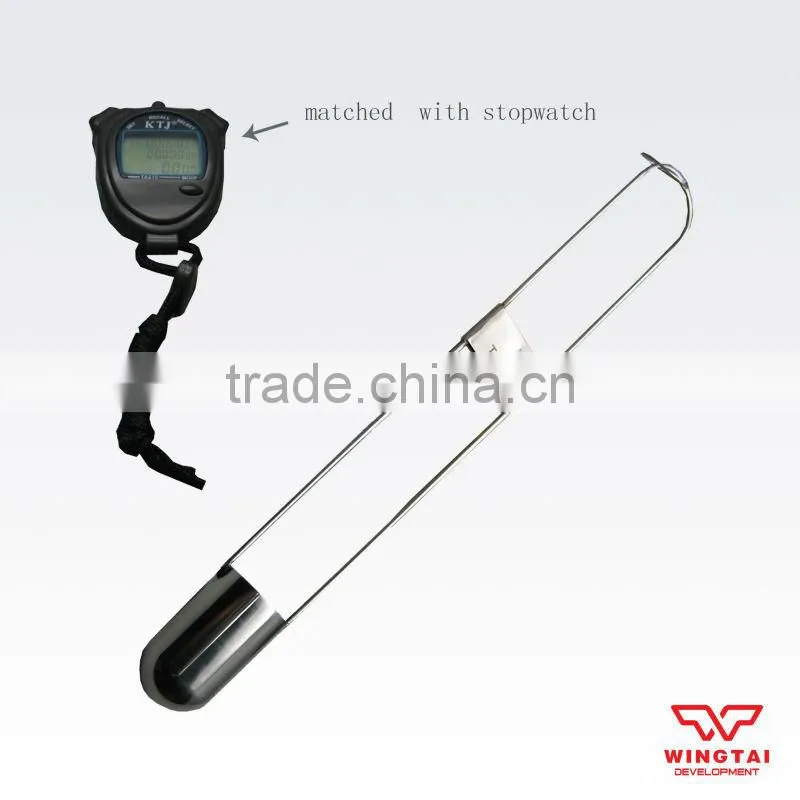

Feature : Stainless steel cup, precision drilling flow mouth, exquisite workmanship, measurement precision, durable (With a stopwatch to use)
Japanese cup aperture parameters :
Before using it you should choose a suitable cup, let the flowing speed at 10~90 seconds and also need a stopwatch with relatively high precision.
Model |
Aperture |
Measurement range (Centistokes) |
Measuring Temperature |
Application |
No 1 |
1mm |
~20 |
Indoor Temperature |
For very dilute liquid |
No 2 |
2mm |
~70 |
For very dilute liquid |
|
No 3 |
3mm |
20~250 |
Suitable for: thin oil, mixed paint, varnish |
|
No 4 |
4mm |
80~700 |
It is suitable for medium viscosity , thick fluid and mixture |
|
No 5 |
5mm |
200~1000 |
Suitable for thick fluid and the mixture |
|
No 6 |
6mm |
400~2000 |
For special viscous fluid and mixture. |
|
No 7 |
7mm |
900~3000 |
For special viscous fluid and mixture. |
Note: A precision stopwatch is needed when testing.
British Zahn cups of technical parameters :
Model |
Aperture (mm) |
Measurement range (cSt) |
Application |
k |
c |
1 |
2 (0.08in) |
Maximum 60 |
For very dilute liquid |
1.1 |
29 |
2 |
2.74 (0.11in) |
20~250 |
Thin oil, mixed paint, varnish |
3.5 |
14 |
3 |
3.76 (0.15in) |
100~800 |
Medium viscosity , thick fluid and mixture |
11.7 |
7.5 |
4 |
4.26 (0.17in) |
200~1200 |
Thick fluid and the mixture |
14.8 |
5 |
5 |
5.28 (0.21in) |
400~1800 |
For special viscous fluid and mixture. |
23 |
0 |
Application:
It is used at any place like workshop, factory or laboratory, rapidly test and adjust the viscosity of different fluid.This viscosity cup is to test the viscosity of Newtonian or similar Newtonian fluid.
Note:
1.Before using it you should choose a suitable cup, let the flowing speed at 10~90 seconds and also need a stopwatch with relatively high precision.
2.See reference aperture parameters table order customer orders.
Wingtai as Japan TOYO viscosity measuring cup China area general agent, focusing on the gravure equipment development and supply, our service will make you a value!
