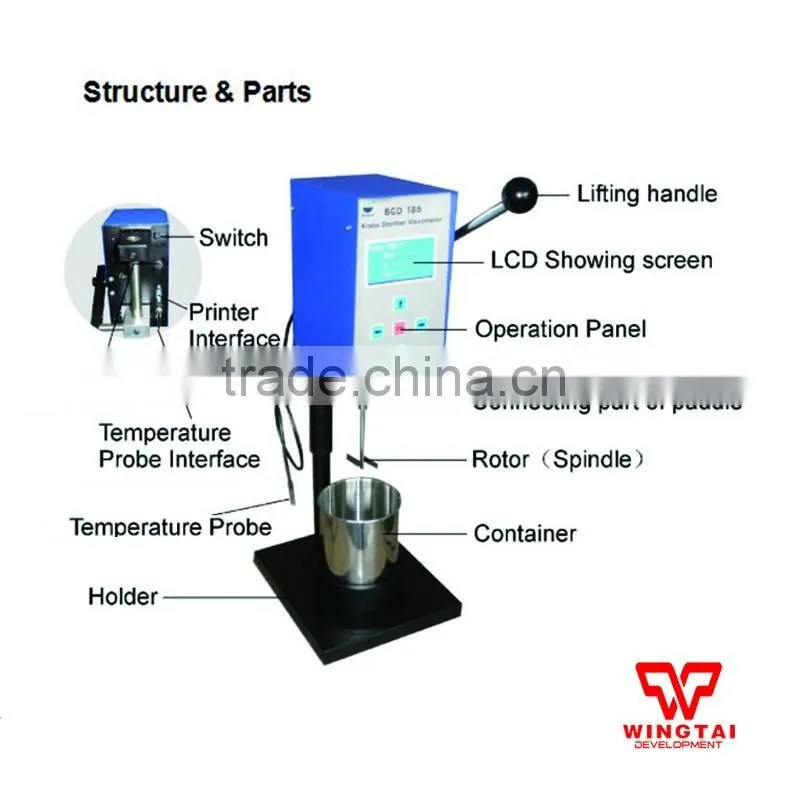

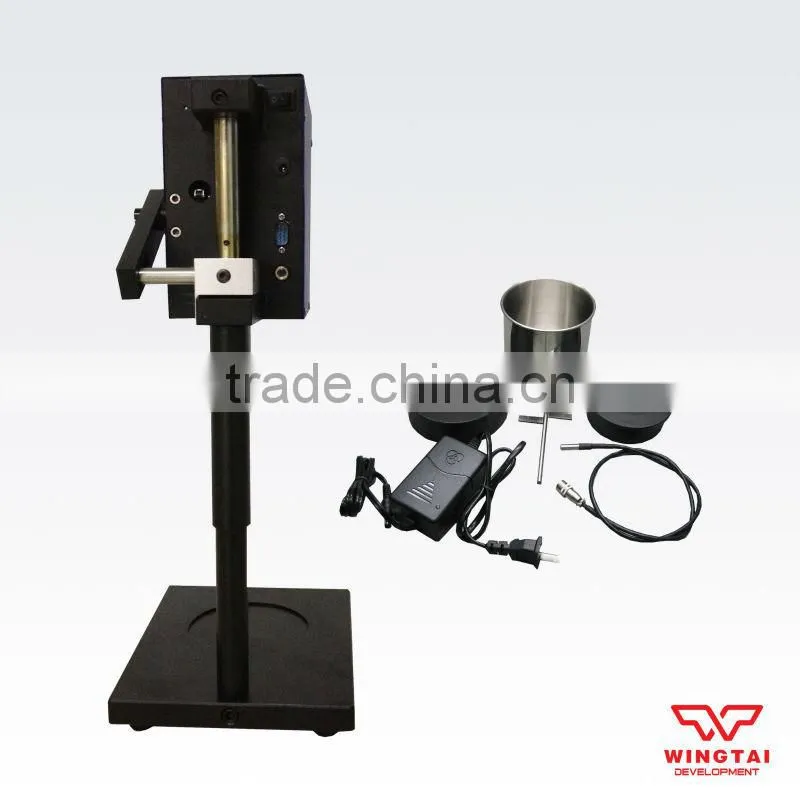

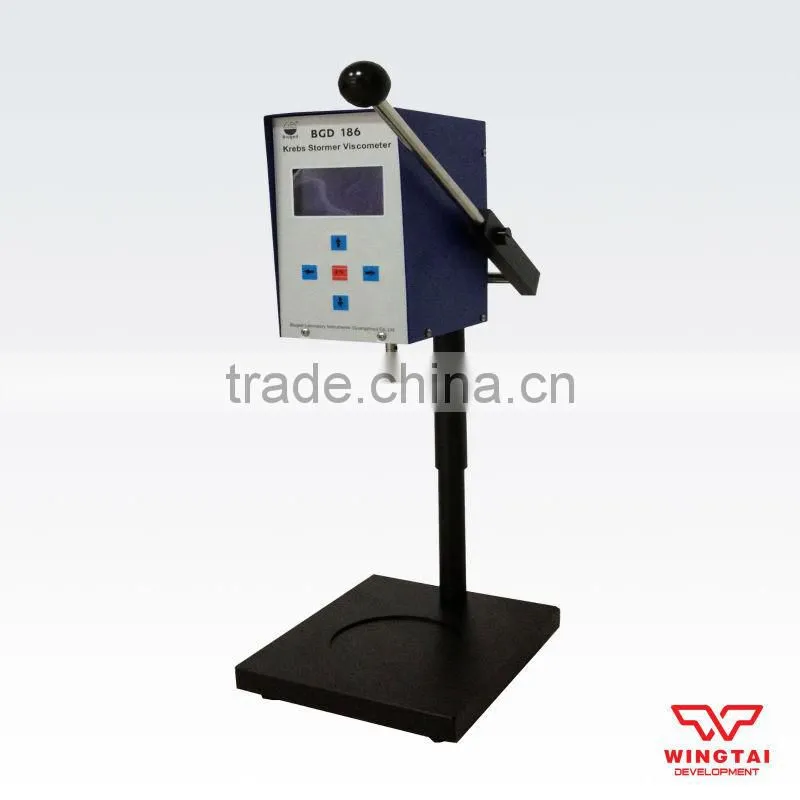

Intelligent Paint KU and CP Value Analyse Viscometer 186



Product Description



 186 intelligent stowe's viscometer is used to measure the paint and other labeled with KU value of viscosity paint test equipment. It is the type 184 stowe's viscometer improvement products, with LCD screen shows at the same time be test sample value, temperature and sample KU CP value.

   This instrument by microcomputer control. Mixing blades constant speed motor drive by special to 200 r/min speed rotation, mixing blades tested samples in the rotation is resistance moment by computer convert in KU value (clay booth Krebs) units (KU) produce 200 r/min speed required load a logarithm function, commonly used to sign used to brush besmear and the viscosity of the roller coating. This instrument of the data plan and related operations right treatment, automatic delete the data of the regional off center, improving the instrument measuring the parameters of the repeatability. The operator simply mixing blades were baptized into the depth of the test sample to regulations, can from the instrument of change on directly read sample KU value and associated with load value.

This instrument design basis for ASTM D 562 standard and GB 9269 standard.



Technical Data



Main Technical Parameters

1. Model No. : 186 ( New improved type based on 184)

2. Reference standard : ASTM D 562 and GB 9269 standard

3. Display KU value , temperature value and CP value of sample which is tested

By LCD screen together .

5. Measure range : 40.2KU~141.0KU (KU value) ; 27-5250 CP

6. Accuracy : ± 2% full scale

7. Reproducibility : ± 1% full scale

8. The magnetic basic plate is convenient to fixup sample receptacle

9. The portable rotor blade connector . The replacing and cleaning of rotor blade is convenient .

10. Mixing shaft speed: 200r/min± 1r/min

11. Receptacle capability : about 500ml

12. Imput voltage : 220V 50Hz

13. Rotor speed : 200r/min±0.5r/min

14. Dimension: 210mm×180mm×500mm ( Length * Width*Height )

15. Net Weight : 7kg



Application



It used to apply in testing paint and other dote which showed KU value to identify Its viscosity . The operator just only immerge the mixing propeller blade into the stated depth of tested sample , then you can read the KU value and interrelated load value .
