Home > Products > Liquid Viscosity Control & Test Device > Ford Viscosity Cup With ASTM D1200 Standard

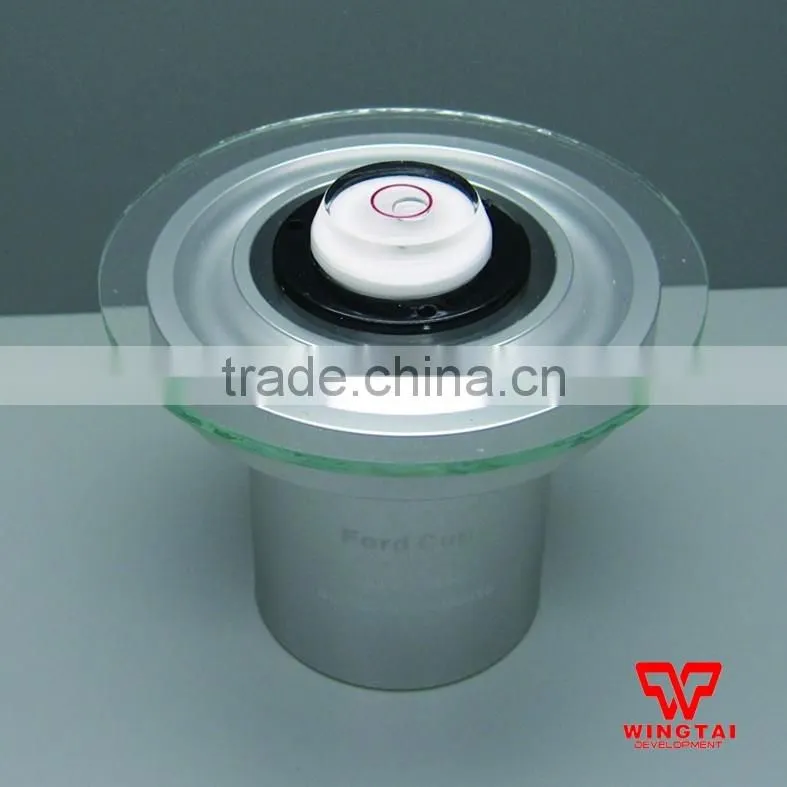

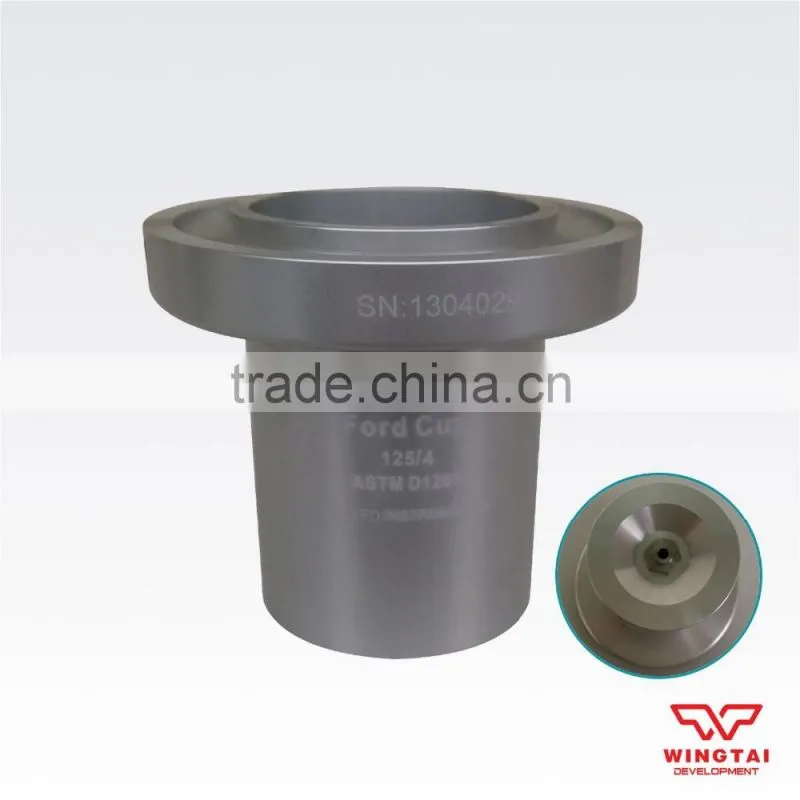

Ford Viscosity Cup With ASTM D1200 Standard
- 5000 Piece / Pieces per Month
- Shantou / Shenzhen
- Credit Card
Product Details
Place of Origin: | United States | Brand Name: | Ford | Model Number: | Ford 2# ,3#, 4# |
Product Description
Ford Viscosity Cup With ASTM D1200 Standard
Technical Parameters:
Model No: 2# ,3#, 4#
Internal diameter:50±0.05mm
Outer diameter:86±0.1mm
Internal orifice length:10±0.1mm
Cup material: aluminum alloy
Internal orifice material: stainless steel
Capacity: 100ml
Description:
Production of paint and raw materials of the American Society for Testing and Materials standard ASTM D1200, D333, D365 standard provisions used to determine the viscosity of inks, coatings, paints.It is opened by the bottom orifice, the refining capacity of 100ml of high-quality aluminum cup.
Ford (Ford) cup to evaluate the viscosity of the material by measuring the time required by the flowing out of the hole in the bottom of a certain volume of the sample of the aluminum cup. Widely used in some countries in Europe and North America.
Characters:
1. It is produced in according to the American paint and raw material Standard ASTM D1200, D333, D365, and it is widely used in the Europe and North America.

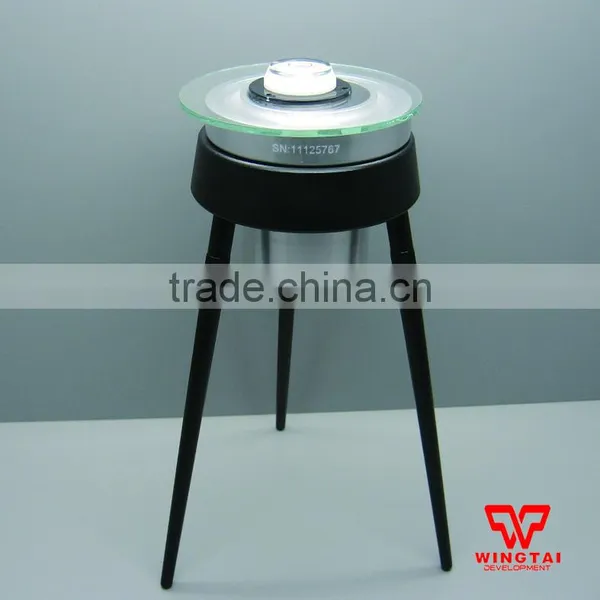

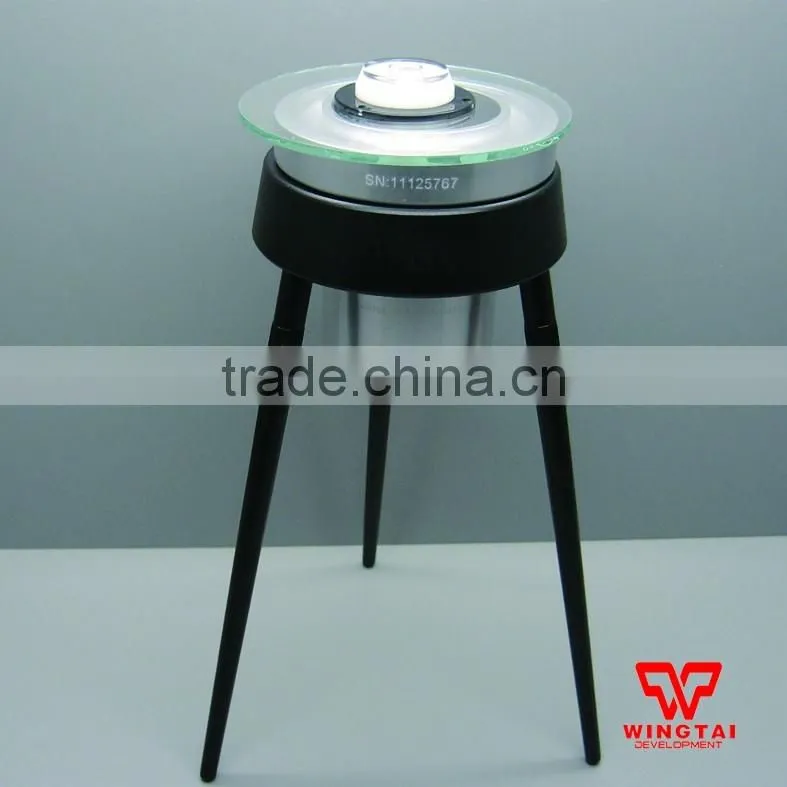

2. With a rack to fix the cup, easy to operate.
Details of each Ford Cups:
Details/Ford cup | Ford Cup 2 | Ford Cup 3 | Ford Cup 4 |
Internal Vertical Height | 43±0.1mm | 43±0.1mm | 43±0.1mm |
Internal Orifice D(mm) | 2.8 mm | 3.4 mm | 4.12 mm |
External Orifice D(mm) | 5.0±0.5mm | 5.5±0.5mm | 6.0±0.5mm |
Centistokes Range | 25-120 | 49-220 | 70-370 |
Efflux Time(sec)±0.2 | 40-100 | 25-105 | 20-105 |
Functions:
It is suitable for measure the viscosity of paints, inks, lacquers and other liquids.
