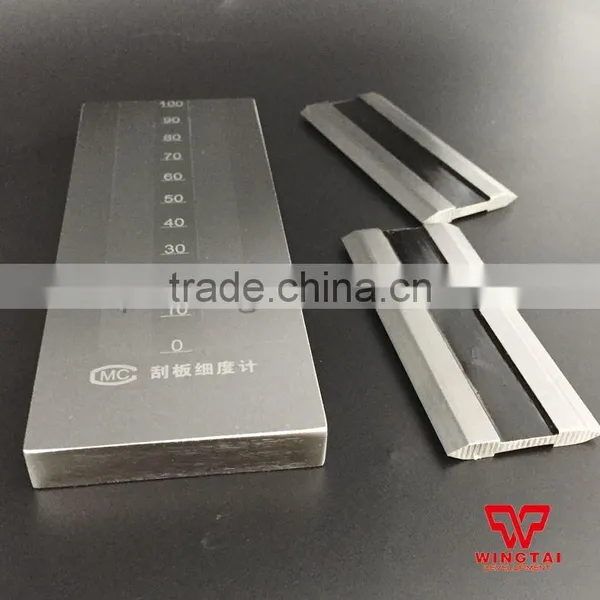

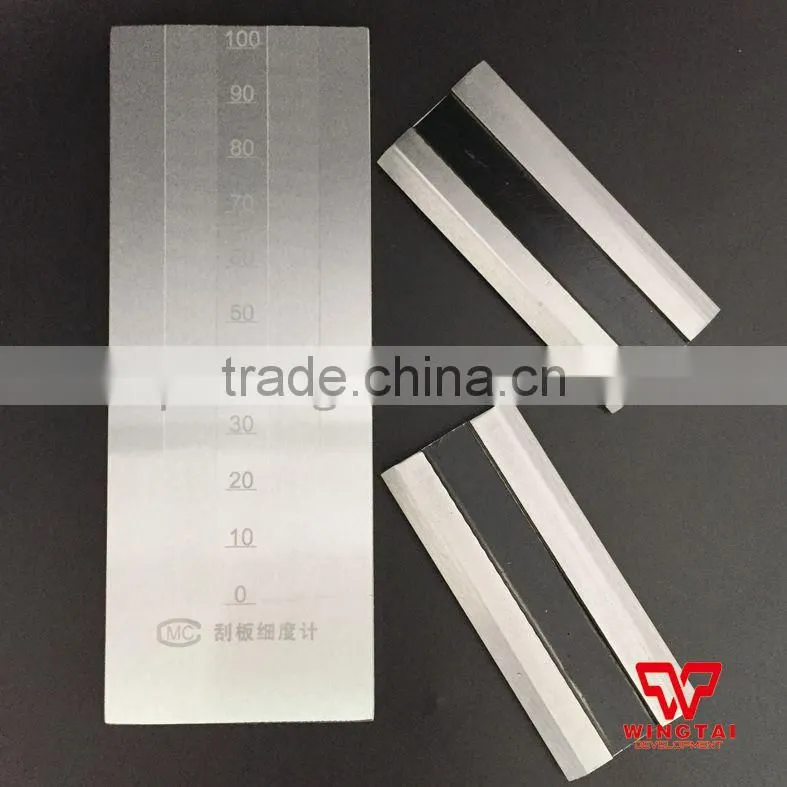

Double Groove 8 Hegman Grindometer Scraper Fineness Grind Gauge
The grind is designed according to standards promulgated by the Ministry of Chemical paint testing methods, grind assays GB / T1724-93 regulations, can be used to test the fineness of colored paint and paint the inner pulp pigments, fillers and magazines particles in microns. Used in colored paints and related products for particle fineness. There are two types: single groove and double groove.
Specification:
1.Scarper blade outside dimensions: L175mm*W65mm*T13mm
2.Effective grinding groove: L140mm*W13mm
3.Scarper sice: L90mm*W40mm*T6mm
Application:
Scraper fineness gauge is widely used in many industries, such as paint, plastic, printing ink, paper, ceramic, medicine, food and so on.
|
Full Scale (μm) |
Minium Scale Value (μm) |
Recember range (μm) |
Single Groove |
100 |
10 |
40-90 |
50 |
5 |
15-40 |
|
25 |
2.5 |
5-15 |
|
Double Groove |
100 |
10 |
40-90 |
50 |
5 |
15-40 |
Precision:
(1) Scarper’s accuracy
|
|
Scale Value |
Groove |
Shape Accuracy |
Surface Roughness |
Remark |
||
Measuring Range (μm) |
Error (μm) |
Specific Value |
Error (μm) |
Any point of both grooves on double groove scarper, its error is no more than 1.2mm |
|||
Single Groove |
100 |
<2.5 |
1:1400 |
<2.5 |
Front |
Front |
|
50 |
<2.5 |
1:2800 |
<2.5 |
Flatness tolerance |
0.1 |
||
25 |
<2 |
1:5600 |
<2 |
0.012 |
Groove |
||
Double Groove |
100 |
<2.5 |
1:1400 |
<2.5 |
Horizontal straightness tolerance |
0.2Ra=1.6 |
|
50 |
<2.5 |
1:2800 |
<2.5 |
0.001 |
|
||
(2) Scarper accuracy: Blade linear tolerance 2μm, surface roughness Ra0.4
Pls contact with the spec you need ! Thanks !
