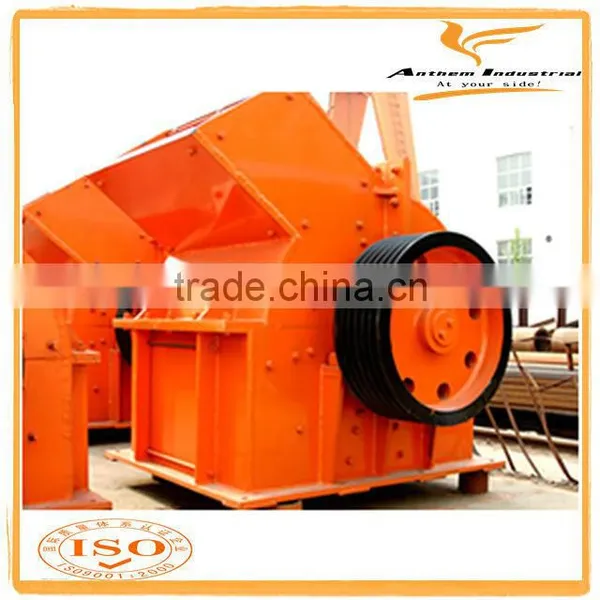

Help CenterHammer Crusher
Related Products
Features of Hammer Crusher:
1. The enhancement rotor is designed with finite element analysis technology.
2. High crushing ratio. The crushing ratio ranges from 10 to 25 or even higher to 50.
3. The AMC alloy hammerhead enjoys a service life increased by 50~150%.
4. The theory of stone hitting effectively reduces the wear load of hammerhead and grid plate.
5. The military high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.
Working Principle of Hammer Crusher:
the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are a series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed will crush them, and the products which are crushed to meet the required size can be discharged by the outlet and become the final products, then the large size products are brought back to the crushing area by the hammers for being re-crushed until they reach the required size.
TECHNICAL DATA
Name |
Model |
Max feed size (mm) |
Handling capacity (t/h) |
Power of motor (kW) |
Weight (t) |
|
PC400×300 |
30 |
5-8 |
11 |
1.5 |
PC600×400 |
100 |
10-15 |
18.5 |
3 |
|
PC800×600 |
150 |
20-25 |
55 |
7 |
|
PC800×1000 |
280 |
20-50 |
110 |
12 |
|
Circuit Type |
PCH0606 |
200 |
18-30 |
30 |
17 |
PCH0808 |
250 |
30-50 |
45 |
29 |
|
PCH1010 |
300 |
45-80 |
90 |
52 |
