Belt Conveyor
Main Technical Parameters:
Belt width(mm) |
Belt |
length(m)/ |
Power(kw) |
Belt Speed(m/s) |
Capacity (t/h) |
400 |
≤12/1.5 |
12-20/2.2-4 |
20-25/3.5-7.5 |
1.3-1.6 |
40-80 |
500 |
≤12/3 |
12-20/4-5.5 |
20-30/5.5-7.5 |
1.3-1.6 |
80-190 |
600 |
≤ 12/4 |
12-20/5.5 |
20-30/7.5-11 |
1.3-1.6 |
131-323 |
800 |
≤6/4 |
6-15/5.5 |
15-30/7.5-15 |
1.3-1.6 |
278-546 |
1000 |
≤10/5.5 |
10-20/7.5-11 |
20-40/11-12 |
1.3-2.0 |
453-853 |
1200 |
≤10/7.5 |
10-20/11 |
20-40/15-30 |
1.3-2.0 |
655 |

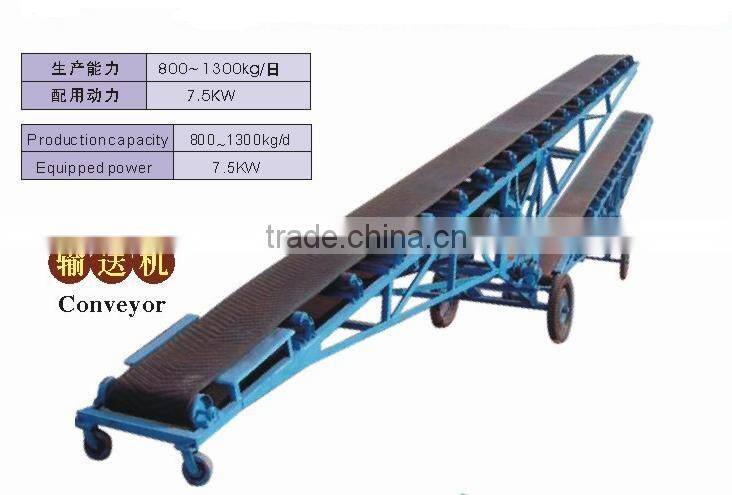

Belt Conveyor
Belt conweyormovable belt conveyor can be applied in wide fields,convenient and easy to move and operate.it can convey both bulk materials and packed goods.it can move in any direction and itsinclination angle can adjust as needed.it can run with a single machine or with several machineunited. the idler roller can be flat or channel type.large transport capacity,long-distance,but also it is widely used in the transportation processwhile completing a number of process operation
Belt Conveyor Usage
1) Belt conveyor is a kind of machinery that to transfer the material continuously by friction drive.
2) According to different transport requirements, the transport system can be single belt conveyor or consists of several conveyors or combined with other conveying equipments. The belt conveyor can be installed horizontally or aslant to meet the needs of different production lines.
