Specifications
30kW methane gas generatorLow gas consumption generator
Low gas content generator
Long overhaul term gas generator
CE ISO

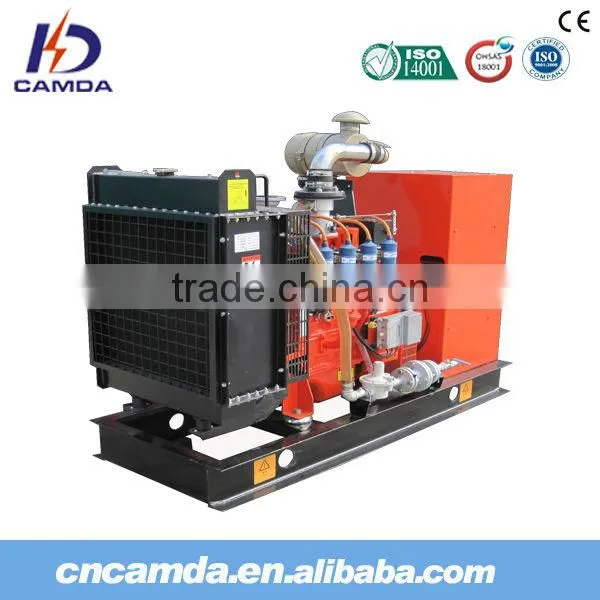

30kW methane gas generator/gas generator set/cogeneration unit
Advantages:
Experiment- evidential gas engine technology
overhaul term: 18000~25000 hours
Over 85% cogeneration efficiency
Economical and low-cost running: lower gas and oil consumption
Genset working condition:
Ambient temperature : 0°C~+40°C, ambient below 0°C need special design.
(antifreeze or hot water needed for below -20°C)
Relative humidity:<90%(20°C)
Altitude:≤1000m
Fuel gas quality requirement
Applicable gas: Natural Gas, Biogas, LPG, Coal-bed Gas
Gas temperature≤40°C
Acceptable gas engine pressure: 2~10kPa
Impurities content≤30mg/Nm3;size≤5μm
Water content≤40g/Nm3, no free water.
Gas genset data | |||
Genset model |
KDGH30-G |
||
Prime power (kW/KVA) |
30/37.5 |
||
Continuous power (KW/KVA) |
24/30 |
||
Connection (V) |
3 Phases 4 Lines |
||
Power factor cosfi |
0.8 lagging |
||
Frequency (Hz) |
50 |
||
Rated speed (RPM) |
1500 |
||
Open type Genset Overall Dimension (mm) |
1800x720x1280 |
||
Soundproof type Genset Dimension (mm) |
2300x1050x1700 |
||
Net weight without canopy(kg) |
900 |
||
Gas Engine Data | |||
Model |
HG4B |
||
Brand |
CAMDA |
||
Type |
4 stroke, water-cooling, dry cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning |
||
Cylinders& Arrangement |
4L |
||
BoreXStroke(mm) |
102X120 |
||
Displacement(L) |
3.92 |
||
Compression ratio |
11.5:1 |
||
Aspiration |
Natural |
||
Cooling Method |
Radiator fan water cooling |
||
Governor type(speed regulating type) |
Electronic governing |
||
Starting method |
Electric, 24 V motor |
||
The lowest gas consumption(m3/kw.h) |
0.3 for natural gas/0.6 for biogas |
||
Idling speed(r/min) |
700 |
||
Oil recommended |
SAE 15W-40 CF4 or above |
||
Oil consumption |
≤1.0g/kW.h |
||
Alternator Data | |||
Brand |
France Leroy Somer |
||
Model |
LSA42.3S5/ 32KW |
||
Rated power |
32kW / 3 phase |
||
Rated Voltage (V): |
380~480 (±0.5%)(AC) |
||
Type |
3 phase/4 wire, brushless, automatic voltage regulator, drip proof, protected type. |
||
Frequency (Hz) |
50 |
||
Efficiency |
89.9% |
||
Voltage regulation |
± 0.5 %(adjustable) |
||
Insulation class |
Class H |
||
Protection class: |
IP 23 |
||
cooling method |
wind-cooling, self-heat-rejection |
||
Voltage regulating mode |
Automatic voltage regulator |
||
Compliant with international standards: |
IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA, UL 1446, UL 1004B on request, marine regulations, etc. |
||
