Biogas Scrubber/ Biogas purification system/ Biogas purifier/ Biogas pretreatment system

Specifications

Biogas Scrubber/Biogas purification system/Biogas purifier/Biogas pretreatment system use for 20KW-500KW biogas generator.

Biogas Scrubber/ Biogas purification system/ Biogas purifier/ Biogas pretreatment system



1.Application field and Environment for Biogas Scrubber System

The skid-mounted Biogas Scrubber/ Biogas purification system/ Biogas purifier/ Biogas pretreatment system adopts the dry desulfurization system which is applicable for small industrial devices whose H2S is less than 2000ppm. The biggest skid-mounted pre-treatment system can deal with 300Nm3/h biogas and we suggest it to be used in farmland which can equipped with CHP system. In the industrial waste water biogas project, if the devices has to run long time in a day, the H2S is high and has to synchronize with the nation grid, the biogas dry desulfurization system has to be designed specifically.



The working area ambient temperature should be in the range of 0 ~ 50 °C due to the drained water from the pre-treatment. If there is any underground sewage wells, the system has to anti-freezing and anti-cracking. This system is better to be installed in a well-ventilated room.

The application domains equipped with small biogas generator set:

Pig farm with more than 3000 pigs

Cow farm with more than 500 cows

Chicken farm with more than 10000 chicken

Biogas collected from more than 200 peasant households can be used to generate electricity.

2. The Main Technique Specifications of  Biogas Scrubber/Biogas purification system/Biogas purifier/Biogas pretreatment system



Biomass Treatment System Specifications
KDCL-50 series Biomass Pre-treatment System
1. Main Specificstions
Model	KDCL-50-WQ
The suitable genset power	20KW-50KW
Dimension	2000×1600×2160 (mm)
Weight	2000kg
Gas flow	40~80Nm3/hr
Working pressure	4~40KPa
Desulfurizer amount	2×200kg
The changing time of desulfurizer	1500 hours
Parts per million after purifying	200ppm
The designed lifetime	15years
2. The Main Equipment
1. Name	Desulfurizing tower
Qty	2 unit
Model	KDTL-250-G
Specificstions	Φ500×1880
Function	Desulfurization
2. Name	Separator
Qty	1unit
Model	KDFC-200-G
Function	1. Gas buffter; 2. De-Dust
3. Name	Water condenser
Qty	1unit
Model	KDYS-20-G
Function	De-water before desulfurizing tower
4. Name	Blower
Qty	1unit
Model	NSR50-50A
Specificstions	1.1KW
Function	Increase pressure and steady pressure
3. The main function of this system
1. Desulfurization
2. De-dust
3. De-water
4. Increase pressure
5. Stabilize pressure
6. Change desulfurizer without stopping genset

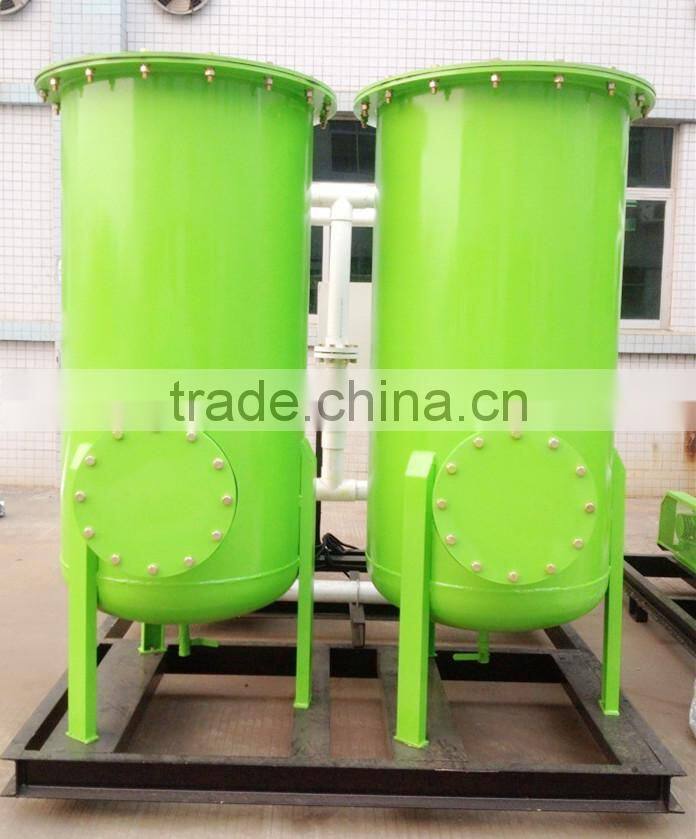

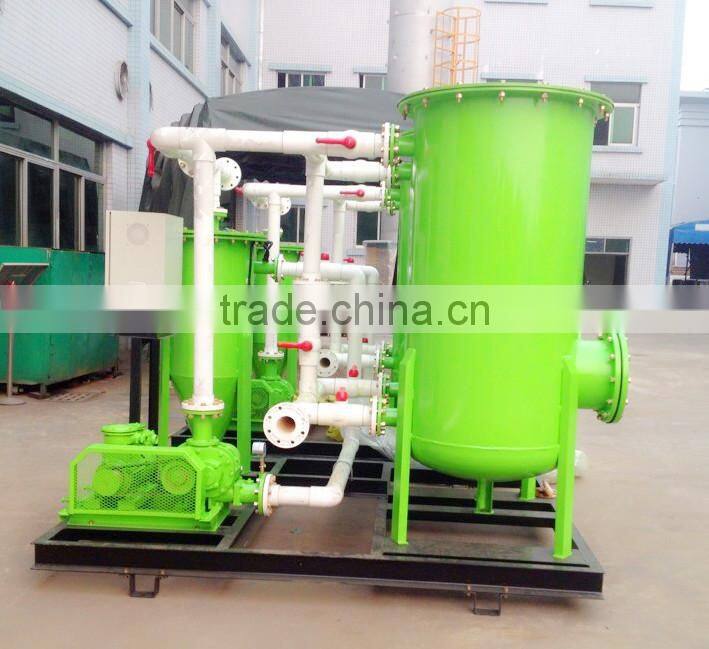

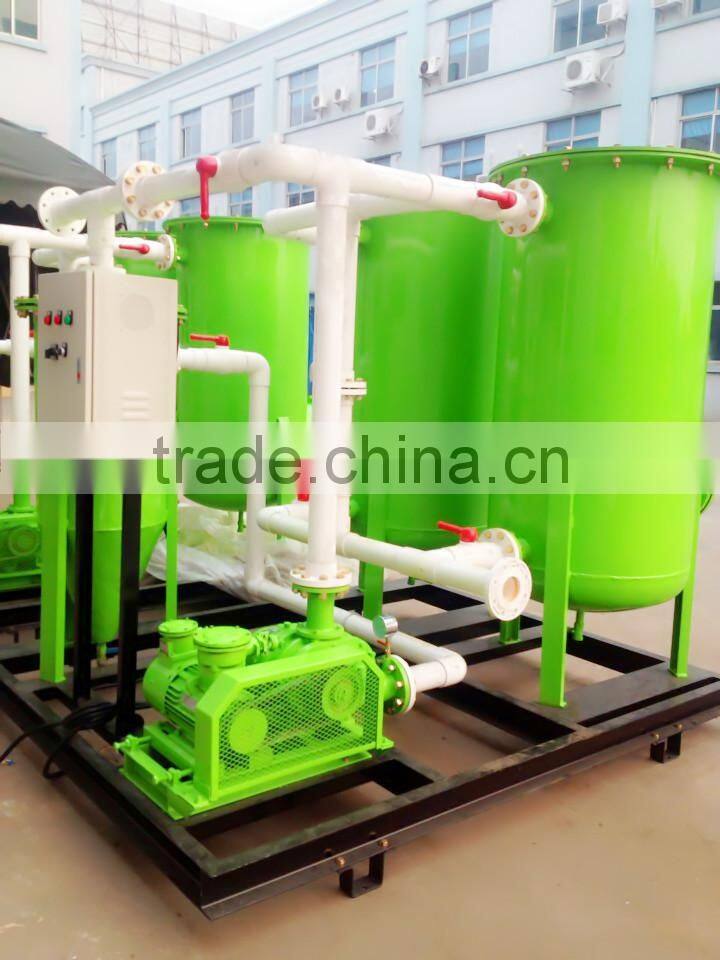

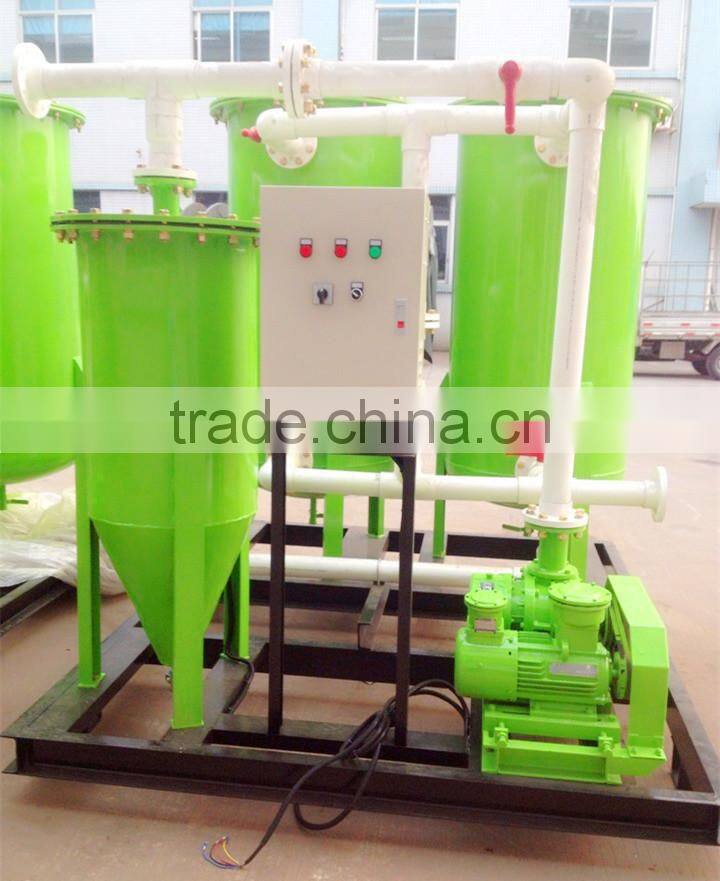

3. Photos of  Biogas Scrubber/Biogas purification system/Biogas purifier/Biogas pretreatment system

4. ISO and CE Certificates of  Biogas Scrubber/Biogas purification system/Biogas purifier/Biogas pretreatment system

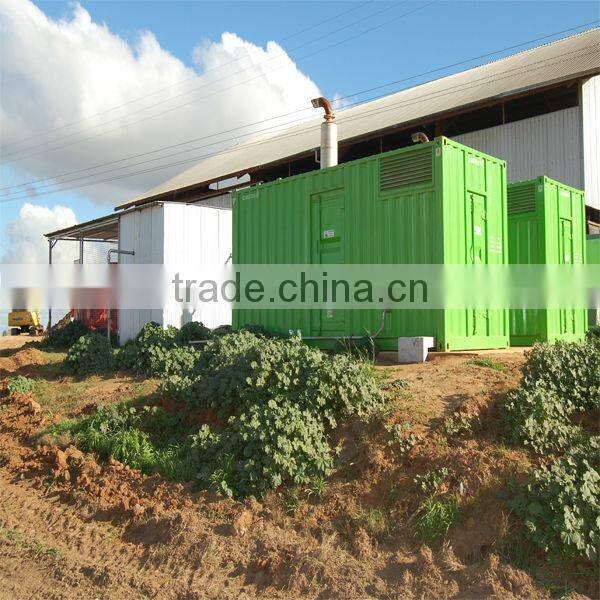

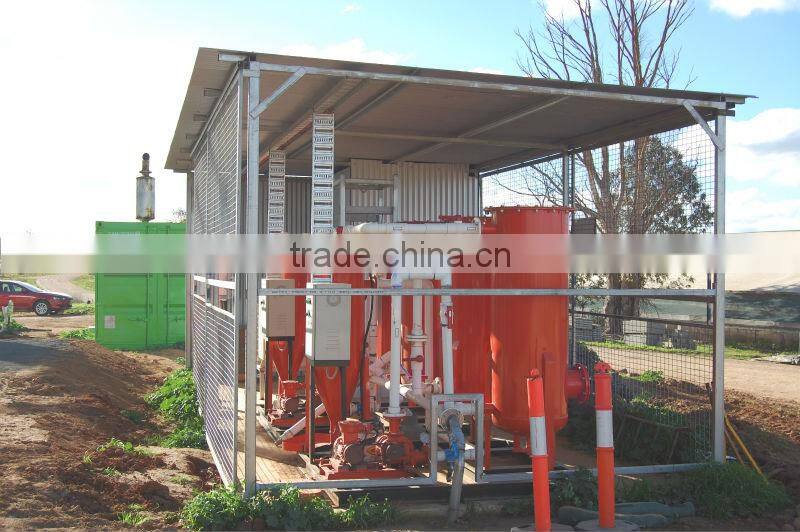

5. Some Biogas Power Plant Photos with  Biogas Scrubber/Biogas purification system/Biogas purifier/Biogas pretreatment system
