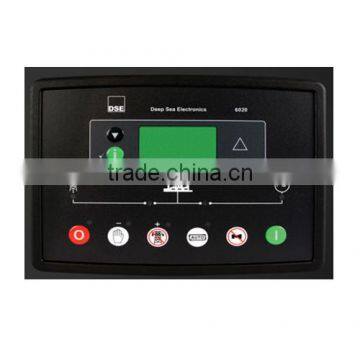

UK Deep Sea Control Panel/ Control System/ Generator controller/ Synchronization control panel

Specifications

UK Deep Sea Control Panel/ Control System/ Generator controller/ Synchronization control panel, good quality,cheap price.

UK Deep Sea Control Panel/ Control System/ Generator controller/ Synchronization control panel











UK Deep Sea Control Panel/ Control System/ Generator controller/ Synchronization control panel

Key recommendation . Powerful high-end mains failure from the start module
AMF + ATS + communications + extension + PLC logic functions
Support for 12 languages
All parameter display engines, generators , power mains and crew
Mains failure from the start control module , DSE7320 is to increase the electricity monitoring function on the basis of DSE7310 ; used to control non- EFI and EFI gas engine , providing advanced detection and protection engine
The series is the perfect example of industrial design , not only beautiful shape , high performance, and powerful , and the design panel and menus easy to understand, easy to operate. Improved features include a real-time clock , event logging , and to strengthen monitoring ; Ethernet communication can reduce monitoring costs ; maintenance function sounds an alarm to alert the operator in a major accident before the engine
Modules include USB, RS232 and RS485 interfaces as well as for the expansion of DSENET port. Remote monitoring or network monitoring easier and more timely
Module includes 12 inputs and 8 outputs , the program can be set by the panel and the PC software suite
• with manual / automatic function
• Communication with AMF + ATS + + extensions
• Support for non- EFI EFI engine and gas
• Engine parameters: speed, oil pressure , water temperature, battery voltage, fuel level % , operating hours , number of starts motor voltage and charging
• generator parameters : frequency, phase voltage (LL, LN) and three-phase currents
• Power parameters : KVA, KW, PF, KVAR, KWh, KVAH and KVAR
• Mains parameters : frequency, phase voltage (LL, LN)
• Support for 12 languages and display content can be edited ( including Chinese )
• Polish, German, French , Dutch, American English , Portuguese, Swedish, Thai, Turkish, Spanish, Italian, Spanish ( Mexico ) and Chinese
• Alarm classification : pre-alarm , electrical tripping and downtime
• manual control fuel pump
• Manual control engine speed ( EFI engine )
• The preset running time ( the unit requires regular startup, maintenance operation )
• maintenance cycle can be preset function ( 250 hours of engine operation , the need to change the three filters , etc. )
• You can upgrade the software on their own firmware version ( eg : upgrade from version 3.0 to version 5.0 )
• With the engine , generator monitoring and protection functions
- Engine speed, engine oil pressure, engine coolant temperature , battery voltage , generator voltage
- Generator current engine frequency
• Simultaneous with RS232 and RS485 communication port
• Support for Modbus RTU communication protocol
• A PLC logic function ( supports up to 50 steps )
• Sleep power-saving mode
• grading rejection set - Load / grading plus dummy load ( load box )
• If the mains without detection , can be set to disable mains detection
• cancel all protection functions
• 250 event records ( with date and time )






Speed Sensor Frequency Range : 1Hz-10KHz
Speed sensor voltage range: Min + /-0.5V ( during startup )-70V
Fuel Relay Output A: 15Amp DC output
Start Electrical output B: 15 Amp DC output
Relay outputs C and D: 8Amp 250V passive contact output
Customize output E, F, G and H: 2Amp DC output
Dimensions : 240mm * 181.1mm * 41.7mm
Panel hole size : 220mm * 160mm
