CH4 Gas Generator Plant 24KW-1000KW
Camda CH4 gas generator from 24KW-1000KW,the main gas content is CH4, can use natural gas & biogas& lpg& coal gas, economical, environmentally friendly, and can be used for gas power generation on restaurant rubbish, breeding field, stockfarm,and landfill, etc, and has much high quality & performance ratio.
At present with outstanding cost performance, original American products quality, but nearly the same price with domestic products, it is quite popular during our customers, especially in United Kingdom, Russia, Bangladesh, Colombia, Iran, Australia , Indonesia , Thailand ,France,Germany,and other countries.
CH4 gas generator specifications
| Gas Generator Set Parameters | ||||||||
| Model Item | KDGH30-G | KDGH50-G | KDGH80-G | KDGH120-G | KDGH200-G | KDGH300-G | KDGH500-G | |
| Rated power | KW | 30 | 50 | 80 | 120 | 200 | 300 | 500 |
| KVA | 37.5 | 62 | 100 | 150 | 250 | 375 | 625 | |
| Rated Voltage (V) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Rated Current (A) | 54.1 | 90.2 | 144.3 | 216.5 | 360.9 | 541.3 | 902.1 | |
| Voltage Stabilized Regulation | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | |
| Voltage Instantaneous Regulation | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | |
| Voltage Recovery Time (S) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Voltage Fluctuation Ratio | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Frequency Fluctuation Ratio | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Generator Insulation Class | H | H | H | H | H | H | H | |
| Noise Level (Db) | ≤95 | ≤95 | ≤98 | ≤98 | ≤100 | ≤100 | ≤102 | |
| Engine Model | HG4B | HG6B | HGN14 | HGN14 | HGNT14 | HGK19 | HGK38 | |
| Aspration | Natural | Natural | Natural | Natural | Turbocharged | Turbocharged | Turbocharged | |
| Inline | V type | |||||||
| Four stroke, electronic-control spark plug ignition, water-cooling, premix proper ratio of air and gas before combustion | ||||||||
| Cooling Mode | Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit | |||||||
| Cylinders | 4 | 6 | 6 | 6 | 6 | 6 | 12 | |
| Bore X Stroke (mm) | 102*120 | 102*120 | 140*152 | 140*152 | 140*152 | 159*159 | 159*159 | |
| Displacement (L) | 3.92 | 5.88 | 14 | 14 | 14 | 18.9 | 37.8 | |
| Compression Ratio | 11.5:1 | 11.5:1 | 11 : 1 | 11 : 1 | 11 : 1 | 11 : 1 | 11 : 1 | |
| Rated Power (Kw) | 36 | 56 | 145 | 145 | 230 | 336 | 570 | |
| Rated Speed (r/Min) | 1500 | |||||||
| Fuel | Natural Gas / Biogas | |||||||
| Gas Consumption (MJ/Kw·h) | 12 | 11.9 | 11.8 | 11.8 | 11.2 | 10.9 | 10.5 | |
| Idling Speed (r/Min) | 700 | |||||||
| Oil Recommended | API service grade CD or higher SAE 15W-40 CF4 | |||||||
| Oil Consumption | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤0.5g/kW.h | |
| Exhaust Temperature | ≤ 680°C | ≤ 680°C | ≤ 650°C | ≤ 650°C | ≤ 600°C | ≤ 600°C | ≤ 550°C | |
| Net Weight (Kg) | 900 | 1100 | 2225 | 2525 | 2525 | 3380 | 6080 | |
| Dimension (Mm) | 1850*750 *1500 | 2250*820 *1500 | 3000*1100 *1800 | 3150*1100 *1800 | 3150*1100 *1800 | 3470*1230 *2300 | 4400*2010 *2480 | |

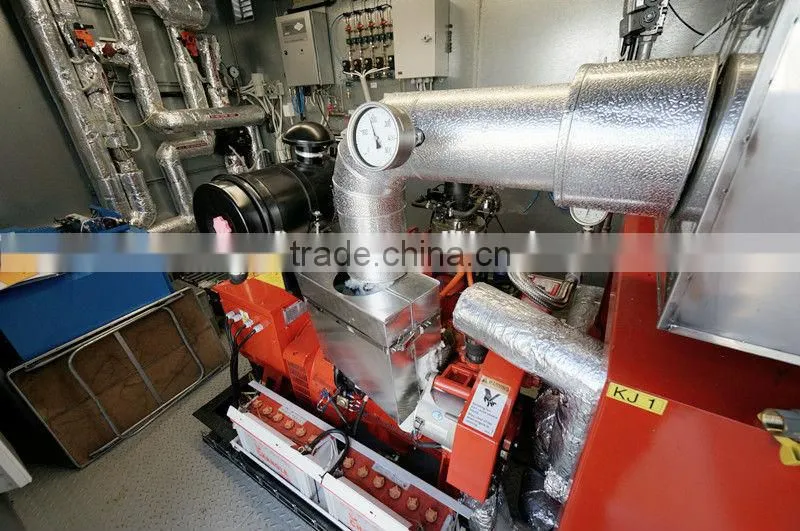

CH4 Gas Power Generation Project Of Russia

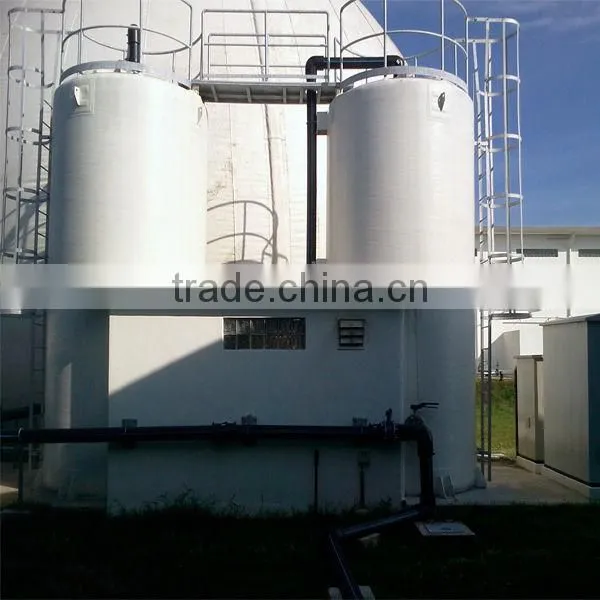

CH4 Gas Power Generation Project Of Kenya

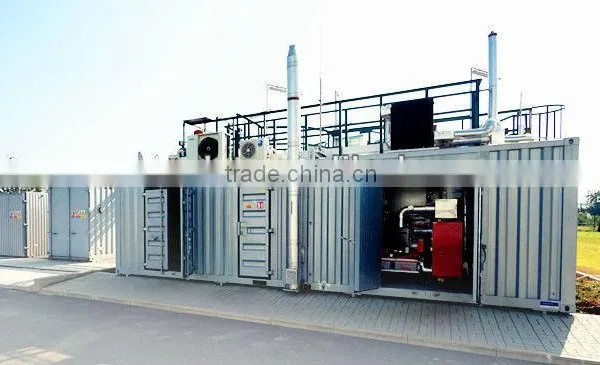

CH4 Gas Power Generation Project Of Malaysia

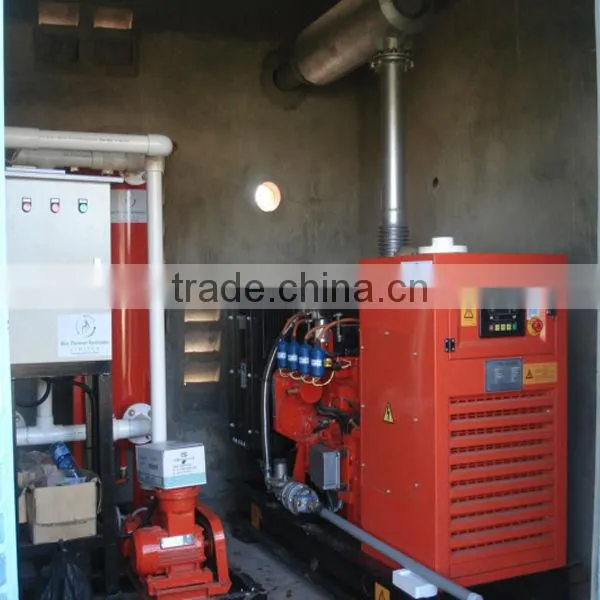

CH4 Gas Power Generation Project Of Czech Republic
Camda Generator International Certificates
Camda Company and Factory Photos
