Turnkey Poultry Waste Treatment 250KW Biogas Cogeneration Power Plant CE/ISO Approved Gas Generator ManufacturerTurnkey Poultry Waste Treatment 250KW Biogas Cogeneration Power Plant CE/ISO Approved Gas Generator Manufacturer
Turnkey Poultry Waste Treatment 250KW Biogas Cogeneration Power Plant CE/ISO Approved Gas Generator Manufacturer can use natural gas & biogas& lpg& coal gas, economical, environmentally friendly, and can be used for gas power generation on restaurant rubbish, breeding field, stockfarm,and landfill, etc, and has much high quality & performance ratio.
At present with outstanding cost performance, original American products quality, but nearly the same price with domestic products, it is quite popular during our customers, especially in United Kingdom, Russia, Bangladesh, Colombia, Iran and other countries.
When we exhibited it at October 2009 Iran International Electric Power Exhibition China Import and Export Fair and at 2011 Middle East Electric Power Exhibition, many customers are interested in it and ordered this type on the spot.
Besides, when you attend the World Expo in Shanghai this time, you will find it being showed in Britain exibition hall.
| Camda H Series Gas Generator Set Parameters | ||||||||
| Model Item | KDGH30-G | KDGH50-G | KDGH80-G | KDGH120-G | KDGH200-G | KDGH300-G | KDGH500-G | |
| Rated power | KW | 30 | 50 | 80 | 120 | 200 | 300 | 500 |
| KVA | 37.5 | 62 | 100 | 150 | 250 | 375 | 625 | |
| Rated Voltage (V) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Rated Current (A) | 54.1 | 90.2 | 144.3 | 216.5 | 360.9 | 541.3 | 902.1 | |
| Voltage Stabilized Regulation | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | ≤±1.5% | |
| Voltage Instantaneous Regulation | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | ≤±20% | |
| Voltage Recovery Time (S) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Voltage Fluctuation Ratio | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Frequency Fluctuation Ratio | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Generator Insulation Class | H | H | H | H | H | H | H | |
| Noise Level (Db) | ≤95 | ≤95 | ≤98 | ≤98 | ≤100 | ≤100 | ≤102 | |
| Engine Model | HG4B | HG6B | HGN14 | HGN14 | HGNT14 | HGK19 | HGK38 | |
| Aspration | Natural | Natural | Natural | Natural | Turbocharged | Turbocharged | Turbocharged | |
| Inline | V type | |||||||
| Four stroke, electronic-control spark plug ignition, water-cooling, premix proper ratio of air and gas before combustion | ||||||||
| Cooling Mode | Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit | |||||||
| Cylinders | 4 | 6 | 6 | 6 | 6 | 6 | 12 | |
| Bore X Stroke (mm) | 102*120 | 102*120 | 140*152 | 140*152 | 140*152 | 159*159 | 159*159 | |
| Displacement (L) | 3.92 | 5.88 | 14 | 14 | 14 | 18.9 | 37.8 | |
| Compression Ratio | 11.5:1 | 11.5:1 | 11 : 1 | 11 : 1 | 11 : 1 | 11 : 1 | 11 : 1 | |
| Rated Power (Kw) | 36 | 56 | 145 | 145 | 230 | 336 | 570 | |
| Rated Speed (r/Min) | 1500 | |||||||
| Fuel | Natural Gas / Biogas | |||||||
| Gas Consumption (MJ/Kw·h) | 12 | 11.9 | 11.8 | 11.8 | 11.2 | 10.9 | 10.5 | |
| Idling Speed (r/Min) | 700 | |||||||
| Oil Recommended | API service grade CD or higher SAE 15W-40 CF4 | |||||||
| Oil Consumption | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤1.0g/kW.h | ≤0.5g/kW.h | |
| Exhaust Temperature | ≤ 680°C | ≤ 680°C | ≤ 650°C | ≤ 650°C | ≤ 600°C | ≤ 600°C | ≤ 550°C | |
| Net Weight (Kg) | 900 | 1100 | 2225 | 2525 | 2525 | 3380 | 6080 | |
| Dimension (Mm) | 1850*750 *1500 | 2250*820 *1500 | 3000*1100 *1800 | 3150*1100 *1800 | 3150*1100 *1800 | 3470*1230 *2300 | 4400*2010 *2480 | |

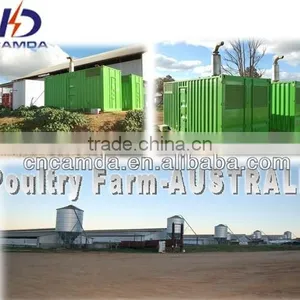

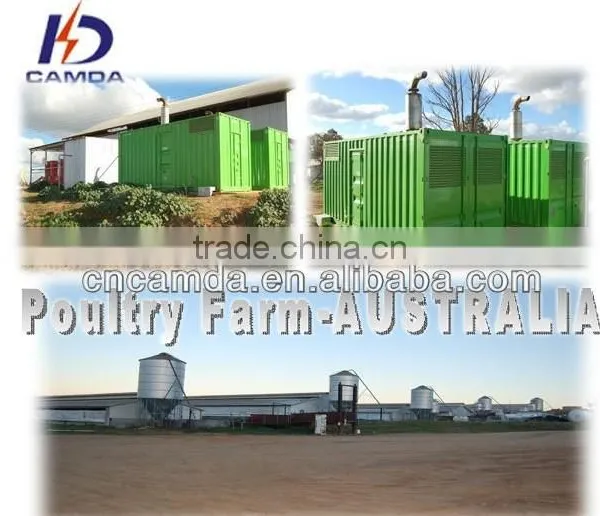

BIOGAS GENERATOR POWER PLAN PICTURES
BIOGAS GENERATOR POWER PLAN QUALITY CONTROL CERTIFICATES
THE MAIN SPARE PARTS OF BIOGAS GENERATOR POWER PLAN EQUIPMENTS
