Advantages For Biogas Electric Generator (Camda gas engine based)
Natural gas and biogas as fuel
CE,ISO international quality control certificate approval
Low operation cost
Low gas consumption
1.Adopt gas engine block,so the instructure is very strong. Also it is easy for customer to get maintenance spare parts.
2. Adopt advanced Hall ignition sensor and Highly capable USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
3. Adopt ComAp Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
4.The gas inlet pressure is only 2~12kPA,so almost all city pipe gas pressure can be satisfied,not to mention biogas. So there is no need for customer to install blower to increase pressure and save cost for you.
5. Electrical Air/Gas mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
6. Long designed overhaul term: 25000~30000 hours
7. Comply with CE standard, ISO9001:2008 quality management system, ISO14001:2004 and OHSAS 18001:2007.
Genset working condition |
Ambient Temp 0°C~+40°C, Relative Humidity <90%(20°C), Altitude ≤1000m above sea level.
A. Natural gas
1. Adapted Gas: Natural gas,
2. Acceptable Natural gas pipeline pressure: 5~12kPa (before Pressure Regulating Valve.)
3. Gas heat value≥37MJ/Nm3 .
B. Biogas
Acceptable biogas pipeline pressure: 5~12kPa (adjustment required for higher pressure), change ratio≤1kPa/min
CH4 volume content≥30%, adjustment ratio≤2%/min
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3). Genset output power will increase as the gas heat value increase, and if low heat value gas is used (Heat value<5500kcal/Nm3), it could cause power derate.
H2S content≤200mg/Nm3
NH3 content≤20mg/Nm3
CAMDA Cummins based Gas Genset/Gas Engine/Gas Generator Set |
ENGINE DETAILS | |
Engine Brand |
Cummins |
Engine Type |
HGNT14 |
Genset Continuous power (e.KW) |
150 |
Bore×Stroke |
140mmX152mm |
Displacement |
14 Litres |
Compression Ration |
11:1 |
Aspiration |
Turbo |
Cooling Method |
Radiator fan water cooling |
Governor type(speed regulating type) |
Electronic governing |
Starting method |
Electric, 24 V motor |
The lowest gas consumption(g/kW.h) |
≤230 |
Idling speed(r/min) |
700 |
Oil recommended |
SAE15W-40CD, oil for CNG |
Oil consumption |
≤1.5g/kW.h |
B. Standard Scope of Supply:
1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by Cummins with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature
5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
C. Optional:
1. Sound-proof canopy
2. CHP system
3. Grid parallel system
4. Remote radiator
5. Auto oil filling system
6. Water heater
7. Oil heater
8. Gas leaking detector
9. Flame detector
10. Gas scrubber

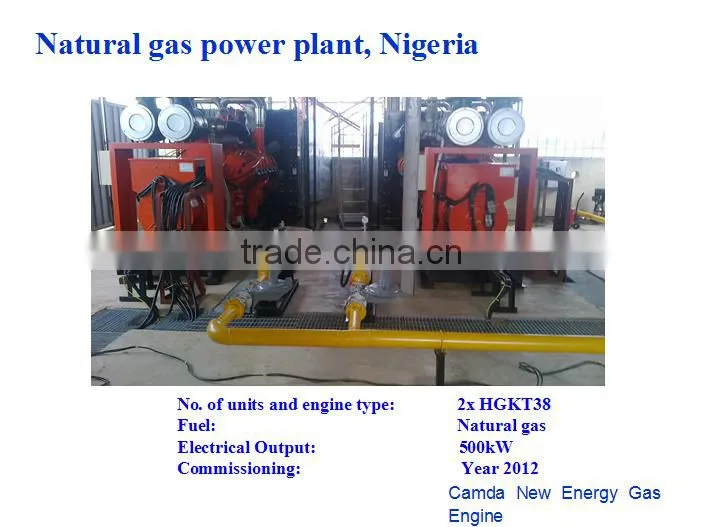

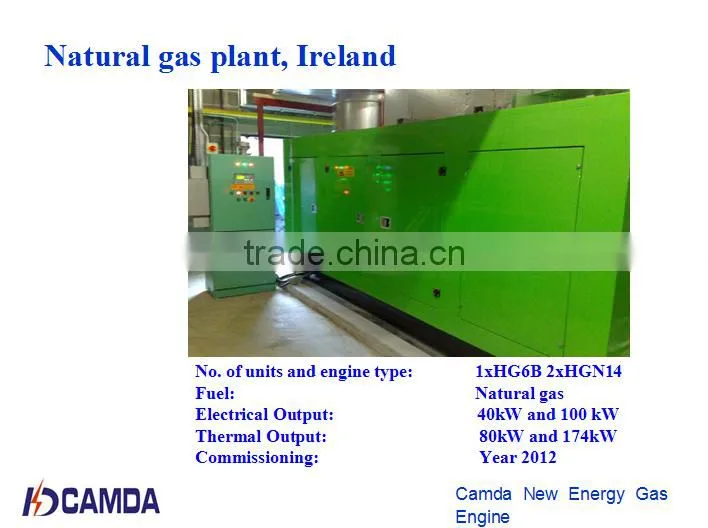

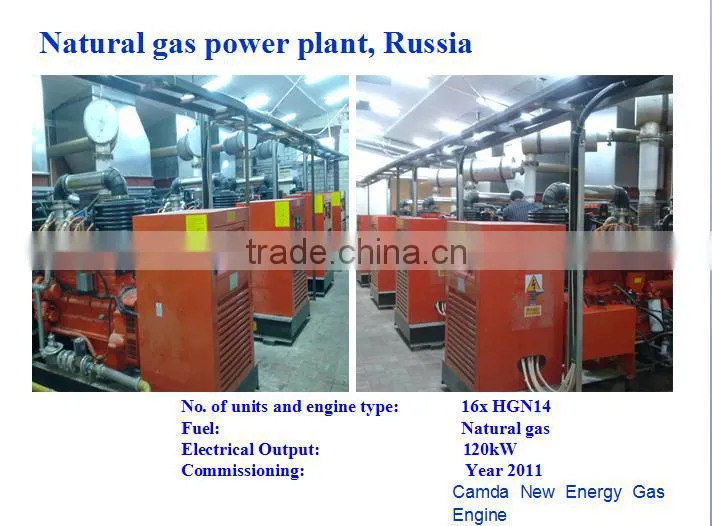

Power plant project around the world:

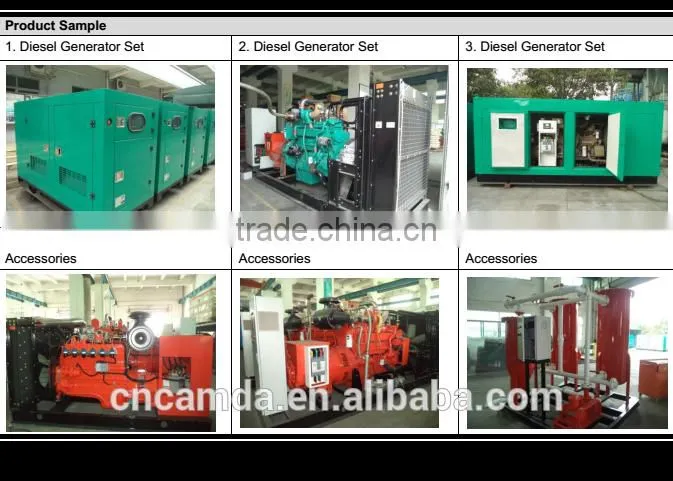

Product line:
Production process:
Company and certifications:
Genset lifetime and Warranty
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since leaving China port, our company provides free easily- damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect manmade operation. After expiration, our company provides spare parts with cost for maintenance forever.
