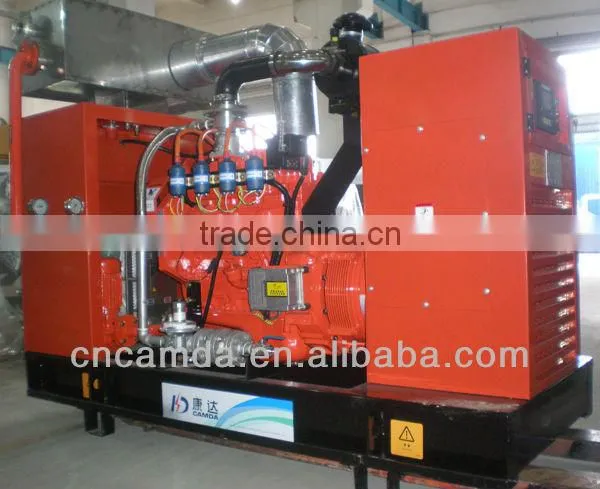

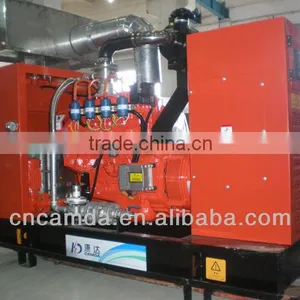

30kW gas generator set, using biogas, natural gas or some types of LPG.
CAMDA-Cummins gas engine, Leroy Somer alternator and Deepsea DSE6020 controller.
30kW gas generator set
Standard working conditions:
Ambient temperature:0-40°C
Altitude:Sea level 500 m below
Gas Requirement:
Dust and particle : ≤ 3 μm, H2S content : ≤200 ppm, Gas temperature : 0~45°C
Relative humidity: ≤100%(without liquid water, Inlet gas pressure: 5~12kPa.
Heat value requirement:
Biogas≥21MJ (5000 kilocalorie)
Natural gas≥31MJ (8000 kilocalorie)
♣ What is mentioned above is standard conditions, we can apply to other working conditions through correction.
Genset Details | |||
Model |
KDGH30-G |
||
Electrical Power |
KVA |
37 |
|
KW |
30 |
||
Engine model |
HG4B |
||
Alternator model |
LSA42.3S4 |
||
Control model |
Deepsea DSE6020 |
||
Rated Voltage (V) |
400/230 |
||
Frequency (Hz) |
50 |
||
Rated Current(A) |
54 |
||
Power factor |
0.8(lagging) |
||
Generator Insulation class |
H |
||
Noise level(dB) |
≤105 |
||
Open Type Genset |
Packed dimensions(mm) L × W × H |
1850*750*1470 |
|
Net weight (KG) |
1065 |
||
Please contact with us if you need more information about our gas engine and other techinical data.
Scope of Supply
- Primary muffler, Standard tools kit
- Gas train (Solenoid gas valve, Zero pressure valves, Hand valve, Flame arrester.
- Fan radiator
- Heat Recovery System
- Standby emergency radiator
- Bypass exhaust pipeline
- Water heater and Oil heater
- Synchronizing parallel cabinet
- Spare parts
- Sound-proof canopy
