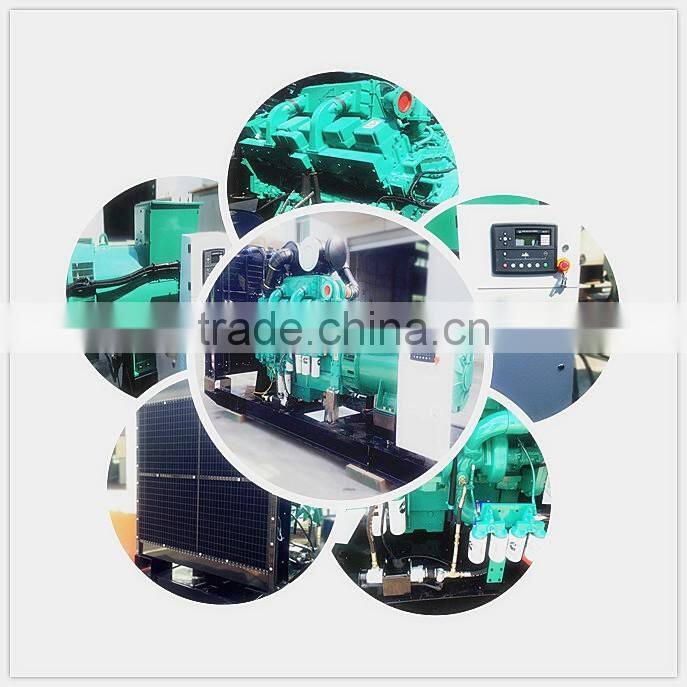

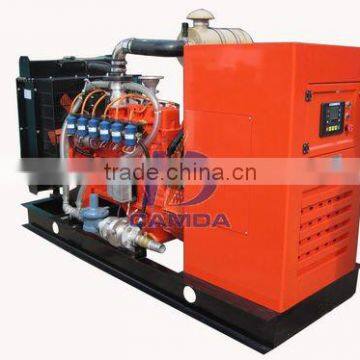

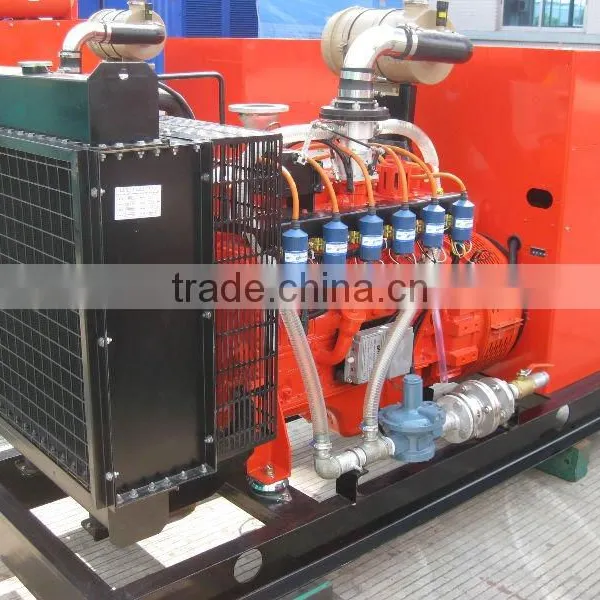

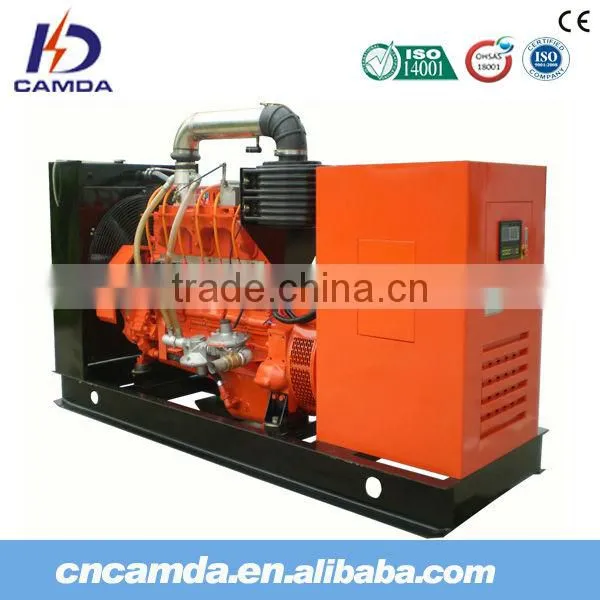

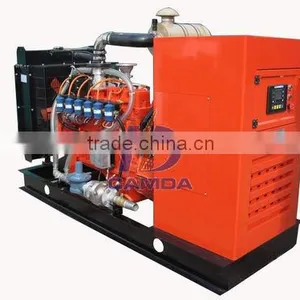

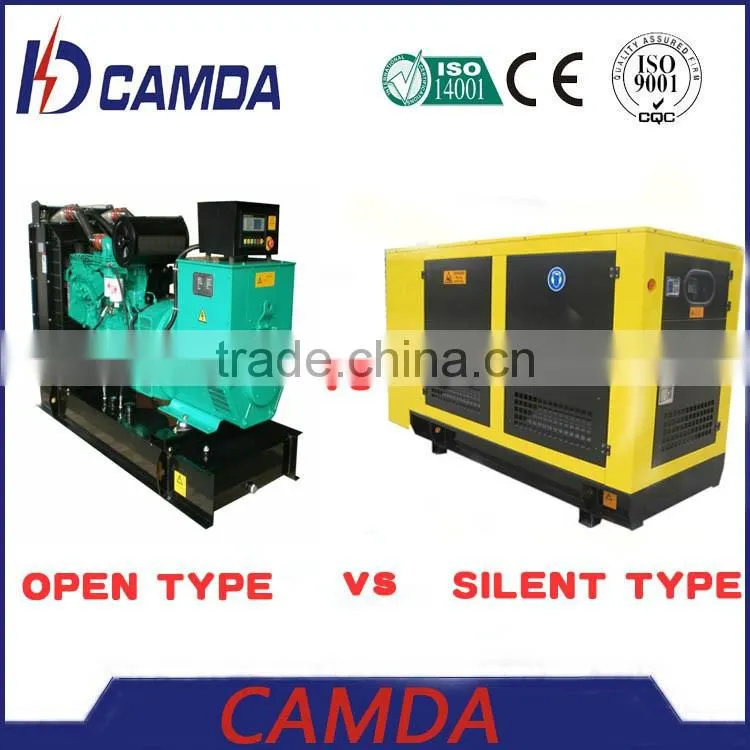

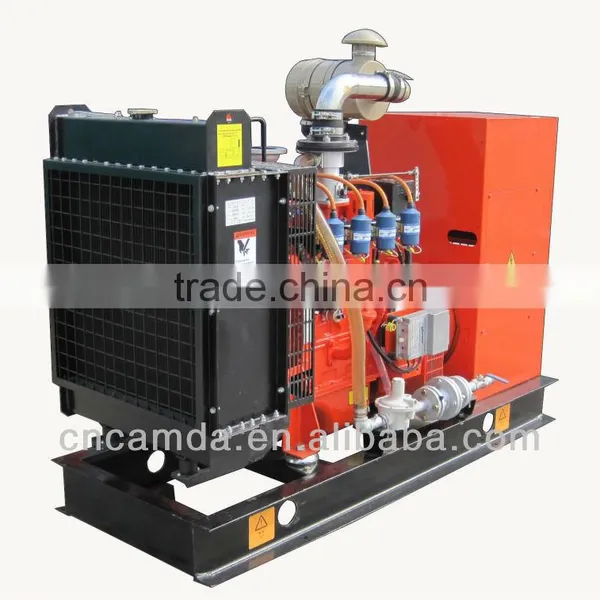

Help CenterCamda Factory Biogas Generator Sets With/without Canopy 250kw Biogas Generator
Related Products
-
Camda H Series Natural Gas/biogas/LPG Generator Sets 500kva/400kw With CHP SystemUS$ 40,000 - 75,000MOQ: 1 Set -
Camda Factory H Series Natural Gas/biogas Generator Sets With/without Canopy Low Rpm GeneratorUS$ 40,000 - 75,000MOQ: 1 Set
-
Hot Sale! Camda Biogas Generator 500kw/Waste to Engergy Power Generator 60HzUS$ 110,000 - 150,000MOQ: 1 Set
-
Hot Sale! Camda Biogas Generator 400kw/Biogas Generator/Biomass GensetUS$ 110,000 - 160,000MOQ: 1 Unit
-
Camda Biogas Generator 300KW/biogas Electric Power Generator 60HzUS$ 50,000 - 80,000MOQ: 1 Set
| Model Item | Power(KW/KVA) | Engine Model | Net Weight(KG) | Size(L*W*H) |
| KDGH-40G | 40 | HTG4B | 900 | 1850*750*1480 |
| KDGH-50G | 50 | HG6B | 1100 | 2250*820*1500 |
| KDGH-80G | 80 | HTG6B | 1150 | 2450*1100*1800 |
| KDGH-120G | 120 | HGN14 | 1700 | 3010*1100*1800 |
| KDGH-150G | 150 | HGT6L | 3000 | 2900*950*1550 |
| KDGH-200G | 200 | HGNT14 | 3380 | 3470*1230*2300 |
| KDGH-250G | 250 | HGKT19 | 3500 | 3570*1330*2400 |
| KDGH-120GC | 120 | HGT6C | 2500 | 2800*850*1450 |
| KDGH300G | 300 | HGKT19 | 3380 | 3500*1250*2020 |
| KDGH500G | 500 | HGKT38 | 6080 | 4400*2010*2480 |

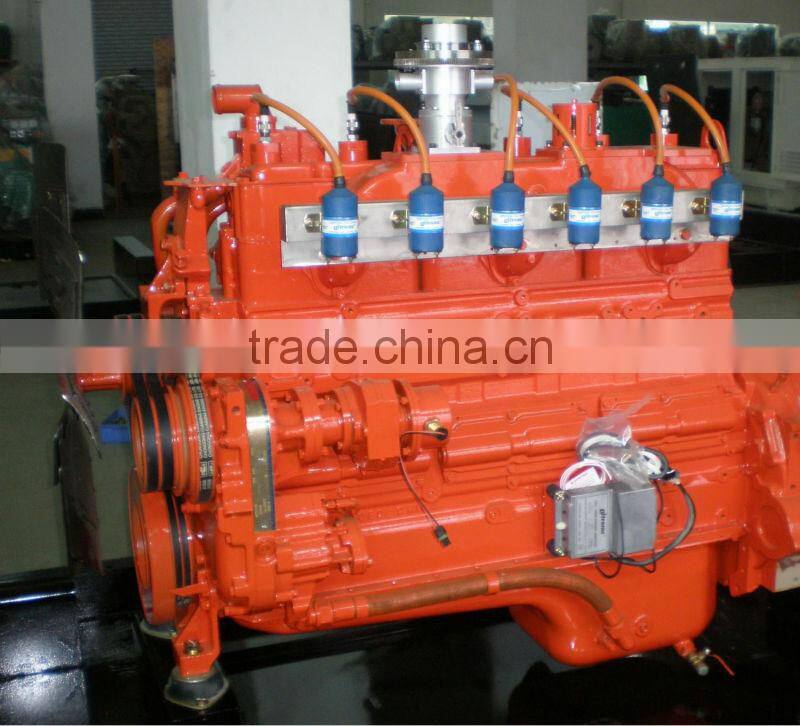

1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by Cummins with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature
5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
1. Adopt advanced Hall ignition sensor and Highly capable USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
2. Adopt ComAp Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
3.The gas inlet pressure is only 2~12kPA,so almost all city pipe gas pressure can be satisfied,not to mention biogas. So there is no need for customer to install blower to increase pressure and save cost for you.
4. Electrical Air/Gas mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
5. Long designed overhaul term: 25000~30000 hours
6. Comply with CE standard, ISO9001:2008 quality management system, ISO14001:2004 and OHSAS 18001:2007.
•Acceptable working conditions:
Ambient temperature : -10°C~+40°C
(antifreeze or preheater needed for below 0°C)
Relative humidity:<90%(20°C)
Altitude:≤1000m
•Normal working conditions:
Genset can run at rated power on the conditions:
Atmospheric Pressure: 100kPa, Ambient Temp: 20°C, Relative Humidity: 30%.
Applied gas:
Natural Gas, Biogas, LPG, Landfill gas, Oil gas, Syngas, Coal mine gas
Acceptable fuel gas pressure: 5~12kPa
CH4 content: for natural gas≥85% CH4 content:for biogas≥55%
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ).
Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.
Gas requirements:
Gas doesn’t include free water or particles in the gas (the size of impurities in the gas must be smaller than 5μm.)
H2S content≤200mg/Nm3
NH3 content≤20mg/Nm3
Impurities content≤30mg/Nm3;size≤5μm
Water content≤40g/Nm3, no free water.
Our company will hold distributer technology traning every year.
Welcome to join us!
