CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle

Xiamen Caimore Communication Technology Co., Ltd.
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle thumbnail-1
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle thumbnail-2
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle thumbnail-3
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle thumbnail-4
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle thumbnail-5
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle photo-1
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle photo-2
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle photo-3
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle photo-4
CM550-55G M2m 4g Lte Fdd RTU With Wifi Router Applied in Vehicle photo-5
US$ 200 - 220 MOQ: 2 Sets
Key Specifications
Get Latest Price
Products Status:
Stock, Stock
Type:
Wireless
Application:
Other, Vehicle, oil truck
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock, Stock
Type Wireless
Application Other, Vehicle, oil truck
Function VPN, Other, VPN, data collection,remote control
LAN Ports 4
WAN Ports 1
Certification CE, FCC, CGD, CE
Brand Name Caimore
Model Number CM550-55F
Place of Origin Fujian, China



Product Description



1,Support APN/VPDN
2,Support double data center backup and multiple data center ( 8 data center) receiving data, the biggest number of sending center is up to 256
3,Remote wakeup: support short message,voice,data etc wakeup method and overtime disconnect network
4,Support center server fixed IP, when center adopts dynamic IP, it can support DDNS dynamic domain communication mode.
5,Support 6 CH counter input,8 CH switch input,8 CH analog input,4 CH digital output,2 CH PMW output,4 CH relay output
6,Support 1 RS232/RS485
7,Support 1 Ethernet port,and USB(optional)
8,Support extendable wireless RTU managment platform protocol
9,Support remote configure,remote control and remote upgrade
10,Support WEB configure
11,Support telnet
12,Support serial port software upgrade
13,Support GPS/Compass(optional)
14,Support Zigbee mesh network(optional)
15,Support LINUX, UNIX and WINDOWS operating systems

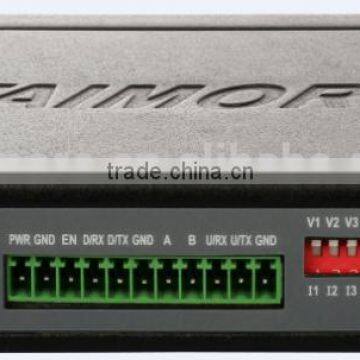

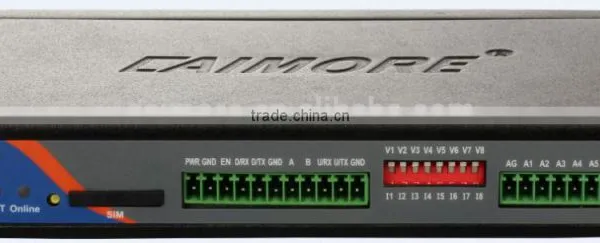

Product View

Specification Information:

Cellular Parameters:
ItemContent
CellularLTE-FDD/HSPA+/UMTS/HSDPA/HSUPA/WCDMA/EDGE/GPRS/GSM
Standards and frequency bands     (FDD)LTE FDD: 2600/2100/1800/DD800MHz
UMTS: 2100/900MHz
RxDiv Band: UMTS 2100/900MHz  LTE FDD 2600/2100/1800/DD800MHz
Communication bandwidth(FDD)LTE FDD:DL 100Mbps/UL 50Mbps
DC_HSPA+:DL 42Mb/s(Category 24)
HSPA+:DL 28Mb/s(Category 18)
HSDPA: DL 14.4Mb/s(Category 8)
HSUPA+:DL 5.76Mb/s(Category 6)
WCDMA CS:UL 64kbps/DL 64kbps
WCDMA PS:UL384kbps/DL384kbps
Transmit powerWCDMA/HSDPA:24dBm LTE:23 dBm
Receiver sensitivity <-109dBm
Function support Support data, voice, SMS and fax
GPS Parameters
Item Content
Wireless Moduleindustrial GPS wireless module
Receiver TypesAccept the global positioning system, 50 channels,L1 frequency,1.023 MHZ chip speed,C/A code 1.023 MHZ chip speed ;
Support SBAS: WAAS,EGNOS,MSAS, also can be compatible with GALILEO.
Capture Time cold boot:27S;Secondary boot:<3sec.;warm boot:<1sec.
Data FormatNMEA-1083,SiRD binary system
Input InformationNMEA, SiRF binary system  height/location/date/time
Output InformationNMEA-0183,SiRF binary system,GGA GSA GSV RMC VTG GLL
Hardware system:
ItemContent
CPUIndustrial CPU,stable and reliable performance
MMUCPU with MMU memory management unit, can prevent memory overflow exception
Flash64Mbits, a large enough memory to store programs and data
 SDRAM256Mbits, a large enough cache to improve system operation speed
Operating System:
ItemContent
Operating SystemUsing LINUX2.6 operating system with memory management unit and real-time feature, upgrades is very fast and system is stable;
Interface Type:
ItemContent
Serial port1 RS232 serial port  (supports RS422/TTL)
Data bits: 5,6,7,8 bit
Stop bits: 1, 1.5,2 bit
Parity: none, odd , even , space and mark
Baudrate: 110bps ~ 115200bps
Ethernet1xLAN(One 10/100 Base-T Ethernet ports), Ethernet IEEE 802-3, 802-2; built-in 1.5KV magnetic isolation protection.
USB1xUSB, USB2.0, HOST interface, speed at 12Mbps
Indicator“POWER”,  “Link / ACT”,“COMM” and “ONLINE”
Antenna InterfaceStandard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers.
UIM interface1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection
Power Interface Block interface,power supply over-voltage protection and reverse current protection.
Analog inputResolution:16 bit,input voltage(-10V-+10V),input current(0-20mA),sampling rate(1.365kSPS),Accuracy±0.5% or better
Switch inputInput range(0-3.3V low level,5-30V high level)conatins all the way count function(1KHz)
Relay output(dry contact)Drive ability 5A/30VDC,5A/250VAC
Optocoupler digital outputOpen collector output,Max  30V,max current 40mA,Max power 125mW
Optocoupler PWM outputOpen collector output,Max  30V,max current 40mA,Max power 125mW,output frequency 0-1KHz,adjustable duty cycle
Power supply:
ItemContent
Supply voltageWide voltage design, DC 7V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection
Standard power supply DC9V/1.5A
Current while Communicating Average communication current :200mA @ +9 VDC;
Communicating  instantaneous peak current: 1.0A @ +9 VDC
Standby current Standby average current:0.15A@+9VDC
Physical features:
ItemContent
Shell Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30;  particularly suit for harsh industrial control environments.
Product Dimensions 167*104*26mm(not including the antenna and the fixed parts)
Packing Size350*215*88mm
Weight 0.52Kg
Other parameters:
ItemContent
Operating Temperature -25ºC ~+75ºC
Storage Temperature-40~+85ºC
Relative  Humidity95%(No condensation)



  Widely Application

Why US:



1.  13 years industry R & D accumulation and application of telecommunication supplier.

2.  80 R&D engineers, 150 staffs.

3.  2015 was award " China's TOP 10 Security Brands"

4. 2015 Caimore bus WIFI coverage project eligible Oscars Awards in M2M industry.

5.  2011 was awarded “ Best Supplier of Customer Satisfaction in China’s industrial Control Sector”

6.  16000 customers choice

7. 300000 markets tested

8. GPRS/CDMA/3G/4G network equipment provided.

9.  Patent technology, stable and security
