CM550-55G m2m 3g hspa+ RTU with wifi Router applied in vehicle
- 4000 Set / Sets per Month
- XIAMEN
- T/T Credit Card PayPal
Product Details
Products Status: | Stock, Stock | Type: | Wireless | Application: | Other, Vehicle, oil truck |
Function: | VPN, Other, VPN, data collection,remote control | LAN Ports: | 4 | WAN Ports: | 1 |
Certification: | CE, FCC, CGD, CE | Brand Name: | Caimore | Model Number: | CM550-55H |
Place of Origin: | Fujian, China |
Product Description
1,Support APN/VPDN | |
2,Support double data center backup and multiple data center ( 8 data center) receiving data, the biggest number of sending center is up to 256 | |
3,Remote wakeup: support short message,voice,data etc wakeup method and overtime disconnect network | |
4,Support center server fixed IP, when center adopts dynamic IP, it can support DDNS dynamic domain communication mode. | |
5,Support 6 CH counter input,8 CH switch input,8 CH analog input,4 CH digital output,2 CH PMW output,4 CH relay output | |
6,Support 1 RS232/RS485 | |
7,Support 1 Ethernet port,and USB(optional) | |
8,Support extendable wireless RTU managment platform protocol | |
9,Support remote configure,remote control and remote upgrade | |
10,Support WEB configure | |
11,Support telnet | |
12,Support serial port software upgrade | |
13,Support GPS/Compass(optional) | |
14,Support Zigbee mesh network(optional) | |
15,Support LINUX, UNIX and WINDOWS operating systems |

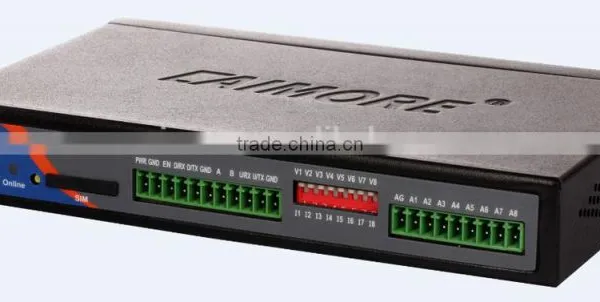

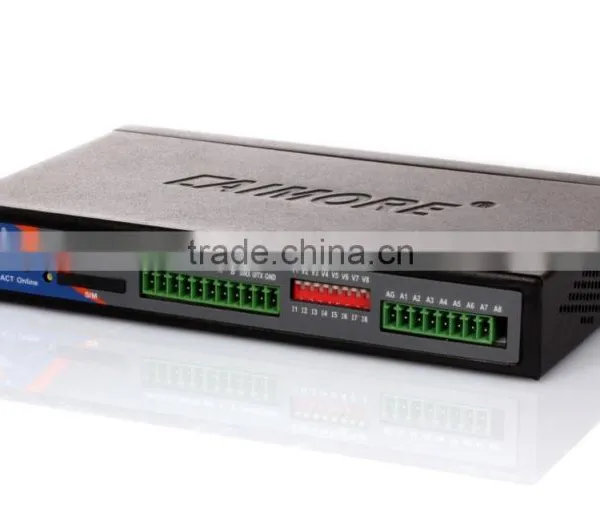

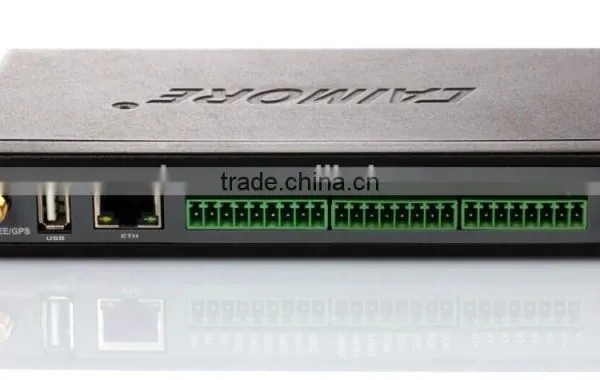

Product View
Specification Information:
Cellular Parameters:
Item Content
Cellular LTE-FDD/HSPA+/UMTS/HSDPA/HSUPA/WCDMA/EDGE/GPRS/GSM
Standards and frequency bands (FDD) LTE FDD: 2600/2100/1800/DD800MHz
UMTS: 2100/900MHz
RxDiv Band: UMTS 2100/900MHz LTE FDD 2600/2100/1800/DD800MHz
Communication bandwidth(FDD) LTE FDD:DL 100Mbps/UL 50Mbps
DC_HSPA+:DL 42Mb/s(Category 24)
HSPA+:DL 28Mb/s(Category 18)
HSDPA: DL 14.4Mb/s(Category 8)
HSUPA+:DL 5.76Mb/s(Category 6)
WCDMA CS:UL 64kbps/DL 64kbps
WCDMA PS:UL384kbps/DL384kbps
Transmit power WCDMA/HSDPA:24dBm LTE:23 dBm
Receiver sensitivity <-109dBm
Function support Support data, voice, SMS and fax
GPS Parameters
Item Content
Wireless Module industrial GPS wireless module
Receiver Types "Accept the global positioning system, 50 channels,L1 frequency,1.023 MHZ chip speed,C/A code 1.023 MHZ chip speed ;
Support SBAS: WAAS,EGNOS,MSAS, also can be compatible with GALILEO."
Capture Time cold boot:27S;Secondary boot:<3sec.;warm boot:<1sec.
Data Format NMEA-1083,SiRD binary system
Input Information NMEA, SiRF binary system height/location/date/time
Output Information NMEA-0183,SiRF binary system,GGA GSA GSV RMC VTG GLL
Hardware system:
Item Content
CPU Industrial CPU,stable and reliable performance
MMU CPU with MMU memory management unit, can prevent memory overflow exception
Flash 64Mbits, a large enough memory to store programs and data
SDRAM 256Mbits, a large enough cache to improve system operation speed
Operating System:
Item Content
Operating System Using LINUX2.6 operating system with memory management unit and real-time feature, upgrades is very fast and system is stable;
Interface Type:
Item Content
Serial port 1 RS232 serial port (supports RS422/TTL)
Data bits: 5,6,7,8 bit
Stop bits: 1, 1.5,2 bit
Parity: none, odd , even , space and mark
Baudrate: 110bps ~ 115200bps
Ethernet 1xLAN(One 10/100 Base-T Ethernet ports), Ethernet IEEE 802-3, 802-2; built-in 1.5KV magnetic isolation protection.
USB 1xUSB, USB2.0, HOST interface, speed at 12Mbps
Indicator “POWER”, “Link / ACT”,“COMM” and “ONLINE”
Antenna Interface Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers.
UIM interface 1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection
Power Interface Block interface,power supply over-voltage protection and reverse current protection.
Analog input Resolution:16 bit,input voltage(-10V-+10V),input current(0-20mA),sampling rate(1.365kSPS),Accuracy±0.5% or better
Switch input Input range(0-3.3V low level,5-30V high level)conatins all the way count function(1KHz)
Relay output(dry contact) Drive ability 5A/30VDC,5A/250VAC
Optocoupler digital output Open collector output,Max 30V,max current 40mA,Max power 125mW
Optocoupler PWM output Open collector output,Max 30V,max current 40mA,Max power 125mW,output frequency 0-1KHz,adjustable duty cycle
Power supply:
Item Content
Supply voltage Wide voltage design, DC 7V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection
Standard power supply DC9V/1.5A
Current while Communicating Average communication current :200mA @ +9 VDC;
Communicating instantaneous peak current: 1.0A @ +9 VDC
Standby current Standby average current:0.15A@+9VDC
Physical features:
Item Content
Shell Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments.
Product Dimensions 167*104*26mm(not including the antenna and the fixed parts)
Packing Size 350*215*88mm
Weight 0.52Kg
Other parameters:
Item Content
Operating Temperature -25ºC ~+75ºC
Storage Temperature -40~+85ºC
Relative Humidity 95%(No condensation)
Widely Application
Why US:
1. 13 years industry R & D accumulation and application of telecommunication supplier.
2. 80 R&D engineers, 150 staffs.
3. 2015 was award " China's TOP 10 Security Brands"
4. 2015 Caimore bus WIFI coverage project eligible Oscars Awards in M2M industry.
5. 2011 was awarded “ Best Supplier of Customer Satisfaction in China’s industrial Control Sector”
6. 16000 customers choice
7. 300000 markets tested
8. GPRS/CDMA/3G/4G network equipment provided.
9. Patent technology, stable and security
