Help CenterDomestic Wastewater Treatment System
Related Products
Specifications
handle oil sludge without cloggingsave energy
easy operation&maintenance
low construction cost
full automatically
Working Principle of domestic wastewater treatment system

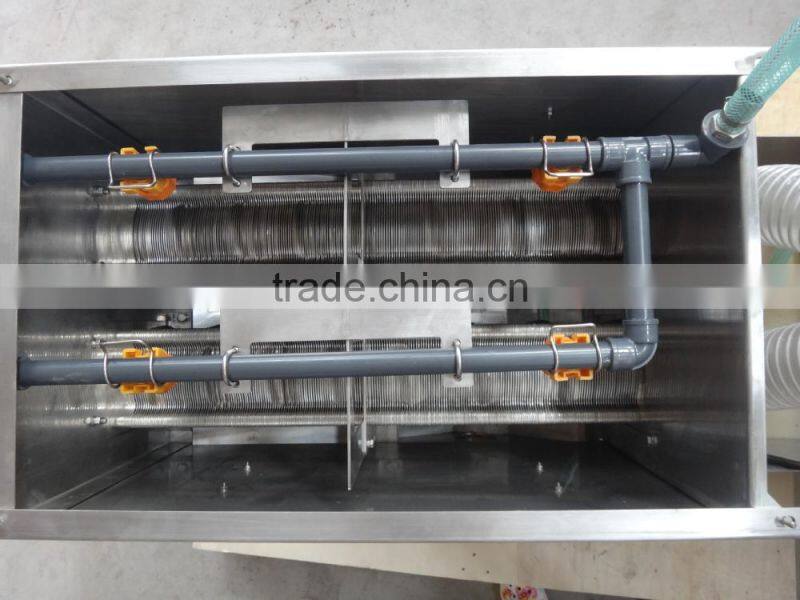

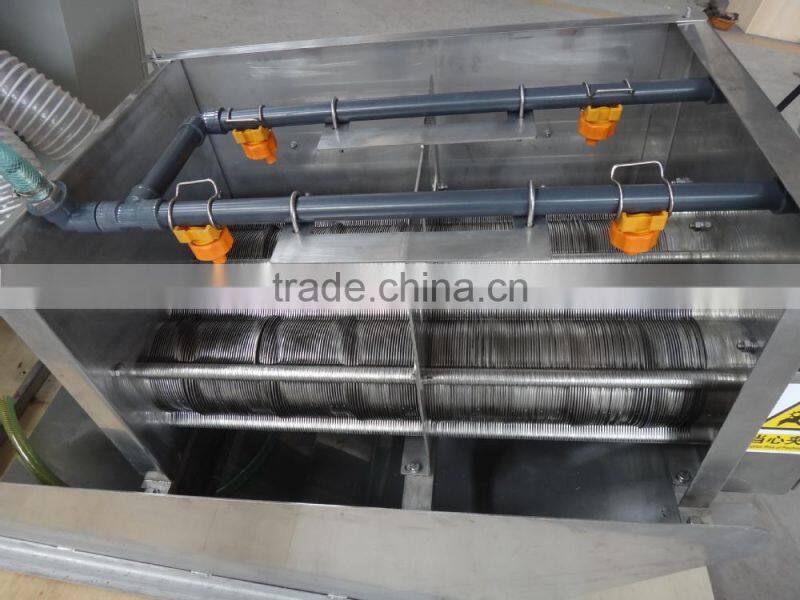

The filter cylinder is composed of fixed rings, moving rings and screw shaft. Each moving ring locates between the fixed rings. Moving ring′s diameter is slightly smaller than outer diameter of the screw. And its thickness is a little narrower than the space between fixed rings. Driven by the screw shaft, moving rings are pushed up and down. As a result, moving rings clean sludge out of space between fixed rings continuously and keep equipment working well from clogging.
Characteristics of domestic wastewater treatment system
Non-clogging design, 24h running automatically.
Self-cleaning, little rinsing water needed.
Low-concentrated sludge handling.
Energy saving. Saving power, 1/20 of centrifugal.Saving water, 1/8 of belt press.
All-in-one design, save construction cost.
Low maintenance cost.
Low noise and little vibration.

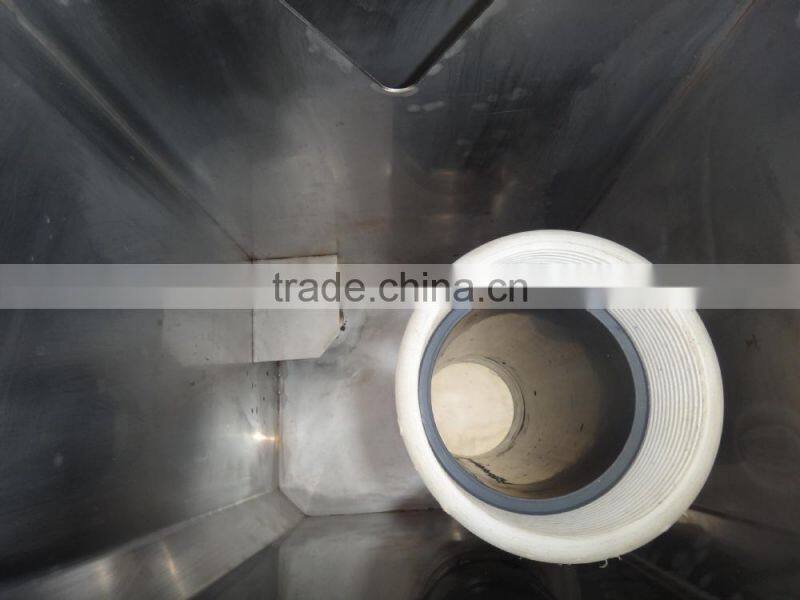

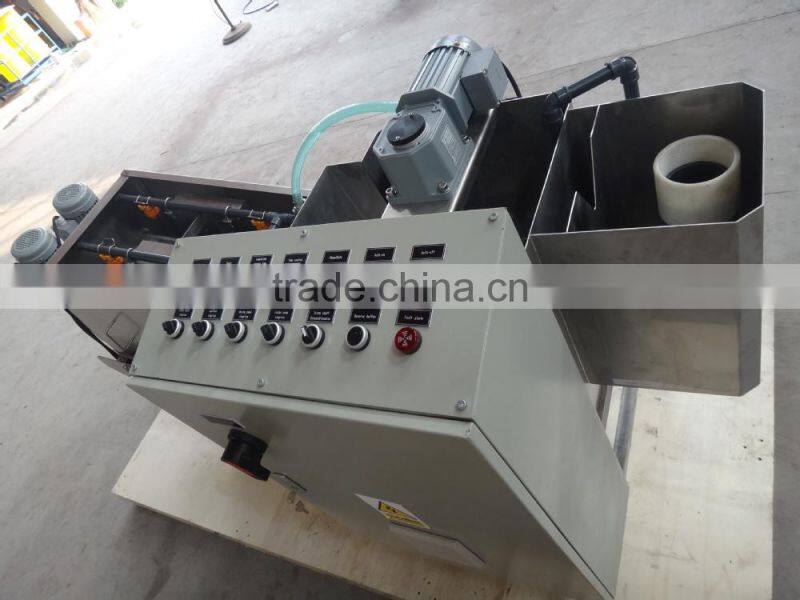

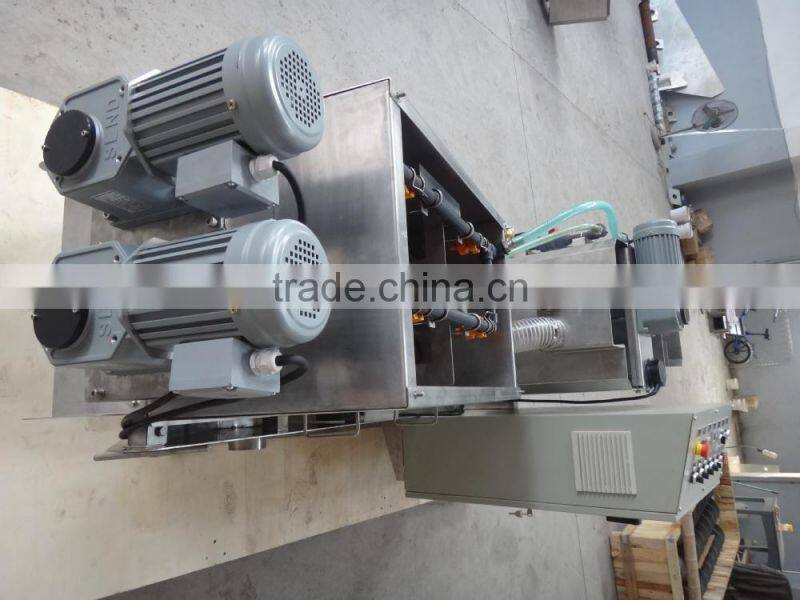

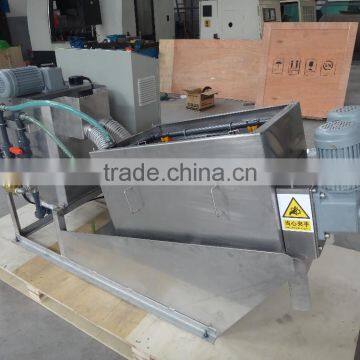

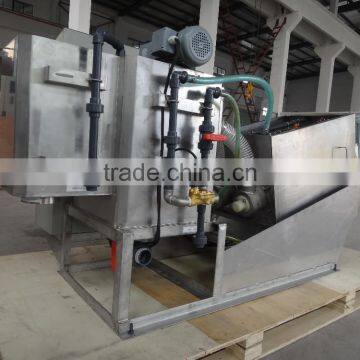

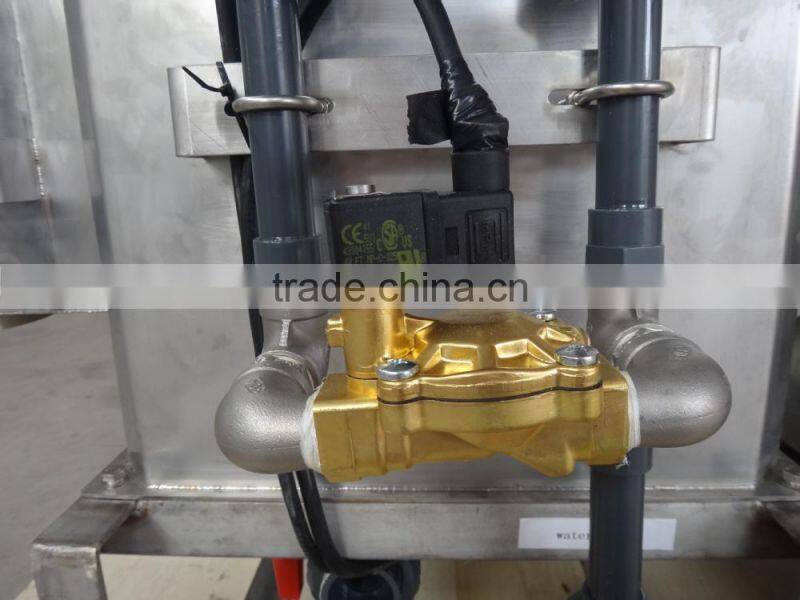

Product Details for domestic wastewater treatment system
|
|
|
|
|
|
Why Choose Pioniere?
Standard Parameter for XF 132 domestic wastewater treatment system
Standard Process Capacity 132 | |
Sludge Process Capacity |
0.4~6m³/h |
Dry Solids Output |
12~20kg/h |
| |
Standard Specification | |
Screw Shaft |
Ø130m*2 |
Outlet height |
250mm |
Dimension |
2069*910*1040mm |
N.W. |
275kg |
| |
Standard Energy Consumption | |
Power |
0.3kw |
Rinsing water pressure |
0.1~0.2KPa |
Rinsing water consumption |
48L/h |
Spray Frequency |
5min/D |
| |
Replacement cycle for wearing parts | |
Screw Shaft |
10000H |
Moving Rings |
5000H |
Standard export wooden case. Fumigation certificate can be provided.
1. Engineers available to service machinery overseas if needed.
2. Techinical support from email, phone call, video for free.
3. Provide spare part with cost price if already purchasd our equipment.
4. Train your engineers for free if become our sales agent.
Sharp Tools make Good Work
Yixing Pioniere has advanced manufacturing equipments from home & abroad, such
as CNC, Numerical Control machine, laser cutting machine, and etc.
