Specifications
Sand Rotary Dryer:1)ISO9001 approved
2)Low energy consumption
3)Inventory:Yes
Features of The Sawdust Dryer:
1. Great drying intensity.
2. Short drying time
3. The air current water extractor is with simple structure, being easy to construct and service.
4. High capacity, high thermal efficiency.
Working priciple of The Sawdust Dryer:
Materials are sent to hopper of Rotary Dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.
Technical Parameter of The Sawdust Dryer:
| Model | Shell diameter(mm) | Shell length (mm) | Slope(º) | Rotary speed(r/min) | Weight(t) | Power(kw) | Volume(m3) |
| ø0.6x8 | ø600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
| ø0.8x10 | ø800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
| ø1x10 | ø1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
| ø1.2x12 | ø1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
| ø1.5x12 | ø1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
| ø2.2x14 | ø2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| ø2.4x18 | ø2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
| ø2.8x24 | ø2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |
The Structure of The Sawdust Dryer:
Draught fan transmission device Pipes
discharge head discharge cover Spiral conveyor

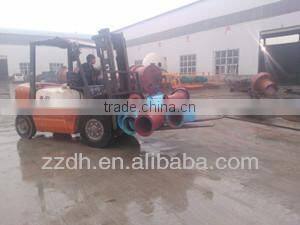

The Packing Pictures of The Sawdust Dryer:
