Specifications
rotary dryer:1.High dry capacity,smooth rotation
2.Low energy consumption
3.Inventory: Yes
Features of The Slurry Rotary Drum Dryer:
1. High mechanized, high capacity, continuous working.
2. Simple structure, steady move of manure, easy operation.
3. Few malfunction, low maitenance cost, low energy consumption.
4. Wie application, equal drying degree.
5. High waste recycling rate.
6. Make use of natural fertilizer, make profit and make farm product greener.
Working priciple of The Slurry Rotary DrumDryer:
Wet material into the dryer, the copy on the humidity material by a rotating wall plate copy rise to the top down, in the process of falling after crushing plant against breakage and hot air through the material surface for heat transfer and mass transfer. Large materials in the process of repeatedly raised the fall, has been broken into small particles and the increasing surface area and contact with the hot and dry, until the break into fine particles, meet the requirements of water discharge; By hot air entrained powder collected by dust collecting device
Technical Parameter of The Slurry Rotary Drum Dryer:
| Model | Shell diameter(mm) | Shell length (mm) | Slope(º) | Rotary speed(r/min) | Weight(t) | Power(kw) | Volume(m3) |
| ø0.6x8 | ø600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
| ø0.8x10 | ø800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
| ø1x10 | ø1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
| ø1.2x12 | ø1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
| ø1.5x12 | ø1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
| ø2.2x14 | ø2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| ø2.4x18 | ø2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
| ø2.8x24 | ø2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |

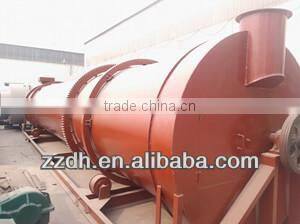

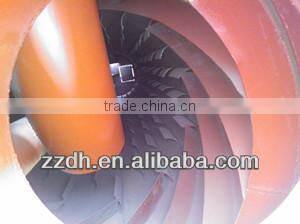

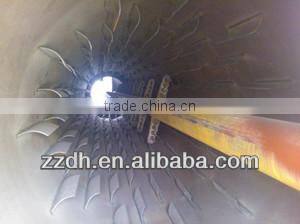

The Detail Pictures

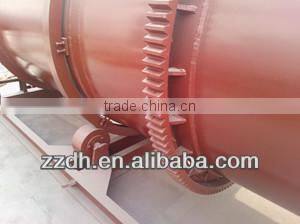

The Structure of The Slurry Rotary Drum Dryer:
Draught fan transmission device Pipes
discharge head discharge cover Spiral conveyor
The Packing Pictures of The Slurry Rotary Drum Dryer:
