Specifications
Three-cylinder Dryer:1. 2013 Hot Selling Product
2. High capacity,Low consumption
3.Inventory:Y
rotary dryer application:
They are widely used in building materials, metallurgy, and chemical industry.
Rotary dryer Structure:
Rotary dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.
rotary dryer Feature:
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers, we have arranged the second granulation zone reasonably so as to improve the granulation effect.
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption.
4. Temperature induction monitor, uniform vibration and airproof setting , which improve performance and productivity efficiently .
5. The assorted combustion furnace is a type of energy-efficient and has the characteristics of smaller area ,easy regulation and equipped with greenhouse .
The Technical Parameter of The Three Cylinder Dryer :
| Model | Output(t/h) | Consumption | Power | |||
| Slag | Flyash | Clay | Sand | |||
| DHø2.0x4 | 5-10 | 4 | 4-7 | 10-15 | 12-14 | 7.5 |
| DHø2.0x4.5 | 12-18 | 6 | 7-10 | 15-25 | 12-14 | 11 |
| DHø2.5x5 | 20-30 | 10 | 10-15 | 25-35 | 10-12 | 15 |
| DHø2.5x6 | 30-35 | 15 | 15-20 | 35-45 | 10-12 | 15 |
| DHø3.0x6 | 35-40 | 20 | 20-23 | 45-55 | 8-10 | 23 |
| DHø3.0x7 | 40-45 | 25 | 23-25 | 55-65 | 8-10 | 23 |
| DHø3.2x7 | 45-50 | 30 | 25-30 | 65-75 | 6-8 | 30 |
| DHø3.2x8 | 50-60 | 35 | 30-35 | 75-85 | 6-8 | 30 |
| DHø3.6x8 | 60-70 | 40 | 35-40 | 85-95 | 6-8 | 46 |

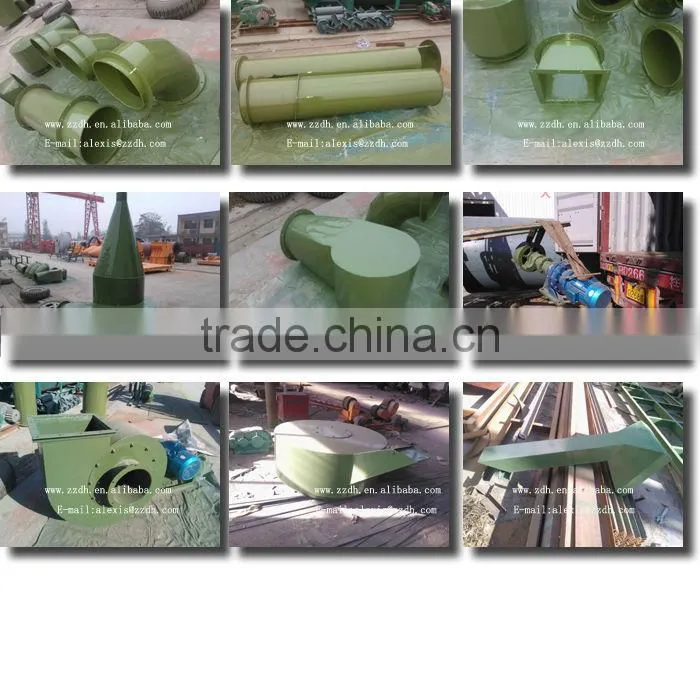

The Other parts of The Three-cylinder Dryer:

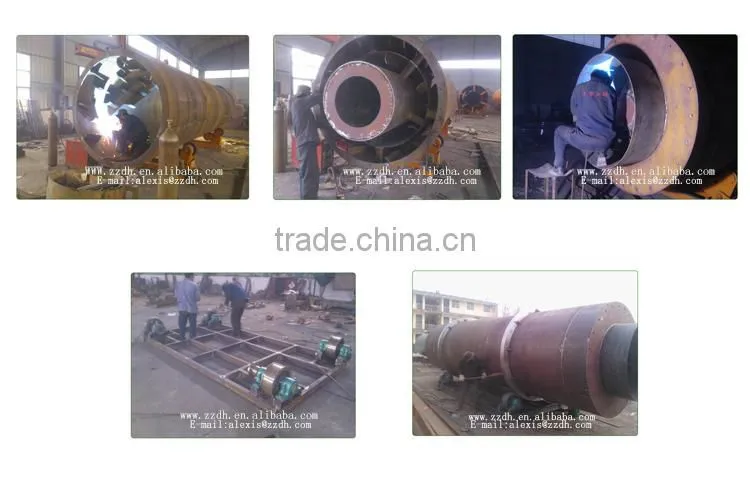

The manufacturing workshop:
