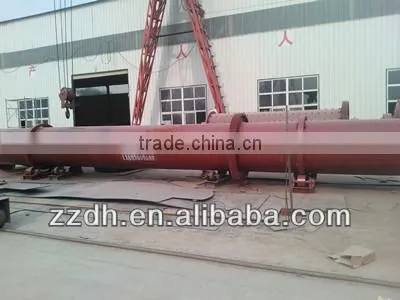

Lignite/ Row Coal/ Brown coal rotary drum dryer, drying device with anti-breaking device
- 50 Set / Sets per Month
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | DaHua | Model Number: | multi-type | Voltage: | According to your model |
Power(W): | 3-75kw | Dimension(L*W*H): | According to your model | Weight: | 2.9-65t |
Certification: | ISO9001-2008& CE | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Rotary Dryer :1)ISO9001 approved
2)Low energy consumption
3)Inventory:Yes
Features of Rotary Dryer :
1. Great drying intensity.
2. Short drying time
3. The air current water extractor is with simple structure, being easy to construct and service.
4. High capacity, high thermal efficiency.
Working priciple of Rotary Dryer :
Materials are sent to hopper of Rotary Dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.
Technical Parameter of Rotary Dryer :
Model | Shell diameter(mm) | Shell length (mm) | Slope(º) | Rotary speed(r/min) | Weight(t) | Power(kw) | Volume(m3) |
ø0.6x8 | ø600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
ø0.8x10 | ø800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
ø1x10 | ø1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
ø1.2x12 | ø1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
ø1.5x12 | ø1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
ø2.2x14 | ø2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
ø2.4x18 | ø2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
ø2.8x24 | ø2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |

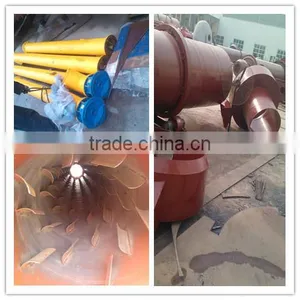

The Structure of Rotary Dryer :
Draught fan transmission device Pipes
discharge head discharge cover Spiral conveyor
The Packing Pictures of Rotary Dryer :
