Specifications

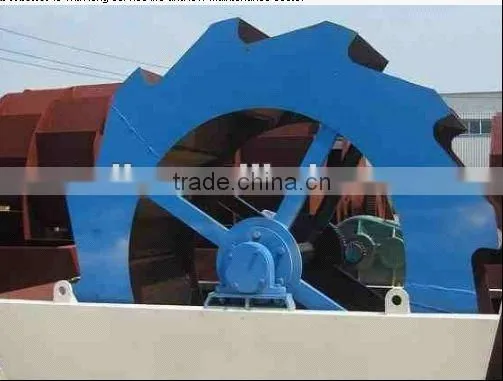

Sand Washing Machine is one of high efficiency and has the features of reasonable structure,high capacity and low consumption.Industrial Sand Washing Machine
Introduction of Industrial Sand Washing Machine:
Sand washing machine is the machine for washing the artificial or natural sand, is the necessary machine for the Sand making production line and Stone crushing production line.
Features of Industrial Sand Washing Machine:
1. Reasonable structure,
2. Large capacity,
3. Low consumption,
4. Little loss of the sand during the washing process,
5. Low failure rate.
Industrial Sand Washing Machine Application field:
To wash the materials in the quarry, mine, building materials, transportation, chemical, water and hydropower and other industries.
Industrial Sand Washing Machine Work principle:
the impeller drove by the motor through triangle belt, gearbox and gear moves slowly, the sand that fed from feed tank in the washing tank drove by the impeller to roll and rub, remove the impurity of the surface and destroy the vapor layer cover the sand to make for dehydrating; At the same time, increase the amount of water and take away the impurity and small matter and discharge them from spillway of washing tank, and clean sand will be took away by the blade and discharged into out-feed tank then the clean is finished.
Main Features:
Model |
XSD2610 |
XSD2816 |
XSD3016 |
Impeller Specification (mm) |
Ø2600x1000 |
Ø2800x1600 |
Ø3000x1600 |
Impeller Speed(r/min) |
1.178 |
1.177 |
1.179 |
Max Feed Size(mm) |
≤10 |
≤10 |
≤10 |
Capacity(t/h) |
20-50 |
50-90 |
100-180 |
Power(kw) |
5.5 |
7.5-11 |
11-15 |
Decelerator Models |
ZQ50-50-L-Z |
ZQ60-50-L-Z |
ZQ65-50-L-Z |
Overall Dimension(LxWxH)(mm) |
3255x1982x2690 |
3540x3000x2880 |
3845x3000x3080 |
