Specifications
Sand Washer1. Nice performance
2. Stable working conditions
3. Convenient operation
4. Reasonable price

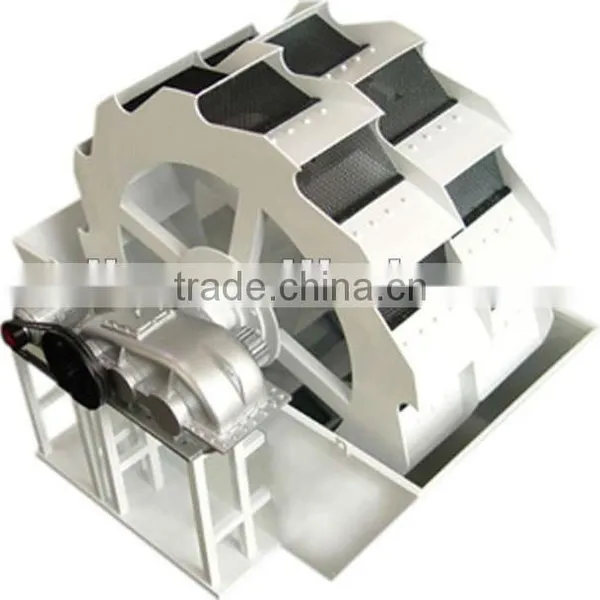

Sand Washer
Description of Sand Washer:
1. This series is depending on the practice in sand and stone production, absorbing the leading technology home and abroad, and is widely used in sand making industry.
2. It is of high efficiency and has the features of reasonable structure, high capacity and low consumption.
3. It can make final products free from dirt and impurities and reduce the high quality sand loss.
4. It is on behalf of the new technique compared with the same equipment in other companies.
Working Principle of Sand Washer:
1. The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel.
2. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other.
3. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder.
4. Through the above process, the washing function is finished.
5. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
6. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used.
7. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Main Technical Parameter of Sand Washer:
| Model | Impeller diameter(mm) | Impeller rotationg speed(r/min) | Capacity(t/h) | Feed size(mm) | Power(KW) | Weight(t) |
| XSD2212 | 2200 | 1-1.5 | 15-35 | ≤10 | 5.5 | 2 |
| XSD2612 | 2600 | 1-1.5 | 20-25 | ≤10 | 5.5 | 2.68 |
| XSD2812 | 2800 | 1-1.5 | 30-65 | ≤10 | 7.5 | 3 |
| XSD3015 | 3000 | 1-1.5 | 50-80 | ≤10 | 11 | 3.4 |
| XSD3215 | 3200 | 1-1.5 | 120-180 | ≤10 | 11 | 3.9 |
| XSD3615 | 3600 | 1-1.5 | 80-120 | ≤10 | 15 | 4.5 |
