Specifications
Sand Making Machine1.High reputation
2.Environmental machine
3.Long service time
4.Reasonable price
Sand Making Machine
Description of Sand Making Machine:
In the sand making process, sand maker is one of the essential devices, and in many products, we grandly introduce Sand Making Machine as the ideal device.
Features of Sand Making Machine:
1. Sand Making Machine has stable and reliable operation, process simplification, simple structure, easy maintenance, large capacity and in a long service life.
2. Sand Making Machine widely used in fine crushing the granite, basalt, limestone, river gravel, cement clinker, quartzite, iron ore, bauxite and other minerals.
3. Compared with traditional craft equipment of similar size, Sand Making Machine is 35%-50% lower in investment, 35%-50% higher in output efficiency( take limestone as and example: the product size less than 5mm is more than 85%).
4. 35%-50% lower in long-run maintenance costs, are widely used in making sand (limestone, river gravel, pebbles, granite, quarts stone), highway, railway, water conservancy, airport, construction, cement, refractory, metallurgy and other industries producing high quality stone.
Working principle of Sand Making Machine:
1. When working, the third generation sand maker, rotor is in a high-speed rotation with the motor driven, material into the first crushing chamber to crush by impacting with the hammer on the rotor, and then to smash in the second crushing chamber, and finally be discharged from the outlet.
2. The Sand Making Machine is mate used with jaw crusher, vibrating feeder, sand washing machine and the belt conveyor, quality assurance and price favorable, definitely is your ideal choice.
Main Technical Parameter of Sand Making Machine:

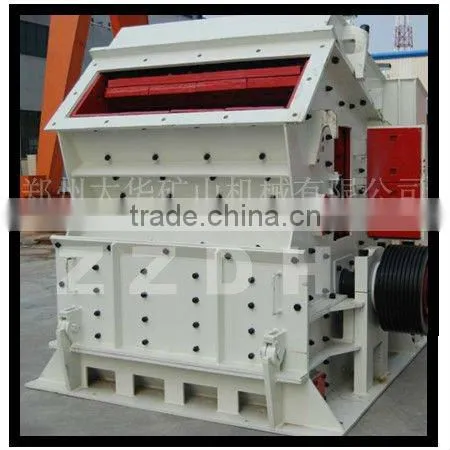

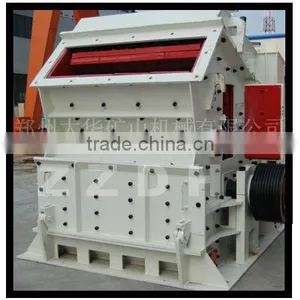

Picture of Sand Making Machine:| Model | The size of Feeding Port(mm) | The size of Feeding(mm) | The size of Discharging(mm) | The Material Seam Adjustment Range(mm) | Capacity(t/h) | Power(KW) | |
| Cement | Limestone | ||||||
| 800*400 | 400*185 | <120 | <5 | 5-20 | 20-30 | 35-45 | 37-45 |
| 800*600 | 500*125 | <180 | <5 | 5-20 | 35-40 | 45-55 | 45-55 |
| 800*800 | 550*330 | <180 | <5 | 5-20 | 35-45 | 55-65 | 45-55 |
| 1010*1010 | 1000*350 | <180 | <5 | 5-20 | 45-55 | 65-75 | 55-75 |
| 1200*1000 | 1200*400 | <180 | <5 | 5-20 | 80-110 | 80-100 | 100-110 |
| 1200*1200 | 1200*450 | <180 | <5 | 5-20 | 100-110 | 90-100 | 100-132 |
| 1400*1400 | 1500*500 | <190 | <5 | 5-20 | 100-150 | 100-150 | 160 |
| 1600*1600 | 1600*500 | <190 | <5 | 5-20 | 170-210 | 190-250 | 250 |
| 1800*1800 | 1800*800 | <190 | <5 | 5-20 | 250-270 | 280-310 | 315 |
