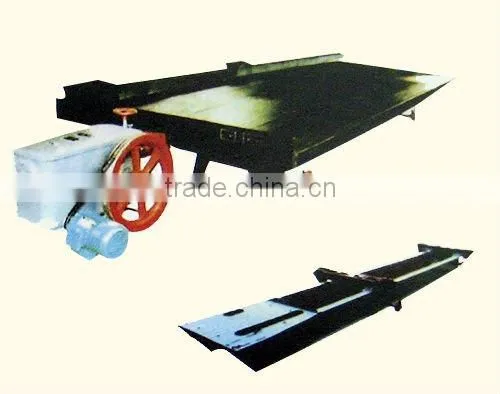

Help CenterGravity Separation Machine Shake Table Manufacturer
Related Products
-
New Popular Micro Powder Grinding Mill / Raymond Grinder/ Grinding MachineUS$ 3,600 - 888,888MOQ: 1 Set -
Magnetic Drum Separator for Chromite Ore ,iron Ore , Copper Ore Processing LineUS$ 1,000 - 99,999MOQ: 1 Set
-
Magnetite Iron Ore, Gold, Lead Zinc Magnetic Separator Machine Widely Used for Conveyor Belts in South AfricaUS$ 1,000 - 99,999MOQ: 1 Set
-
Dry Rare Earth Magnetic Separator for Limonite /ilmenite/ HematiteUS$ 999 - 88,888MOQ: 1 Set
-
Best Selling Low Price Highly Efficient Organic Ball Fertilizer Granulation MachineUS$ 1,800 - 8,000MOQ: 1 Set
Specifications
shaking table features:1.good high-grade ore sorting rate,
2.high efficient,
3.easy operation and maintenance
shaking table,shaking bed
Structure
Thistable mainly by the head of a bed, the electric motor, theaccentslope,the surface of bed, the ore trough, the water though, comesthe note inreply as well as the lubrication system and so on eightparts is composed.
Name |
Unit |
gruff sand table surface |
fine sand table surface |
ore mud table surface |
|
table surface dimension |
length |
MM |
4450 |
4450 |
4450 |
drive side width |
MM |
1855 |
1855 |
1855 |
|
fine ore side width |
MM |
1546 |
1546 |
1546 |
|
feeding grain |
MM |
2 |
0.5 |
0.15 |
|
feeding quantity |
T/D |
30-60 |
10-20 |
15-25 |
|
feeding chroma |
% |
25-30 |
20-25 |
15-25 |
|
journey |
MM |
16-22 |
11-16 |
8-16 |
|
frequency |
F |
45-48 |
48-53 |
50-57 |
|
Quantity of water for table surface cleaning |
T/D |
80-150 |
30-60 |
10-17 |
|
table surface lateral gradient |
° |
2°30¹-4°30¹ |
1°30¹-3°30¹ |
1°-2° |
|
table surface portrait gradient |
% |
1.4 |
0.92 |
- |
|
table tine angle |
° |
32-42 |
40 |
42 |
|
Selecting ore area |
M² |
7.6 |
7.6 |
7.6 |
|
table surface length ratio |
2.6 |
2.6 |
2.6 |
||
Shape of section of table surface |
rectangle |
saw tooth |
triangle |
||
motor power |
KW |
1.1 |
1.1 |
1.1 |
|
drive system |
eccentric link system |
||||
