Specifications
Ceramsite sand granulator:1.Professional ceramic sand proppant machinery
2.ISO9001:2008 Quality control
Ceramsite Sand Production Line:
The main equipments in Ceramsite Sand Production Line includes crusher, screening machine, belt conveyor, feeding machine, discharge machine, raw material storage warehouse, dustfall room, induced draft fan, main kiln body, coal injection system and control cabinet, etc. The speed of the feeder under the raw material stroge warehouse, kiln body and the quantity of coal arching are all of stepless speed regulating.
Zhengzhou Dahua MIning Machinery Co., Ltd Can provide the complete Ceramsite sand production line with good quality and service.
Ceramsite Sand application:

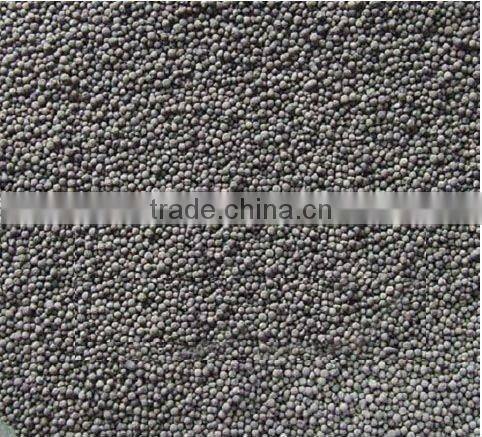

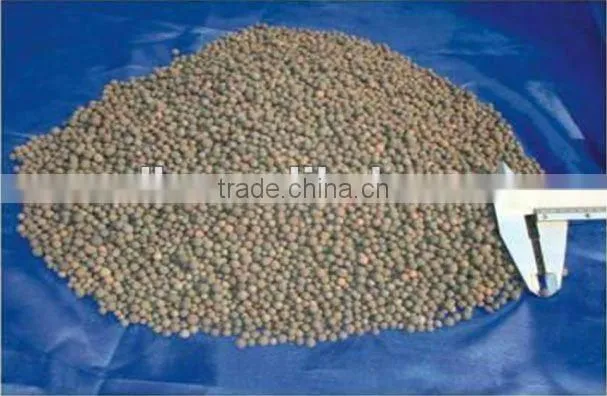

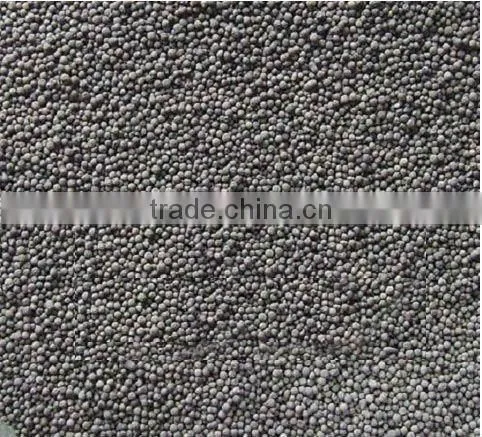

Ceramsite Sand is also called ceramic sand, is a kind of ceramic particle product with high fracturing intensity, belongs to lightweight aggregate family. Ceramite has excellent properties, such as low density, high cylinder pressure, high porosity, tall softening coefficient, good frost resistance, etc. So ceramite widely used in building materials, gardening, refractory insulation materials, Chemical, oil, and other departments. Ceramite used more widely with the development of technology.
Main Ceramsite sand Type:
1. Coal ash ceramsite sand
2. Clay ceramsite sand
3. Shale ceramsite sand

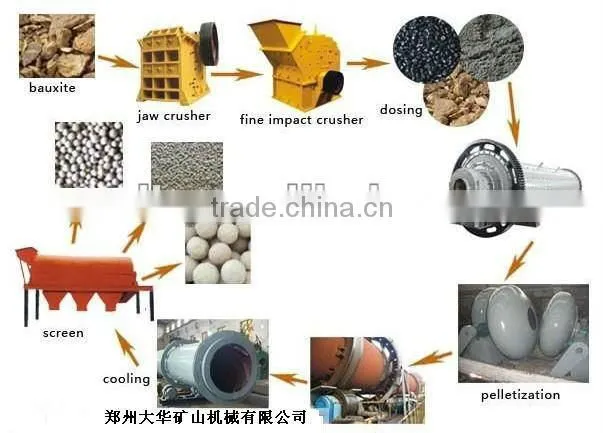

Ceramsite sand production line process:
Product ceramsite sand generally using the production process of raw material homogenization, granulation, baking, cooling. According to the type and characteristics of raw materials, Its granulating process can be divided into the following kinds:
1. Plastic method technology: Suitable for clay and clayey material.
Its process: Clay - plasticizing, smoothing of roller and granulating - roasting - cooling - finished products.
2. Mud into the ball process: Suitable for fly ash or other powder raw materials.
Its process: Fly ash - mixed smoothing - into balls set granulating - roasting - cooling - finished products.
3. Powder grinding ball process: Suitable for shale, clay shale and gangue materials.
Its process: Shale, drying, grinding, prewetting - into a ball dish granulating - roasting - cooling - finished product, the additive agent.
4. Broken (dry) process: Suitable for shale, etc.
Its process: Raw materials and broken graded - roasting shale and finished product. And cooling.
5. Fuel: According to local fuel supply, using bituminous coal, crude oil or natural gas.
4. Construction ceramsite sand.
Technical Parematers of Ceramic Sand Processing Line:
Model |
Diameter (mm) |
Capacity (t/h) |
Speed (r/min) |
Power(kw) |
Weight(kg) |
ZL-17 |
1700 |
1-2 |
13.8 |
18.5 |
3700 |
ZL-22 |
2200 |
1-3 |
13.8 |
22 |
4200 |
ZL-30 |
3000 |
2-4 |
11.3 |
45 |
8800 |
ZL-32 |
32000 |
2-5 |
10.3 |
55 |
10500 |
ZL-35 |
35000 |
2-7 |
9.8 |
75 |
13200 |

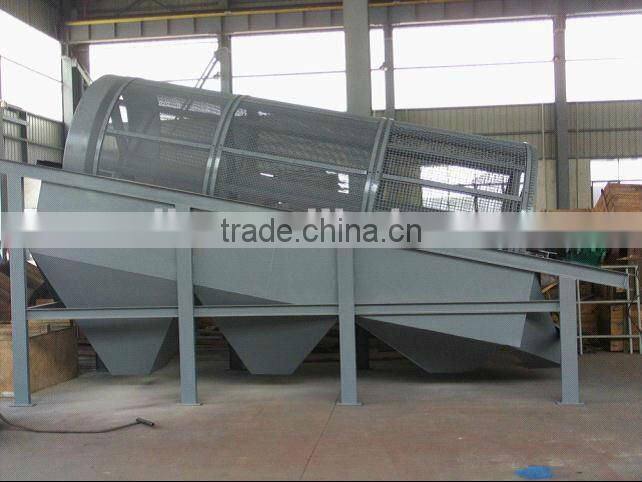

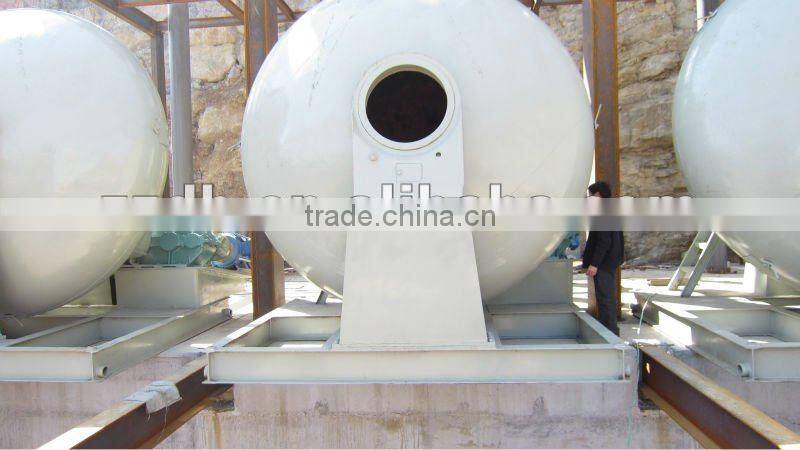

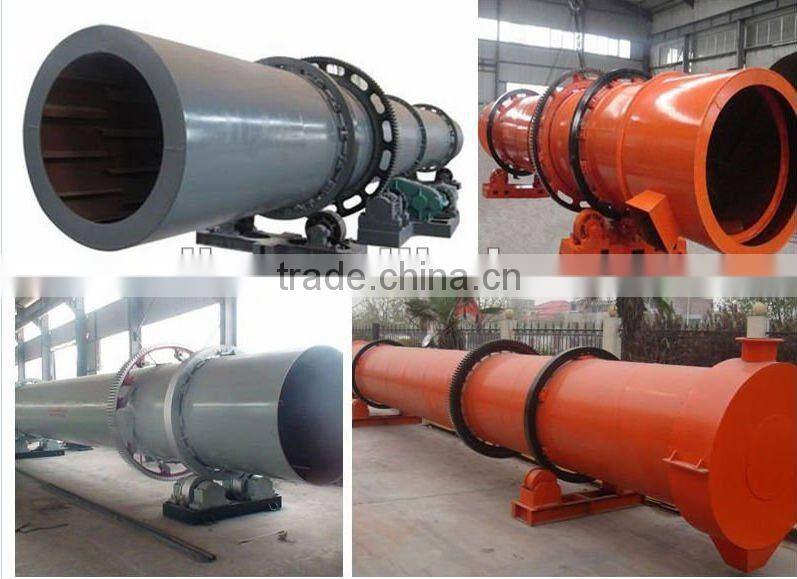

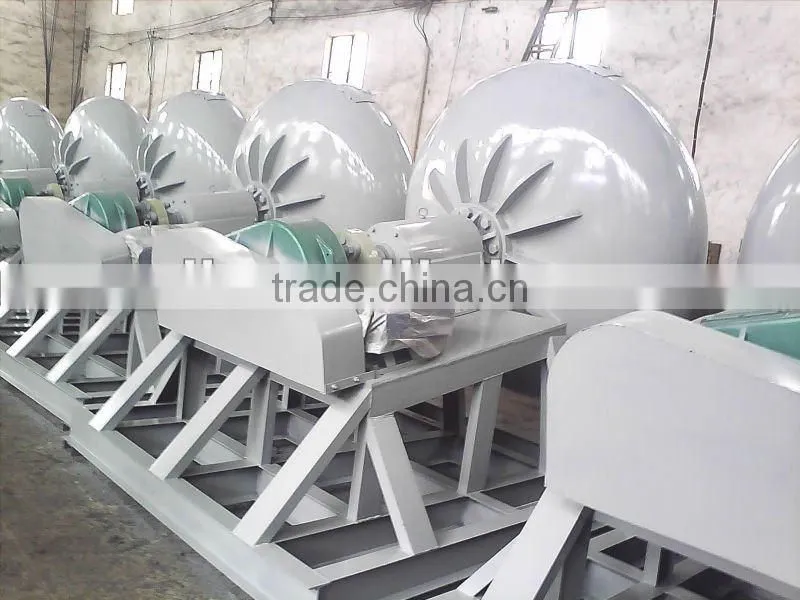

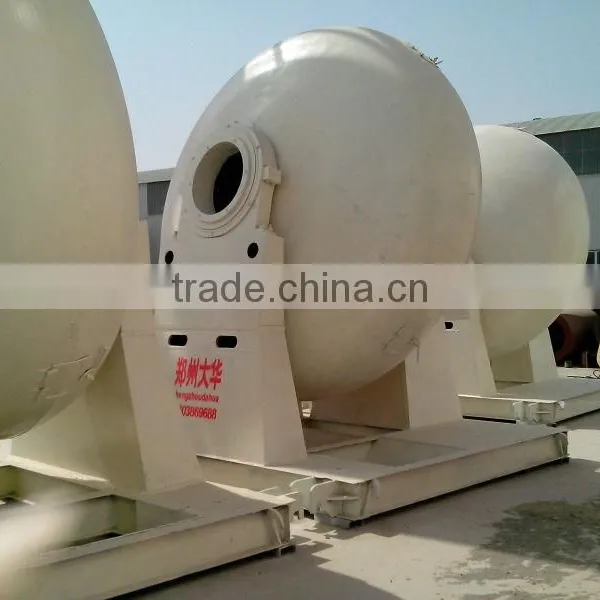

Picture for Ceramic Sand Making Machine:
