Specifications
Saw bar cutting machine1 .Raw material: serial steel
2.Working speed: 28times/minute
Cutting machine
1.Diameter:4-60mm
2.Speed:28times/minute
3.Scope: carbon steel, cold & hot round steel, screwed thread steel,flat/angle/square/scrap/deformed steel
Main data
No. | Item | Model | ||||
GQ40B | GQ40A | GQ50 | RC-25 | CYQ50A? | ||
1 | round bar | Φ4-40mm | Φ4-40mm | Φ4-50mm | Φ4-32mm | Φ4-50mm |
2 | corrugated bar | Φ4-32mm | Φ4-32mm | Φ4-32mm | Φ4-32mm | Φ4-32mm |
3 | flat steel | 50mm * 18mm | 50mm * 18mm | 50mm * 18mm | 50mm * 18mm | 50mm * 18mm |
4 | speed | 28times/min | 28times/min | 28times/min | 15times/min | 28times/min |
5 | stroke | 34mm | 34mm | 40mm | 40mm | |
6 | power supply | 3KW | 3KW | 4KW | 1.3KW | 7.7KW |
7 | whole weight | 380kg | 430kg | 380kg | 32kg | 900kg |
8 | packing size(mm) | 1510×615×967 | 1400×650×900 | 1400×650×900 | 565×230×345 | 2100×9300×1130 |

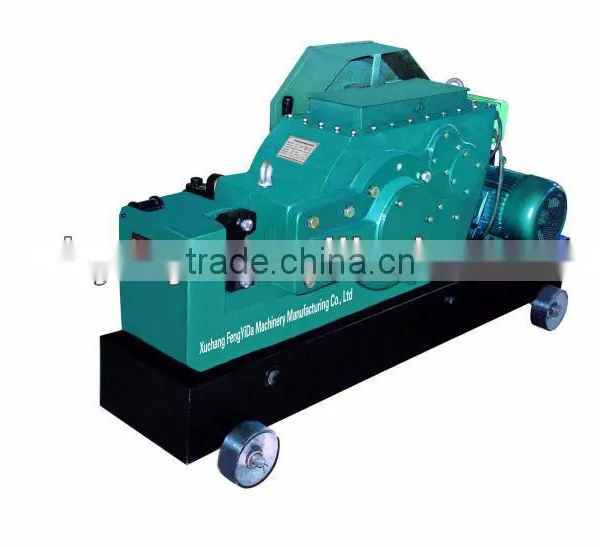

Picture showcase
Steel bar cutting machine fit to cut a lot of steels used in various concrete structures of construction projects, such as common carbon steel, hot and cold-rolled round steel, deformed steel bar, as well as flat steel, square steel and angle steel (special cutting tool is needed). It is capable of cutting the steels with a diameter of 6-40mm, and has a lot of advantages such as perfect lubricating performance, low power waste, simple operation process, high efficiency and convenient moving property.
1. 12 months guarantee
2. patiently response and enthusiastic service
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
1. What is vatage?
380V/50HZ/3phase, 220V/15V/440V is also availble
