angle steel bar cutting machine
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
- Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
- 60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
- Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
- 1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
- Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | HengYuan |
Model Number: | GQ40B,GQ40A,GQ50,RC25, GQ40B,GQ40A,GQ50,RC-25 | Voltage: | 380v ,50hz,3phase | Rated Power: | 3kw, 3kw |
Dimension(L*W*H): | 565*230*345mm-1510*615*967mm | Weight: | 430kg | Certification: | ISO,CE, ISO,CE |
Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
angle steel bar cutting machineBrand:HengYuan
power:3kw Speed:28times/min
cutting dia:6-50mm
HS Code: 8461500090

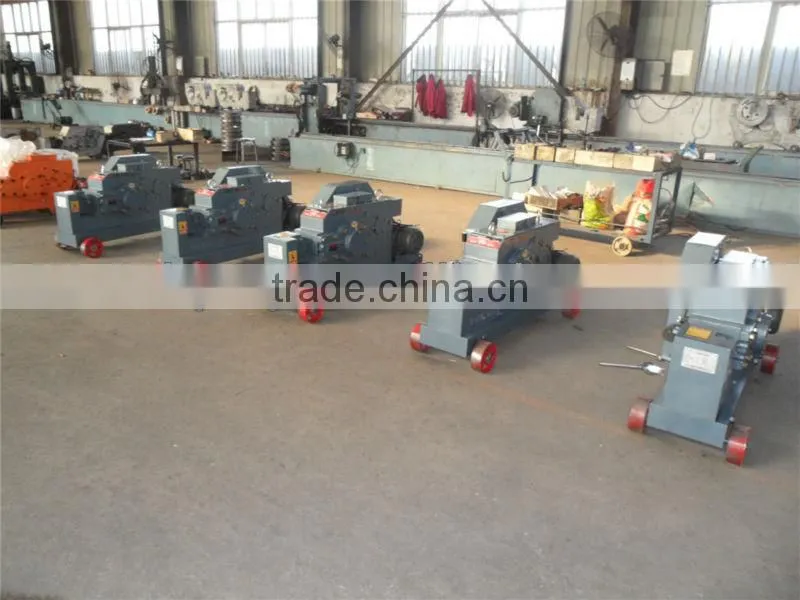

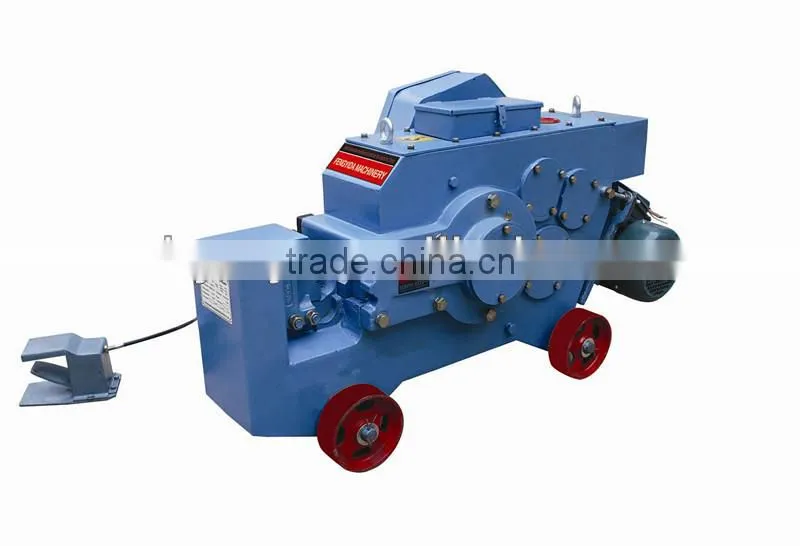

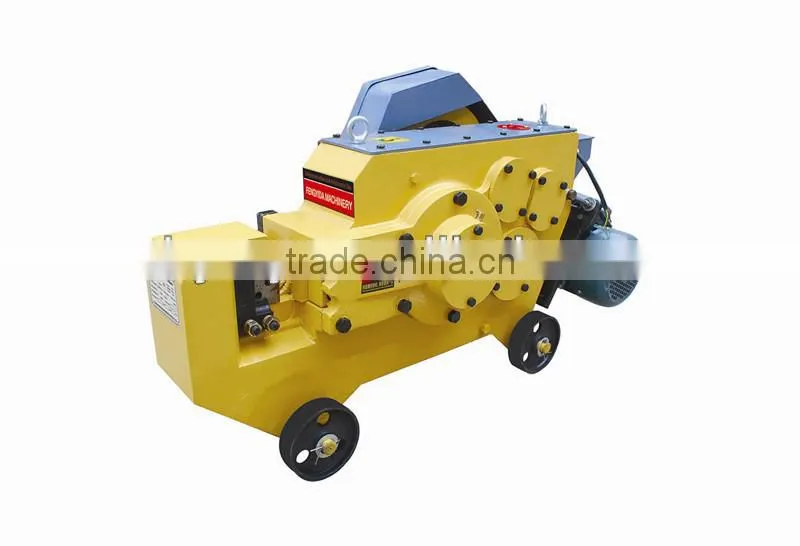

angle steel bar cutting machine
angle steel bar cutting machine fit to cut a lot of steels used in various concrete structures of construction projects, such as common carbon steel, hot and cold-rolled round steel, deformed steel bar, as well as flat steel, square steel and angle steel (special cutting tool is needed). It is capable of cutting the steels with a diameter of 6-50mm, and has a lot of advantages such as perfect lubricating performance, low power waste, simple operation process, high efficiency and convenient moving property.
Technical date of this machine
angle steel bar cutting machine | ||||||
No. | Item | Model | ||||
GQ40B | GQ40A | GQ50 | RC-25 | CYQ50A? | ||
1 | cutting size | Φ4-40mm | Φ4-40mm | Φ4-50mm | Φ4-32mm | Φ4-50mm |
2 | Φ4-32mm | Φ4-32mm | Φ4-42mm | Φ4-28mm | Φ4-42mm | |
4 | 50mm * 18mm | 50mm * 18mm | 50mm * 18mm | * | 50mm * 18mm | |
| speed | 28times/min | 28times/min | 28times/min | 15times/min | 28times/min |
5 | stroke | 34mm | 34mm | 40mm |
| 40mm |
6 | power supply | 3KW | 3KW | 4KW | 1.3KW | 7.7KW |
Shipping :wooden case
We can use CIF TERMS

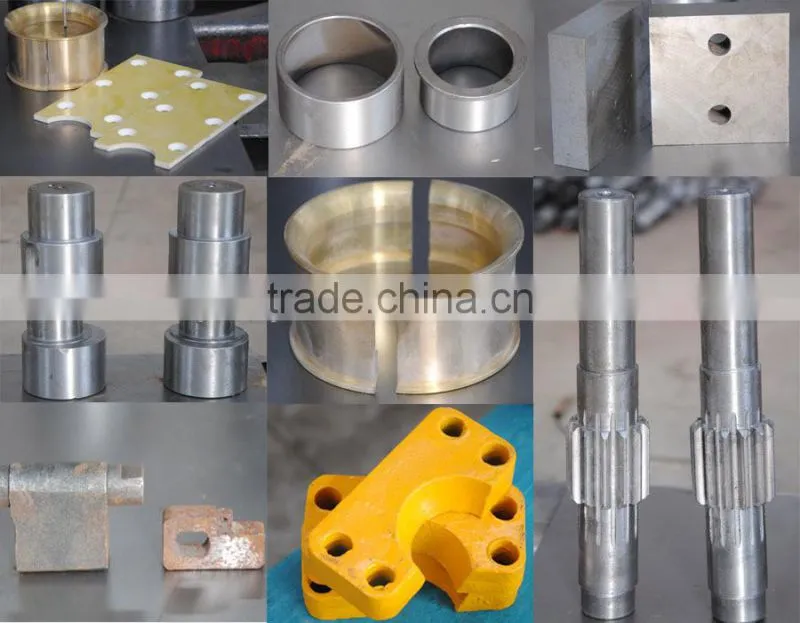

Main spare parts
A: Cut all steel material, like ordinary carbon steel, cold & hot round steel, screwed thread steel, flat/angle/square/scrap/deformed steel.
Q:What is the control mode?
A:hand clutch / foot pedal
Q:What is the application scope?
A:hot rolled steel,cold rooled steel,carbon steel.
Q: What is the mainy appled?
A: Steel bar cutting off machine mainly applied to buildings, Bridges, tunnels, power stations
large-scale water conservancy projects for steel fixed length cut off
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
We will send our engineer to your country install the machine ,good after sale service.Welome to visit our factory.
