Specifications
1.Model: HY-4, HY-16, HY-322.Capacity: 1000pcs/h, 2000-25000pcs/h, 3000-4000pcs/h
Paper Pulp Egg Tray Production Line
Advantage: 1.high efficiency 2. low failure rate 3.using less labor 4. simple operation
Brief introduction
Paper pulp tray has widely usage, it can pack eggs , fruit, beverage bottle filling , glass ceramics , handicrafts, small machinery , spare parts , electronic products , toys and other goods .
Egg tray mostly recycled pulp molding machines by repression, because the production process is simple, low cost, no pollution, known as the " green " packaging , egg tray usually pack eggs , duck eggs and others, its main role is to shock , easy to transport and carry. it is hot sale around the world.
Specification
Type |
Mold |
Capacity |
Power |
Plant area |
consumption |
Labor |
HY-4 |
4 |
1000pcs/h |
33.5kw |
More than 300 square meter |
2ton/24hours (coal) |
4-6 peoples |
HY-16 |
16 |
2000-2500pcs/h |
60kw |
More than 500 square meter |
2.2ton/24hours (coal) |
4-6 peoples |
HY-32 |
32 |
3000-4000pcs/h |
116kw |
More than 600 square meter |
2.5ton/24hours (coal) |
4-6 peoples |
Brief equipment of whole set egg tray machine
1. pulp molding system: hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet for pulping system
2. forming system: Rotary forming machine, Molds, Roots vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet for forming system
3. drying system: Conveyor, Blower, induced fan, Burner, Bellows, etc
4. packing system: baling machine
The whole set egg tray machines (1000pcs/h)
HY-4 , molding machine
HY-16, molding machine
HY-32, molding machine
A set of mold
Final product area ( drying by conveyor)
The layout of main process

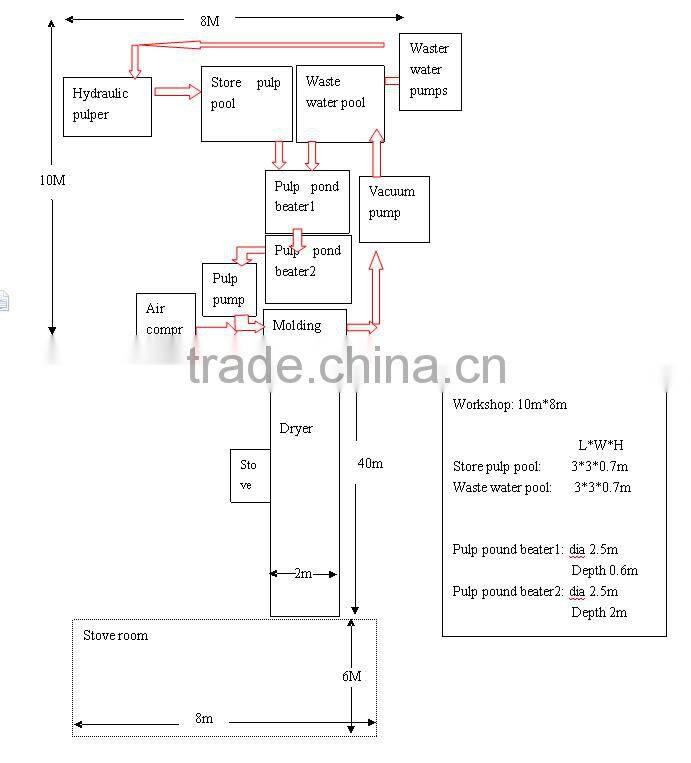

The layout of HY-4 processing (for reference)
Packing detail: Packed in containers or as request
Delievery detail: 30 days after receiving prepayment
A: The Seller will send two engineers to the buyer’s factory, they are responsible for the instruction of installing machine and training the operator until the machine working normally. All the expenses out of china (including the round-trip air tickets, foods and hotel, salary 70usd/day/enginner) should be borne by the buyer. The buyer should prepare onetranslator for our engineers to communication.
B: Forming machine warranty time: 12 month.
(not including the mould and quick-wear parts)
The seller will provide below quick-wear parts for free to buyer:
Proximity switch --10 units.
Solenoid valve –1 unit (10 leather packing)
Mold core –10 boxes
C: Within 3 months, if Vacuum pump, motors or Air compressor was broken because of the quality of machine itself, the buyer should send the problem part back to seller , the seller will provide the new one immediately. But as for the wrong operation of the workers, the seller will not be responsible for them.
D: After guarantee period the Seller will send engineer on the Buyer’s request. All the expenses of this engineer will be borne by the Buyer’s company, and service charge will be negotiated by the Buyer and the Seller.
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
1. How many kind of types of molding system?
There are three types molding system, HY-4 has one side with 4 pieces molds, HY-16 has four sides with 16 pieces molds, HY-32 has 8 sides with 32 pieces molds. the mold is changeable according to customer's requestion.there also have many kind of shapes for eggs, shoes, wine, electric product.
2. How many dryer methods?
There are three drying types: drying by natural wind, drying by brick coneyor, drying by metal squared dryer
