Characteristics
Coconut Shell Shisha Charcoal Briquette Machine
1.high capacity
2.low energy consumption
pact structur

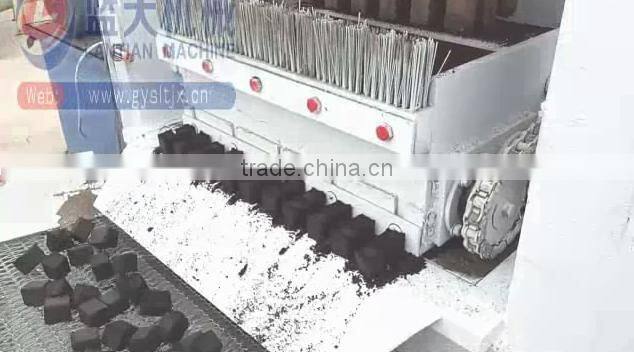

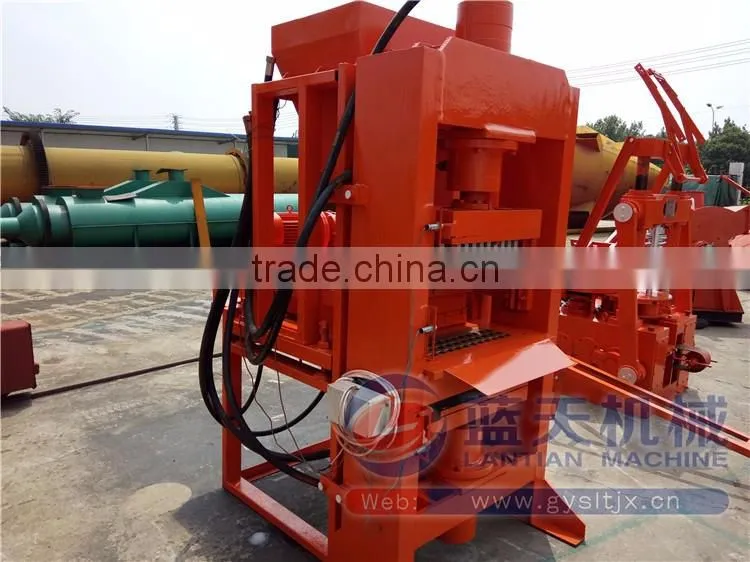

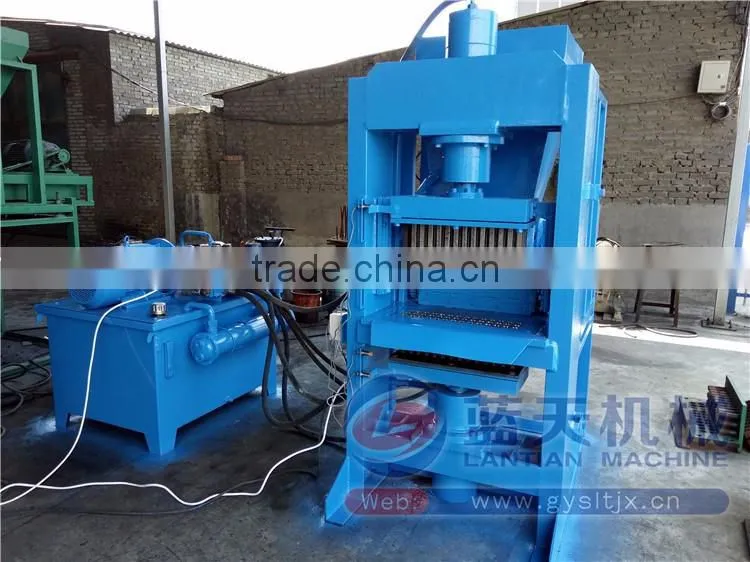

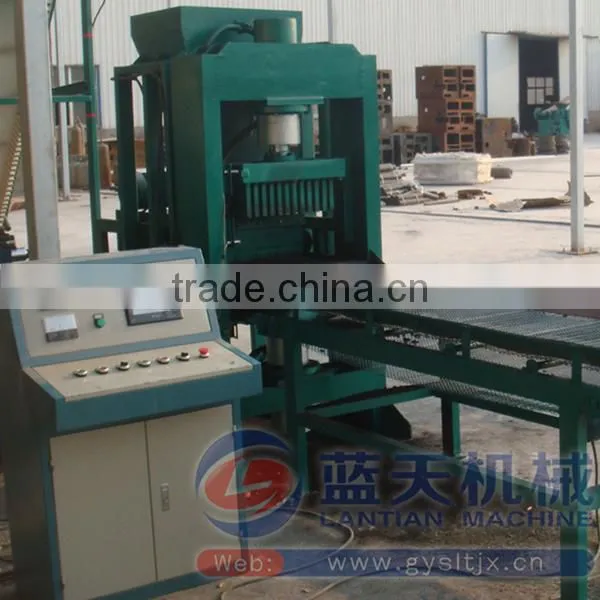

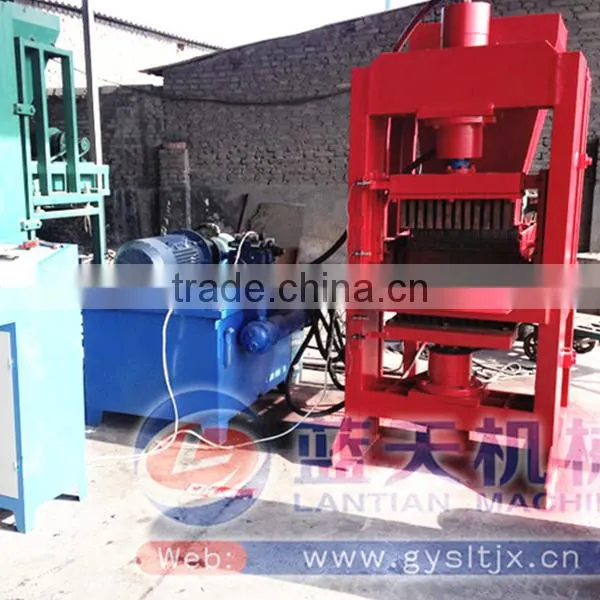

High Speed Coconut Shell Shisha Charcoal Briquette Machine
1.Introduce the machine
Coconut Shell Shisha Charcoal Briquette Machine is our latest patented product, because it has large pressure, and the pressure can be adjusted according to different raw materials, so it has good effect of molding, even some raw materialss are not easy to mold.
Coconut Shell Shisha Charcoal Briquette Machine can also press into good shapes.The whole machine includes main engine, electric control cabinet, hydraulic cylinder and outlet conveyor belt. For 20-43mm different shapes, it can press 9-48pcs/time, 8-20 times/min.
1) Frame: The whole frame includes cast iron bedplate, motor base. The frame is the main skeleton entity.
2) Transmission part: This part consists of motor power, belt gear, gear, transmission shaft.
3) Feeding part: This part consists of hopper, moving shaft.

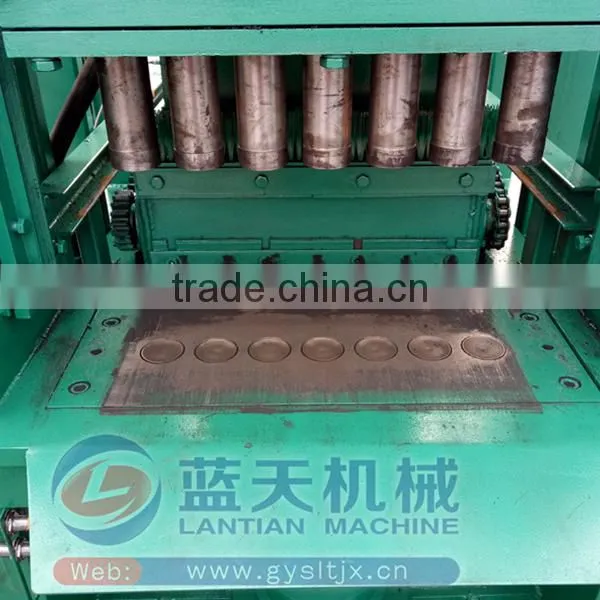

4) Punching part: Punching part is the most important in the whole Coconut Shell Shisha Charcoal Briquette Machine,it consists of beam, punch, shaping mold, moving plate etc. When the machine working,gear revolves then drives punch up and down , After shaping powder into different briquette.
5) Conveyor part: This part consists of transmossion rack, belt pulley, holder.
2.Features
(1) Automatic feeding and discharging system.
(2) Solid crank arms and strengthly pressing.
(3) We can customize the different molds for making different shaped briquettes.
(4) The mold can be easily changed and maintained.
(5) Buffer device for hydraulic pressure machine to avoide any damage of parts caused by overloading.
(6) This Coconut Shell Shisha Charcoal Briquette Machine can manually working or automatic working.
3.Main Parameter
| Model | LTM-9 | LTH-48 |
| Capacity |
11-16pcs/time 20-40times/min |
48pcs/time 8-20times/min |
| Motor | 7.5KW | 15+22+0.75KW |
| Diameter Of Briquette |
20-43mm(round) 20-40mm(cubic) |
20-43mm(round) 20-40mm(cubic) |
| Feeding materials | ≤3mm | ≤3mm |
| Pressure | 40-60tons(adjustable) | 40-150tons(adjustable) |
| Press Type | Mechanical Press | Hydraulic Press |
| Machine Size |
2500*950*1550mm (include conveyor) |
3500*2000*1800mm (include conveyor) |
| Weight | 1500KG | 2200KG |

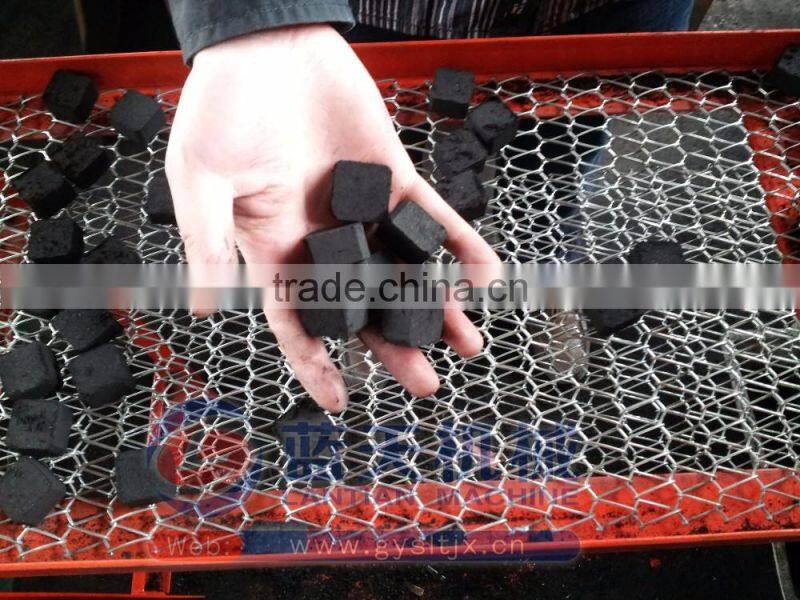

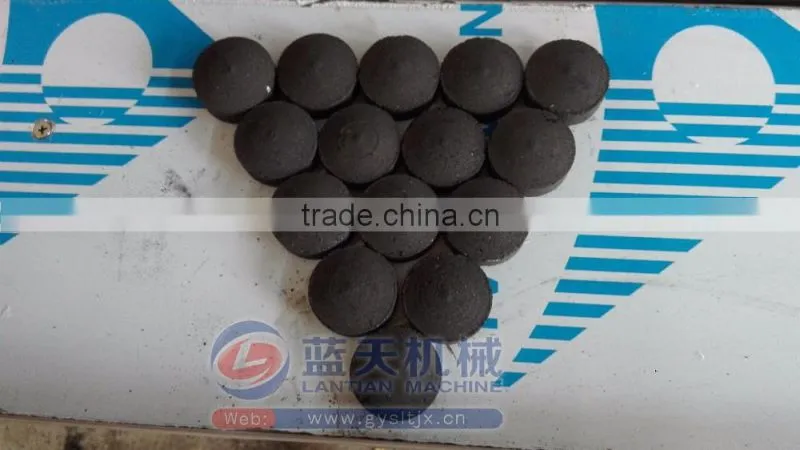

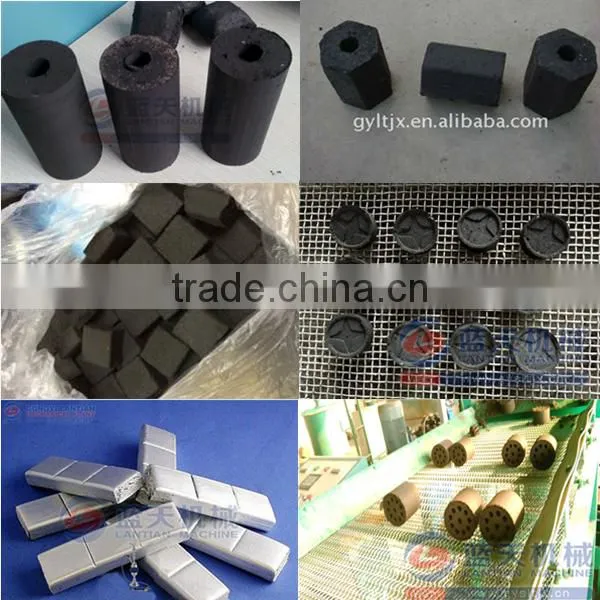

4.Show the sample
Size and shapes:
(1) Size: round: 20-43mm, square: 20-40mm
(2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
(3) The shape of briquettes can be customized.
1) Environmental production.
2) Long service life and large capacity.
3) Durable molds.
4) Factory direct sale, we are professional Coconut Shell Shisha Charcoal Briquette Machine manufacturer in China, and we has over 30 years making experience and ten years exporting experience.

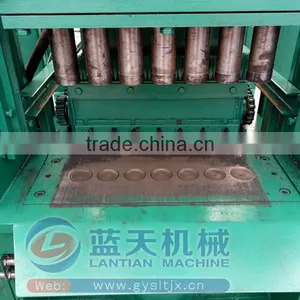

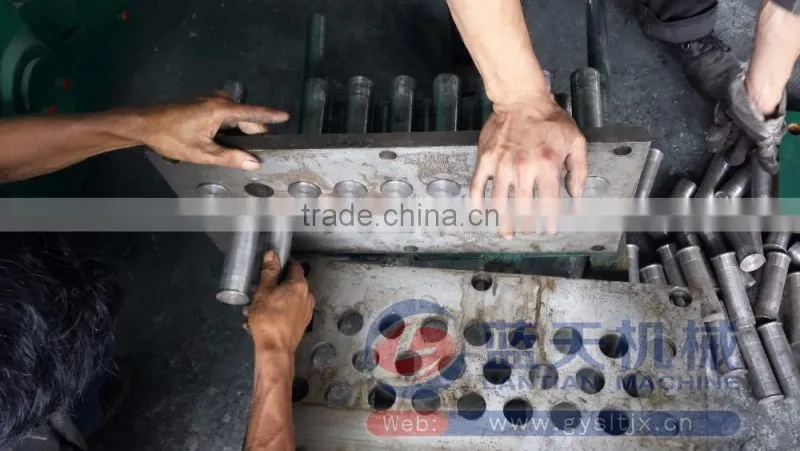

5.Show the molds
Coconut Shell Shisha Charcoal Briquette Machine can also process the pulverized coal, coking coal, charcoal powder, lignite and other difficult to molding materials, and pressed into shapes of cylindrical, hexagon rod polygon or hollow. It is primarily used in coal, building materials, chemical and other industries.

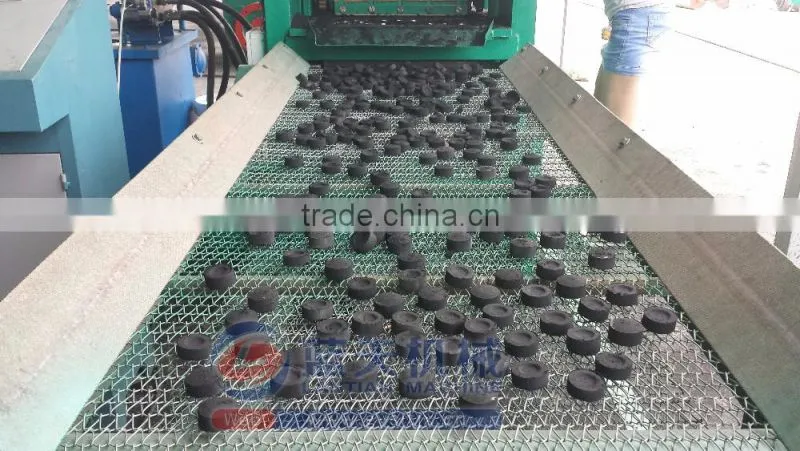

6.Production line
1.Crusher: Crush raw materials into powder ,less than 1 mm.
2.Mixer: Mix powder with natural binder evenly.
3.Coconut Shell Shisha Charcoal Briquette Machine: Make the powder into any shape you want.
4.Dryer: Dry up the final briquettes till their moisture less than 5%.

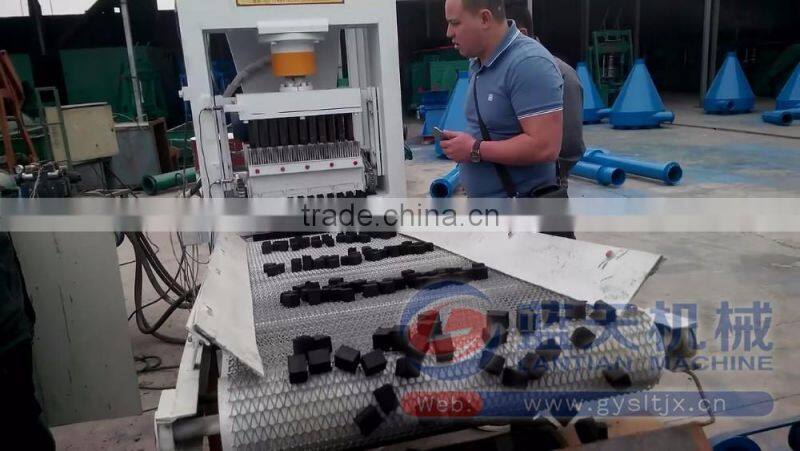

7.Customer visit our factory
We have also got the CE, ISO, SGS and other several patents.Our Coconut Shell Shisha Charcoal Briquette Machine are sold at home and abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan, Philippines, and other countries.
8.Packing and Shipment
9.Our service
Before the sales
1. According to the customer's requirement, provide the most suitable project design, process design and the purchase program.
2. We will guide customers to choose the best and economical machine, recover investment within short time and site inspection.
In the sales
1. Accompany you to check the working conditions of the Coconut Shell Shisha Charcoal Briquette Machine.
2. Lead to visit all of our machines.
3. Dozens of arrange delivery after received customer's advance payment.
After-sales
1. Engineers available to service machinery overseas to help you install, debug, build plant at the same time provide adhesive technology.
2. Guarantee the quality of equipment, when the equipment in the production have any questions we will timely solution for you.
10.Contacts information
11.Company Information
Lantian Mechanical Plant is a professional factory in producing coal,charcoal,biomass,shisha briquette machine and any other assistant equipments of briquette machine. Our factory was founded in 1980s.and through 30 years' development, our machines have earned good repulation in China, but also inforeign countries.
Our main briquette machine includes hookah charcoal powder tablet press machine, roller press briquette machine, pellet briquette machine, biomass briquette forming machine,, etc. Apart from all kinds of briquette machines, we also produce crusher, dryer, mixer, carbonization furnace, etc.
