Characteristics
Coal Dust Charcoal Powder Briquette Extruder Making Machine
1.Low price,High quality
2.Factory direct sale
3.Automatic operate
Low Noise And Sold Well Coal Dust Charcoal Powder
Briquette Extruder Making Machine

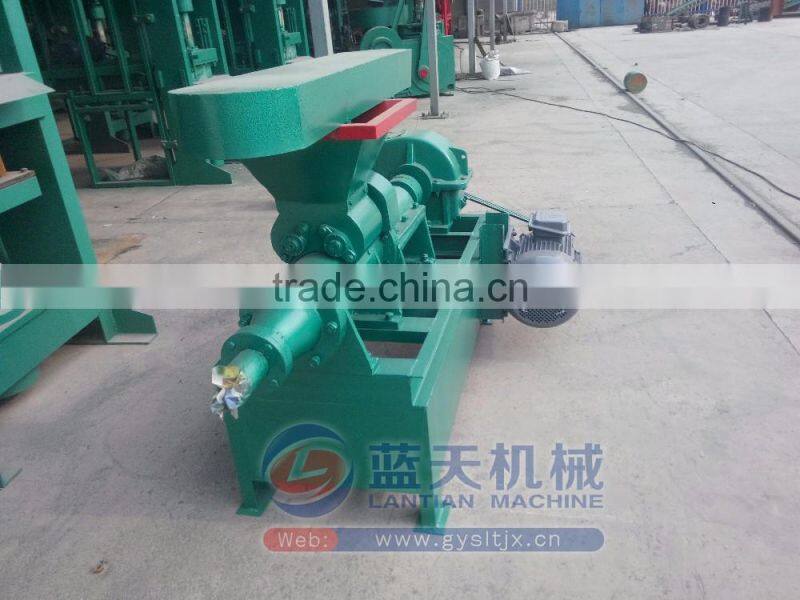

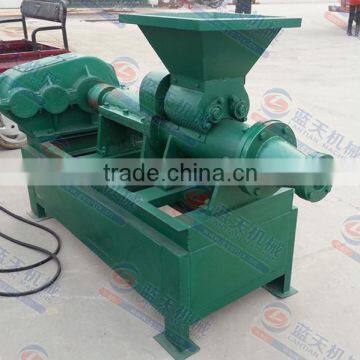

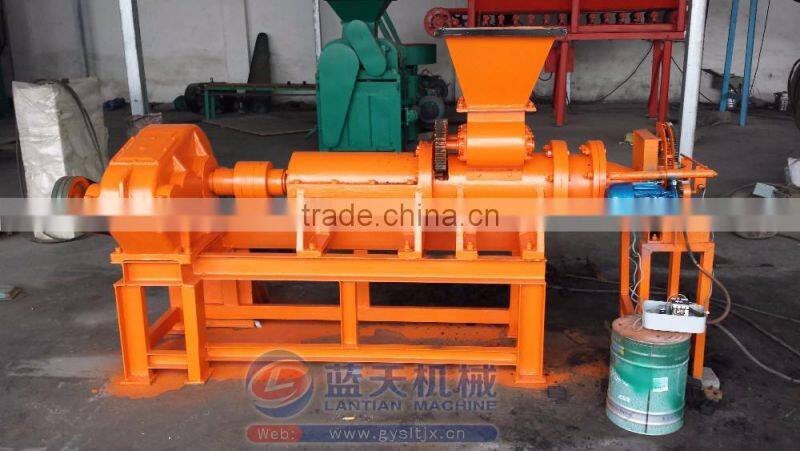

♠Show the machine
MBJ-140
MBJ-180
MBJ-360
Coal Dust Charcoal Powder Briquette Extruder Making Machine use the principle of screw extrusion to compress into cross-section, forming products are round or other shapes.The machine use variable pitch impeller, the coal powder to move forward, and coal powder is compressed.Through the front of the head of the round hole extrusion, the formation of coal rods,there are many round holes in the shape, there are a variety of coal rod shape.
The inlet particle size of materials must be less than 3mm.We have to add suitable binder for some kind of materials for shaping easily.The moisture of materials must be moderate, and the water content usually is 12%-15%.

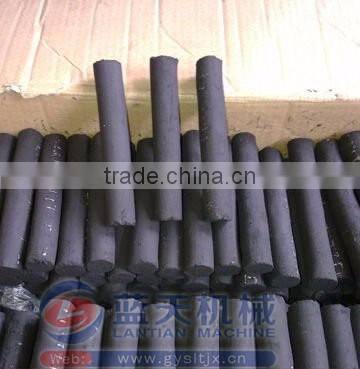

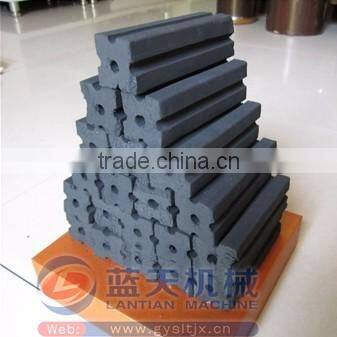

♠Show the sample
According to your own need to set the length of the product, cut off is ok .With a long burning time, smoke-free, tasteless advantages, can achieve automated assembly-line.Usually used in the production of hookah charcoal, BBQ, home heating, etc.
With our special binder, the outlet briquettes are of high density, esay shaping, smokeless, easy fire, long burning, etc.The outlet shapes can be round, rectangular, hexagonal, triangular etc.Smooth surface and convenient to store and transport.
Using of Coal Dust Charcoal Powder Briquette Extruder Making Machine can make full use ocoking coal powder in the production process don't need to addition lime, reducing the cost of fuel and improve the heat of coal, with high economic efficiency.In addition the device is small, do not need carbonization drying equipment, no steam, saving investment, also reducing the area.

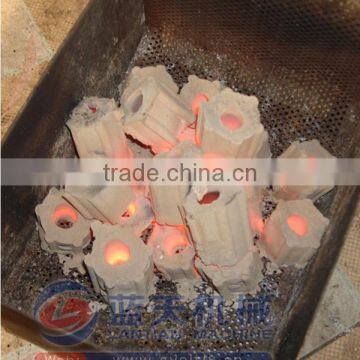

♠Burning
1.Coal Dust Charcoal Powder Briquette Extruder Making Machine is the use of the principle of screw extrusion, the modulation of fine coal powder has a certain strength of the predetermined shape of the coal rod molding equipment.
2.Hobbing machine with hard tooth surface reducer, small size, high carrying capacity.
3.Impeller with thicker blade design, Each part is made by wear-resistant materials, the use of time 4-5 times higher than ordinary materials, the mold can be easier changed and maintenanced.
4.Head and cylinder in the form of articulated, maintenance can be opened, the replacement of the internal impeller and tube liner is very convenient.
♠Detail information
1.Applicable to a wide range of materials,pressure can be adjusted according to different materials.
2.For different materials you can choose with binder or not, finished high purity, high molding rate, shape, integrity, smooth surface.
3.Specially designed auxiliary equipment, can realize automatic feeding, automatic discharge, save labor.
4.Can easily swap molds, through the exchange of molds can produce a variety of shapes of products, a multi-purpose machine.
5.High degree of automation, the entire production line can achieve more than one machine control, low labor intensity and long-term continuous operation and so on.
| Type | Capacity | Powder | Weight | Speed | Specification |
| MBJ-140 | 1-2t/h | 7.5-11KW | 600kg | 40-46r/min | 30-40mm |
| MBJ-180 | 2-3t/h | 18.5-22KW | 750kg | 39-60r/min | 30-60mm |
| MBJ-360 | 0.8-1.5t/h | 15+5.5+4KW | 800kg | 45-60t/min | 15-60mm |
The main shapes are: carbon rods (BBQ charcoal), spherical (BBQ, ignition carbon), hookah charcoal, we will provide you with first-class products and technology, while training a variety of carbonization technology.
♠Production line
1) Crusher: Using crusher to crush raw material into fine powder,less than 3mm.
2) Screw conveyor: Use screw conveyor to convey fine powder into wheel mixer.
3) Mixer: Use liquid mixer to make binder for fine powder.
4) Coal Dust Charcoal Powder Briquette Extruder Making Machine : Shaping fine coal powder into different coal briquettes.

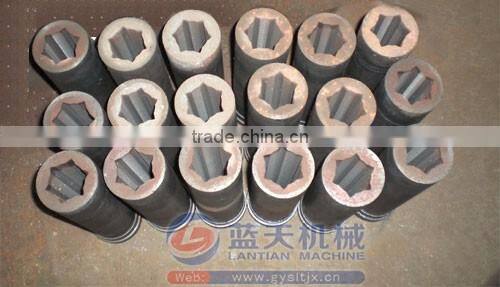

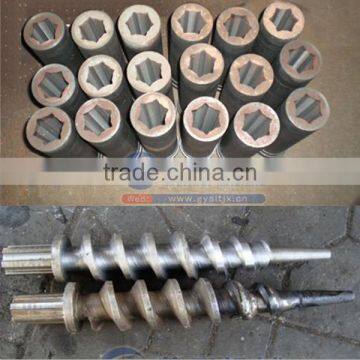

♠Show the molds

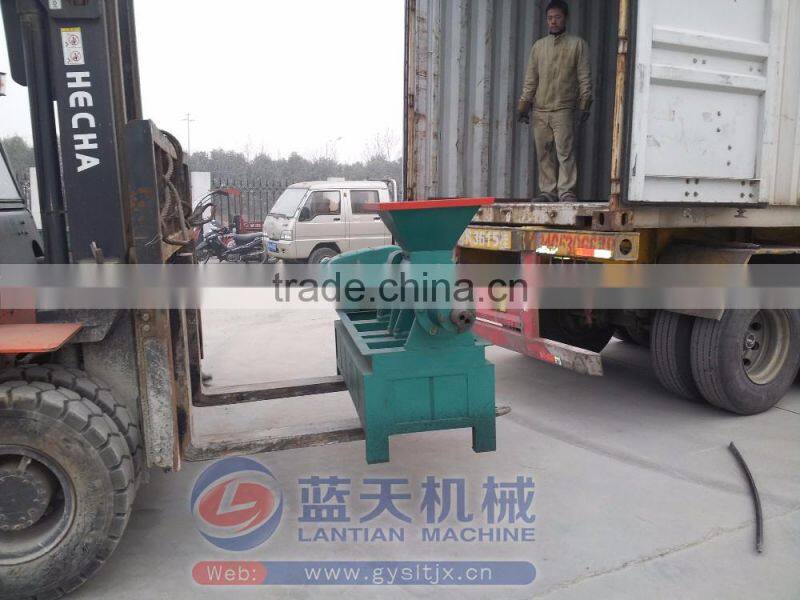

♠Shipment
In order to meet the different needs of different customers,our factory has designed different types of mold and all of the molds are produced by ourselves according to the customer's requirements,meanwhile the mold materials are use durable.
1. Before Sale: help you to set a purchase plan according to your requirement.
2. During Sale: accompany you to check the performance of the machine.
3. After Sale: Sent artisan to your place and help you with the installation.
♠Factory information
Gongyi Lantian mechanical plant was founded in eighty 's, whice is a company specializing in the production of coal equipment, charcoal equipment, drying equipment, processing equipment, set research and development, production, sale, import and export trade as a whole.
We established of a set of complete service system and experienced service team after 30 years of exploration.Free for customers planning field, flow chart of design and installation, to provide the most professional technical training, and send technicians to guide the field installation and debugging of the equipment.So far, the company has won eight national patents, long-term exchanges and cooperation with overseas countries, won a wide range of international market.
♠Contact informatiom
Welcome to visit our factory.
