High Output Wood Log Charcoal Carbonization Stove
| Model:LTA1-500 |
| Capacity:2000-3000kg/day for charcoal |
| Raw material :Coconut shell,hard wood, wood logs, palm shell,Corn cob,Bamboo and so on |
| Carbonized time:6-8hours |
| Cooling time:6-8hours |
| Function:Make charcoal from different raw material |
2.Struction
Full struction for High Output Wood Log Charcoal Carbonization Stove include 1 piece out stove, lifting frame, inner stoves, baskets,smoking tank or exaction smoke equipment |
|
|
|
3.Different raw material
| Wood log, peanut shell , tree branch, sawdust briquette, coconut shell, palm shell, bamboo, rice husk, sawdust and other nut shell or hard raw material. big size raw material suitable for Natural model stove,Air-flow model stove,Small size raw materia suitable for Continuous model stove |

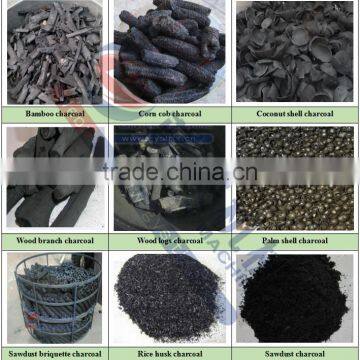

4.Final products
| Wood log charcoal, wood briquette charcoal, bamboo charcoal, coconut shell charcoal, palm shell charcoal,bamboo charcoal ,sawdust charcoal etc. |
5.Final charcoal use
|
Final Charcoal, can be used for BBQ ,Shisha, boiler heating, home heating, to make active carbon or other industrial usage Take coconut shell as sample |
|
6.Drawing for Wood Log Charcoal Carbonization Stove
|

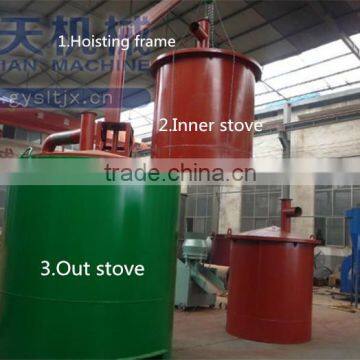

The whole machine includes one outer stove(Main furnace), three inner stoves(inner pot) and the 3 ton Lifting frame
When one inner stove finished carbonization, we will use the lifting frame to hoist the inner stove out from the outer stove, then let the inner stove natural cooling, at the same time, we can put another inner stove into the outer stove, which will save a lot of time, so the productivity increases a lot, it is the ideal choice for mass production of charcoal. |
|
|
7.Operation instruction
|
1.Installation 2.Preparation 3.Carbonization Ignite and start to carbonization, which is operated by carbonization technology. 4.After carbonization 5.Sealed to cool 6.Carbonization of circulation 7.Take out the carbonized materials |
High Output Wood Log Charcoal Carbonization Stove
| Model |
Capacitty (kg/Time) |
Carbonized time (hour) |
Weight (T) |
Temperature (Degree) |
Oversize (m) |
| Natural Model | |||||
| LTN-3 | 800-1000 | 14-16 | 3500 | 450-500 | 2000*2000*2000 |
| LTN-4 | 1000-12000 | 14-16 | 3500 | 450-500 | 2300*1600*2000 |
| LTN-6 | 1200-1500 | 28-30 | 4000 | 450-500 | 2600*2000*2000 |
| LTN-8 | 1800-2000 | 48-50 | 5000 | 450-500 | 3500*2000*2000 |
| Air-Flow Model (LTA and LTB) | |||||
| LTA-series | |||||
| LTA1-500 | 400-500 | 6-8 | 2800 | 550-600 | 1900*1900*2000X1 |
| LTA1-1000 | 500-800 | 8.0-10 | 3700 | 550-600 | 2000*2000*2000X1 |
| LTA2-1000 | 800-1000 | 8.0-10 |
4800 | 550-600 | 2200*2200*2200 X2 |
| LTA3-1000 | 2500-3000 | 8.0-10 |
5900 | 550-600 | 2200*2200*2200X3 |
| LTA4-1000 | 3200-4000 | 8.0-10 |
7000 | 550-600 | 2200*2200*2200X4 |
| LTB-series | |||||
| LTB3-1000 | 700-900 | 8.0-10 |
1900 | 550-600 | 5500*2200*2500 |
| LTB4-600 | 300-400 | 6.0-8.0 |
2500 | 550-600 | 3000*1300*2200 |
| LTB4-800 | 700-800 | 8.0-10 | 4000 | 550-600 | 4300*1700*2200 |
| LTB4-1000 | 1000-1200 | 10-12 | 5000 | 550-600 | 5100*1900*2200 |
| Continuous Model | |||||
| LTC-80 | 300-400 | 0.2-0.4 | 6500 | 450-600 | 1000*1000*8000 |
| LTC-10 | 400-600 | 0.2-0.4 | 7800 | 450-600 | 100*1000*10000 |
| LTC-12 | 500-900 | 0.2-04 | 8500 | 450-600 | 1000*1000*12000 |
8.Dfferent model for Wood Log Charcoal Carbonization Stove
Natural Model-LTN series
| Advantage | Cheaper price, easy opperate,suitable for start business and low capacity charcoal, the size of raw material for carbonized between 30mm-100mm |
| Disvantage | Low capacity(need long time to carbonized) |

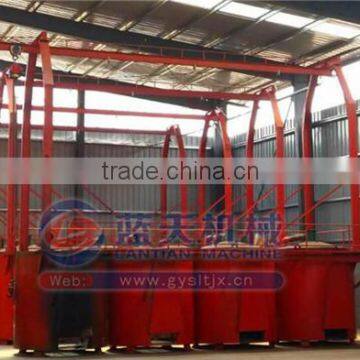

Air-flow Model LTA series
| Advantage | One out stove low capacity, but its can connected 2,3 or 4 together,get big capacity charcoal one time.carbonized time is short. |
| Disvantage | Expensive than natural model stove |
| LTA1-1outer stove, 3 inner stoves with 3 caps, 1-3 ton hoisting frame, 1smoking tank |
| LTA2-2 outer stove, 6 inner stoves with 6 caps, 1-5 ton hoisting frame ,1smoking tank |
| LTA3-3 outer stove, 9 inner stoves with 9 caps, 1-5 ton hoisting frame ,1smoking tank |
| LTA4-4 outer stove, 12 inner stoves with 12 caps, 1-5 ton hoisting frame ,1smoking tank |
Air-flow Model LTB series
| Advantage | inside of the stove, has 3 or 4 inner stove connect together,easy operate,carbonized time short |
| Disvantage | its has big CBM, but effective CBM for charcoal is small |
Continuous Model LTC series
| Advntage | Big capacity for charcoal, its continuous model,every mint has charcoal come out. |
| Disvantage | Need big place to install the full product line,and expensive. just suitable for small powder raw material, such as rice husk, sawdust |
| Single machine will packed by wood case, whole product line load by plactic or In ers will fixed the machine by iron line. |
|
Every week, we have different customers visit factory,chat business in the office, test machine in the workshop. |
|
Gongyi Lantian Machanical Plant was built at 1980s, more than 30 years manufacturer experience.
Our factory mainly produce Coal Charcoal briquette machine,Shisha Hookah briquette machine,Hydraulic press machine,Ball press machine,Biomass extrude machine,Charcoal extrude machine,Carbonized stove,Carbonized stove and other related machine.such as Crusher,Mixer, Conveyor,Feeder.
We help customers choose and design the best quality product line for different type machine.our machine Sold at home and abroad,supply those certifications:CE.ISO9001,CO,Form E,COC,CIQ,to help customer from different country custom clearance. |
|
| Sales manager | Sunshine Yu |
| Phone | 0086 15038021962 |
| 1054121651 | |
| Whatsapp/Wechat | 0086 15038021962 |
| Website | http://gyltjx.en.china.cn |
