Round ball shape coke powder briquette press machine powder compress machine

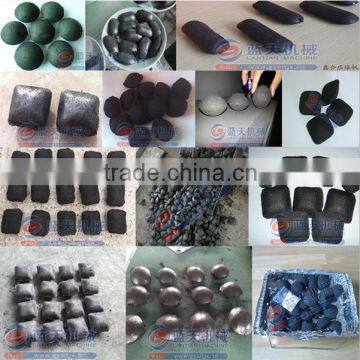

(1) Shape: pillow-shaped ball,egg-shaped ball,oval-shaped ball,circle-shaped ball,square-shaped
ball,columnar-shaped ball,banding-shaped ball,cake-shaped ball,etc.
(2) Size: can be 20-60mm or just as your requirements.
(3) Characteristics: the product is processed into high density,combustion time is long,non-
toxic,smoke-free,etc.
(4) Moisture: 9-12%,if higher than this,dryer is needed.
2. Brief indroduction of coke powder briquette press machine powder compress machine

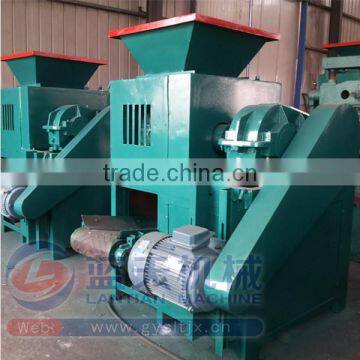

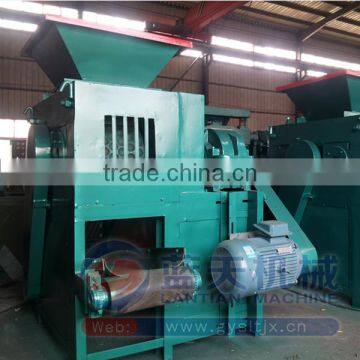

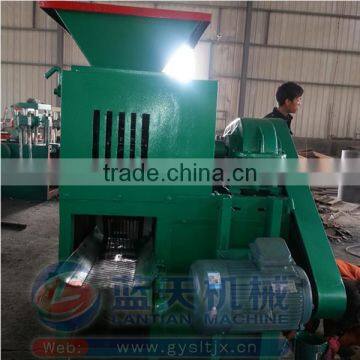

Coke powder briquette press machine powder compress machine has two or four rollers to press coke powder into various shapes. Raw materials can be coal powder,charcoal powder,carbon powder,gypsum powder,refractory powder,fertilizer powder,limestone powder etc.Final briquette size will be 20-60mm,which can be customized.
3. Full production line of coke powder briquette press machine powder compress machine
(1) The coke powder size need to be less than 3mm, if the size bigger than 3mm, you need to crush the coke less than 3mm.
(2) The coke powder moisture need to be controlled between 10-12%.
(3) Using the conveyor to connect different machine,save work.
(4) Make the binder ,the binder can make ball briquettes easy to burn.
(5) Let the binder with the coke powder together, smooth surface and long burnning time.
(6) Using ball press machine to perss the shape you want.
4. Main parameter of coke powder briquette press machine powder compress machine
| Model | Motor(kw) | Capacity(t/h) | Weight(t) | Max Dia(mm) | Oversize(mm) | |
| Coal | Charcoal | |||||
| YQJ-290 | 5.5 | 1-3 | 1-2 | 0.6 | 30 | 1.6*1.6*1.5 |
| YQJ-360 | 7.5-11 | 4-6 | 2-4 | 1.5 | 40 | 1.8*1.8*1.7 |
| YQJ-450 | 11-13 | 6-8 | 4-6 | 1.8 | 50 | 2.0*2.0*2.1 |
| YQJ-650 | 22-25 | 8-10 | 6-8 | 2.9 | 60 | 2.3*2.3*2.5 |
5. Working priciple of coke powder briquette press machine powder compress machine
Coke powder briquette press machine powder compress machine through reducer simultaneously transmitted the coke powder to two pressure rollers and made them rotated in opposite directions. In two pressure rollers rotation,coke powder naturally enter into the ball molds on pressure roller and materials pressure vary from small to large with the rotation of the pressure roller. When coke powder is rotated to two rollers line contact points,materials pressure has reached a peak. Under enormous pressure,the coke powder are suppressed into finished ball.
6. Structure of coke powder briquette press machine powder compress machine
(1)The feeding part: make the coke powder feed to rollers evenly.
(2)Speed reducer:control the speed
(3)Electrical motor:providing the powder.
7.The feature of coke powder briquette press machine powder compress machine
Coke powder briquette press machine powder compress machine also named ball press machine,coal ball forming machine,charcoal ball moulding machine,etc. Our factory can provide various kinds charcoal briquette machine for making different kinds charcoal briquettes,the shape and size both can be customized according to customers special requirement. Small cubage and easy for transport,adopt high-speed,high-frequecy stamping technique,ensure the stability of the molding.
8.The application of coke powder briquette press machine powder compress machine
Coke powder briquette press machine powder compress machine is mainly used to press the coke powder,coal powder,different charcoal powder,metal powder,carbon black powder, gypsum powder,refractory powder,fertilizerpowder,limestone powder etc. This machine use to press powder materials that are hard to be shaped, and can save energy and product the environment and the final products are convenient to be transported,thus improving the utilization of the waste materials and have excellent economic and social benefits.
Before the sales
(1) According to the customer's requirement,provide the most suitable project design,process design
and the purchase program.
(2) We will guide customers to choose the best and economical machine,recover investment within
short time and site inspection.
In the sales
(1) Accompany you to check the working conditions of the coke powder briquette press machine powder compress machine.
(2) Lead to visit all of our machines.
(3) Dozens of arrange delivery after received customer's advance payment.
After-sales
(1) Engineers available to service machinery overseas to help you install,debug,build plant at the
sametime provide adhesive technology.
(2) Guarantee the quality of equipment,when the equipment in the production have any question we
will timely solution for you.
We have also got the CE, ISO, SGS and other several patents.Our machines are sold at home and
abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South
Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan,
Philippines, and other countries.
Through 30 years of development and technology innovation, Lantian Mechanical Plant has been
developped to a professional manufacturer set design, manufacture, after-sale service as a whole. In
order to meet the different requirements of customers, we designed many types of charcoal process
machines, such as charcoal/coal briquette machine, shisha charcoal tablet machines, charcoal
extruder machines, biomass charcoal briquette machines and the assistant equipments.
